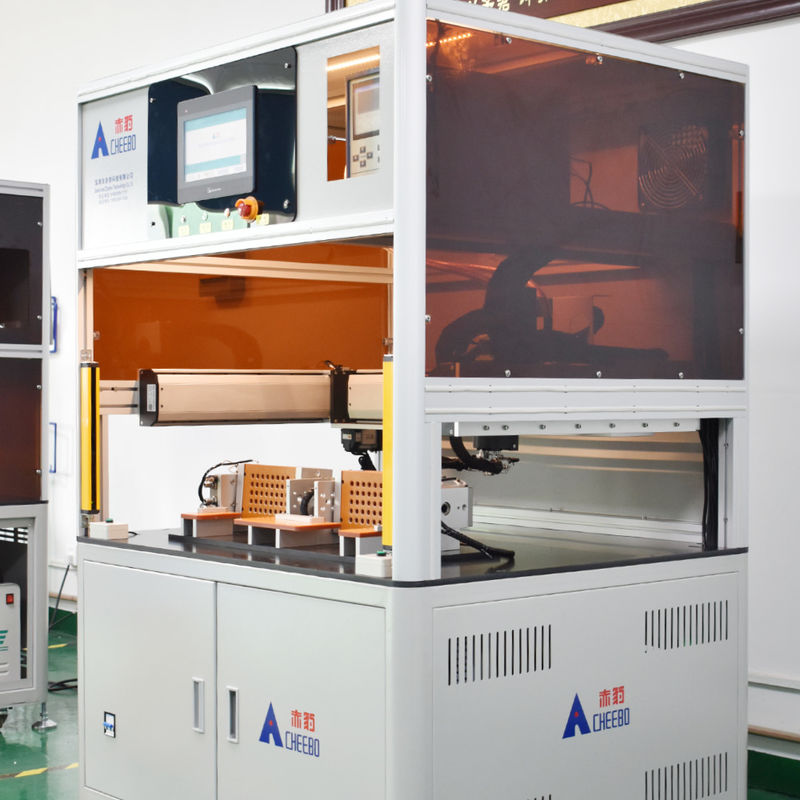

Flip Fixture Type Cylindrical Battery Spot Welder 18650 Automatic Spot Welder
● It adopts welding fixture design that can be automatically flipped. After the A-side welding is completed, it can be automatically flipped to the B-side welding without manually flipping the fixture.
● The welding head can be rotated 135°, which is suitable for welding irregularly shaped nickel sheets, effectively avoiding needle sticking phenomenon during welding.
● Install grille protection devices on both sides to ensure the safe operation of the equipment.
● The explosion welding and virtual welding equipment will automatically alarm, and the automatic area repair welding and single point repair welding will be manually adjusted.
● Using HIWIN module, high precision, low noise, smooth sliding and durable.
● Using Panasonic servo, fast welding speed and high precision.
● High-definition LCD touch screen, man-computer interaction interface, simple and convenient operation.
● Independent development of various automatic intelligent systems, convenient equipment operation, help improve production efficiency.
● With energy switching function, production counting function, welding pin compensation function, manual debugging function, etc. It can assist in the intelligent operation of the equipment.
● Energy switching function, can store 4 groups of energy modes, different materials automatically switch different welding energy.
● Production counting function, set the production quantity, complete the output automatic shutdown of the welding pin compensation function, set the number of welding pins, and automatically remind the welding pin maintenance after the number of times.
● Manual debugging function, you can fine-tune the welding head for each point and save the spot welding parameters (it is convenient to modify the coordinates of the welding joint), or you can use the one-key correction function to adjust.
● Manual programming, CAD drawing, import spot welding path, and fast realization of programming. Easy to learn, production line workers are fully competent.
● Aluminum alloy structure, electrostatic powder spraying process, anti-scratch, anti-rust, anti-static.
● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve production safety factor.
The equipment is suitable for fully automatic single-sided spot welding of 18650, 21700, 26650, 32700 and other kinds of cylindrical battery cell
combinations. It is suitable for the production of NB/Power Tool/Gardening Tool/High Power/Storage Power Station Battery/Electric
Motorcycle/Electric Vehicle and other modular lithium battery pack spot welding, and can be used with the lithium battery pack production line.
This equipment is a multi-axis control machine developed by modern automation expert technology, with precision transmission and motor control
mechanism, self-propelled travel mechanism, effective real-time control of the processing of automated production equipment.
1. Y axis, X axis, A axis, U axis coordinate parameters
2. Spot welding power supply parameter setting
3. Spot welding pressure, stroke adjustment
4. Spot welding times set
5. Needle service life setting
6. Spot welding spacing setting
7. Spot welding mode setting
|
Comprehensive time limit
|
3200PCS/H
|
|
Equipment weight
|
350KG
|
|
Weld thickness
|
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
|
|
Device power
|
220V50/60HZ
|
|
Equipment power
|
2KW (including power supply)
|
|
Equipment travel
|
170*100 (mm) about 45 18650 cells(One work station)
|
|
Power consumption
|
0.8KW in busy time, 0.2KW in idle time
|
|
Way of exercise
|
automatic continuous
|
|
Electrode material
|
Alumina copper
|
|
Cooling method
|
Forced water circulation cooling
|
|
Dimensions
|
1000*1200*1750(mm)
|
|
Application scenarios
|
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools
|
Function Introduction
1. Hd touch screen
Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.
2.Transistor welding power supply
Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

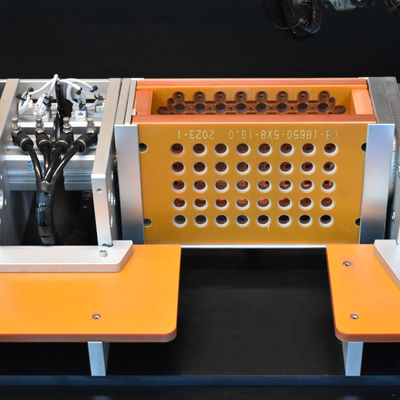

3.Double station rotating platform
The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Our products are sold all over the world, you can rest assured.
