Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use

Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use

  • Highlight

    Multifunction Automatic Battery Spot Welding Machine

    ,

    21700 Battery Cell Welding Machine

    ,

    Multifunction Battery Cell Welding Machine

  • Welding Speed
    3800PCS/H(Max)
  • X-axis Travel
    170MM (simplex)
  • Y-axis Travel
    100MM (simplex)
  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Platform Load
    35KG (Max)
  • Frame Material
    Aluminum Alloy
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-1710
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use

Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use

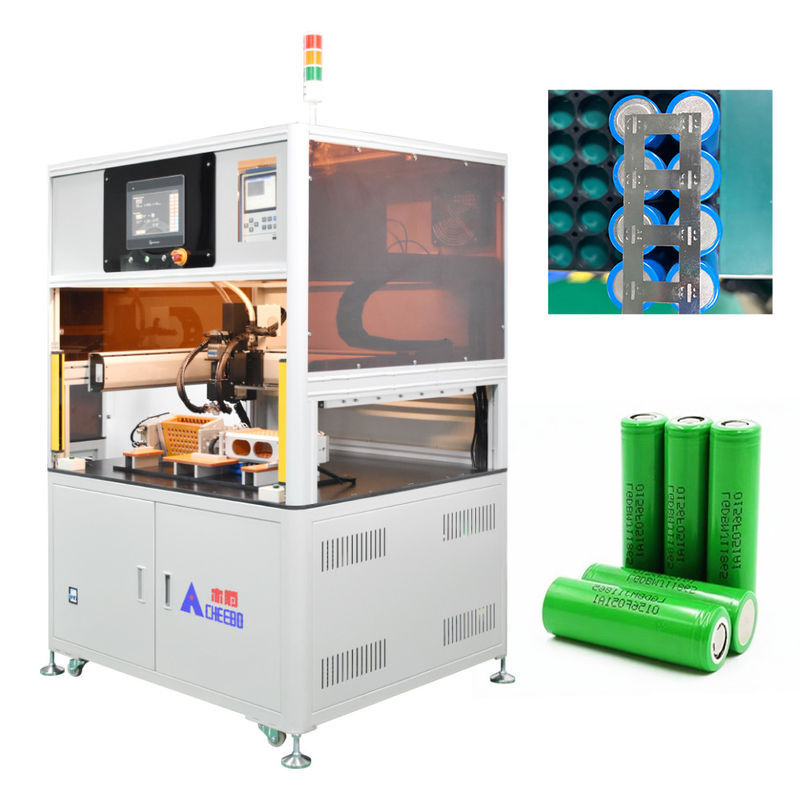

Application scope of the product



The equipment is suitable for fully automatic single-sided spot welding of various cylindrical cell combinations such as 18650, 21700, 26650,



32700, etc. It is suitable for the production of NB/Power Tool/Gardening Tool/High Power/Energy Storage Power Station Battery/Electric



Motorcycle/Electric Vehicle and other modular lithium battery pack spot welding use, and can be used with lithium battery pack production line.



This equipment is a multi-axis control machine developed by modern automation expert technology, with precision transmission and motor control



mechanism automatic walking mechanism, effective real-time control processing of automatic production equipment.



Technical specification
Comprehensive time limit
3200PCS/H
Equipment weight
350KG
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
220V50/60HZ
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method
Forced water circulation cooling
Dimensions
1000*1200*1750(mm)
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools



Equipment introduction



● The welding fixture is designed to be automatically turned over so that after the A side is welded, it can be automatically turned over to the B side without the need to manually turn over the fixture.


● The welding head can be rotated 135°, which is suitable for welding irregularly shaped nickel pieces and effectively avoiding needle staining during welding.


● Grid protection device is installed on both sides to ensure safe operation of the equipment.


● Fry welding and false welding equipment will automatically alarm, automatic area fill welding, single point fill welding manual adjustment.


● Adopting HIWIN module, high precision, low noise, smooth sliding and durable.


● Adopt Panasonic servo, fast welding speed and high precision.


● High-definition LCD touch screen, human-machine interaction interface, easy and convenient operation.


● Independent development of various automatic intelligent systems to facilitate equipment operation and help improve production efficiency.


● With energy switching function, production counting function, weld pin compensation function, manual debugging function, etc. It can assist the intelligent operation of the equipment.


● Energy switching function, 4 groups of energy modes can be stored, and different welding energy can be automatically switched for different materials.


● Production count function, set the production quantity, automatic stop when the production is completed, pin compensation function, set the number of times the pin is welded, and automatically remind the maintenance of the pin when the number is reached.


● Manual debugging function, you can fine-tune the welding head for each point and save the spot welding parameters (for easy modification of the coordinates of the welding point), or use the one-touch correction function for adjustment.


●Manual programming, CAD drawing, import of spot welding paths, and fast programming. Easy to learn and fully competent for production line workers.


● Aluminum alloy structure, electrostatic powder coating process, anti-scratch, anti-rust and anti-static.


● Imported acrylic protection plate, beautiful and elegant, strong sense of technology, intuitive operation, improve production safety factor.



Function Introduction



 1. Precision servo welding head

The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.



Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use 0

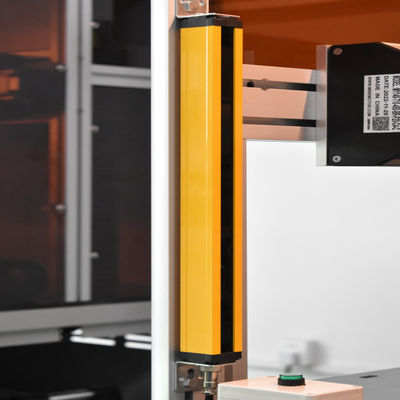

 2. Safety grating protection

Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.



Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use 1



 3. Welding head constant temperature cooling system

Water cooling cycle heat dissipation, instantaneous high current welding, always maintain a constant temperature, effectively reduce the loss of welding needle, reduce the impact on welding quality, improve the welding effect



Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use 2

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Multifunction Automatic Battery Spot Welding Machine Cylinder Cell Use 3



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
