Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine

Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine

  • High Light

    Multifunctional Automatic Battery Spot Welding Machine

    ,

    Fixture Turnover 18650 Welding Machine

    ,

    Multifunctional 18650 Welding Machine

  • Welding Head Features
    Rotary Welding
  • Driving Mode
    Pneumatic
  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Working Principle
    Resistance Welding
  • Simplex Welding Stroke
    170MM*100MM
  • Warranty Period
    3 Year
  • Place of Origin
    Guangdong, China
  • Brand Name
    cheebo Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-1710
  • Minimum Order Quantity
    1 set
  • Price
    EGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden cases
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10Set/Sets per Week

Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine

Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine

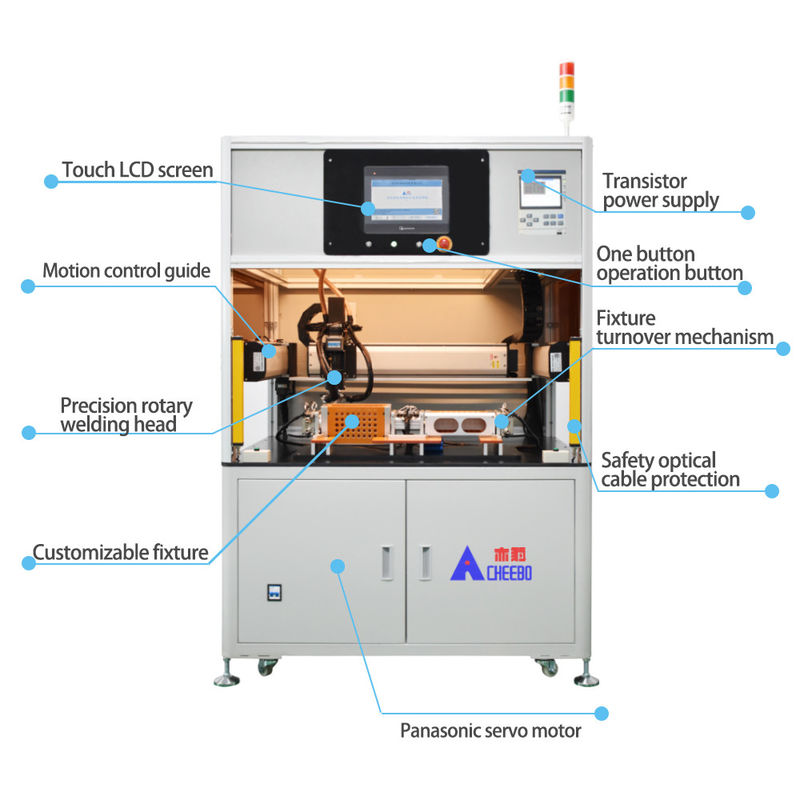

Equipment introduction

​​● The CBFZ-5545 welding fixture can automatically rotate, and after welding is completed, it can automatically flip the A-side to the B-side for welding, without the need to manually flip the fixture.


​​● The welding head can rotate by 135 °, suitable for welding special-shaped nickel sheets and effectively avoiding needle sticking during the welding process.


​​● Adopting Panasonic servo, welding speed is fast and accuracy is high.


​​● Install grating protection on both sides to ensure safe operation of the equipment.


​​● Automatic alarm for virtual welding equipment, manual adjustment for automatic zone repair welding, single point repair welding.


​​● Adopting Taiwan's silver screw guide rail module, high-precision, low noise, smooth sliding, and durable.


​​● High definition LCD touch screen, interactive human-machine interface for easy and convenient operation.


​​● Manual programming, CAD mapping, import spot welding paths, and quickly achieve programming. Easy to learn, production line workers are fully competent.


​​● Independently developing various automated intelligent systems to facilitate device operation and help improve production efficiency.


​​● Equipped with energy switching function, production counting function, welding needle compensation function, manual debugging function, etc.


​​● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static. Imported acrylic protective board, beautiful and elegant with strong sense of technology, visual operation to improve production safety factor.

Technical specification

Comprehensive time limit
3200PCS/H
Equipment weight
350KG
Weld thickness
0.3mm(More than 0.2 nickel pieces need to be slotted and dotted)
Device power
220V50/60HZ
Equipment power
2KW (including power supply)
Equipment travel
170*100 (mm) about 45 18650 cells(One work station)
Power consumption
0.8KW in busy time, 0.2KW in idle time
Way of exercise
automatic continuous
Electrode material
Alumina copper
Cooling method
Forced water circulation cooling
Dimensions
1000*1200*1750(mm)
Application scenarios
Mass welding of cylindrical batteries, welding of special-shaped nickel sheets for power tools

Function Introduction

 1. Double station rotating platform

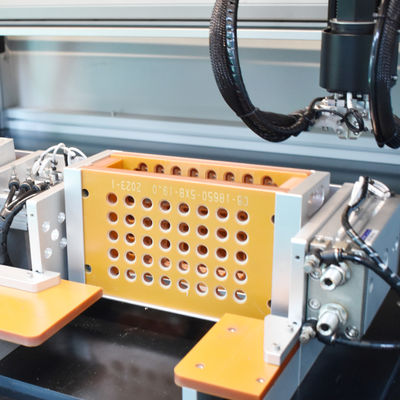

The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.



Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine 0



 2. Safety grating protection

Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.



Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine 1



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine 2

Application case

1.Energy storage battery pack           2.Electric bicycle battery pack           3.Power tool battery pack



Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine 3        Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine 4         Multifunctional Fixture Turnover Automatic Battery Spot Welding Machine 5
