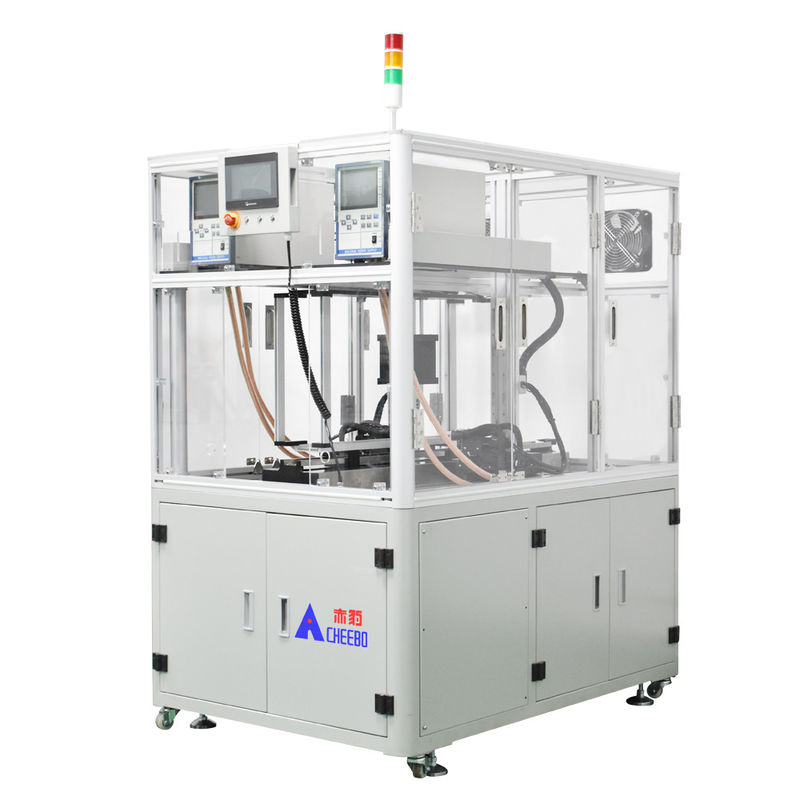

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric

  • High Light

    Electric Automatic Battery Spot Welding Machine

    ,

    Professional Battery Spot Welder 2KW

    ,

    Electric Professional Battery Spot Welder

  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Voltage
    220V50-60HZ
  • Warranty
    3 Years For The Core Parts,1 Year For The Whole Machine
  • Welding Pressure
    5KG/F (adjustable)
  • XY Shaft Welding Stroke
    400MM*600MM
  • Dimensions
    1400*1000*1680MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric


Equipment introduction

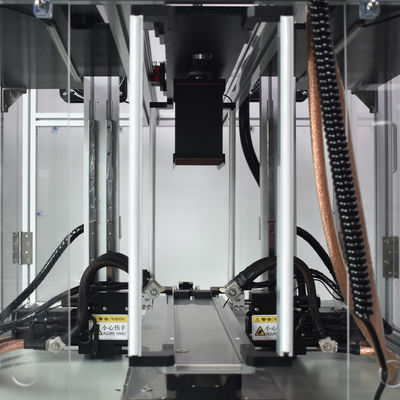

​​● CHEEBO CBMN5-6040 lithium battery spot welding machine adopts double-sided simultaneous spot welding, which eliminates the need for connecting gas sources for more efficient production. At the same time, it also avoids fluctuations during welding caused by unstable gas source pressure, with fast welding speed and high accuracy.


​​● Suitable for welding and assembling power battery packs with nickel plates below 0.3MM.


​​● Adopting Taiwan's silver screw guide rail module, high-precision, low noise, smooth sliding, and durable.


​​● Using transistor welding power supply, the current rises quickly and the welding is efficient.


​​● Adopting Panasonic servo motor control, it has fast response speed, precise and efficient control, long service life, and is not easily damaged.


​​● The entire machine adopts imported accessories, with a long service life and low damage rate.


​​● The fully automatic battery pack spot welding machine adopts a high-definition LCD touch screen, and the interactive human-machine interface is simple and convenient to operate.


​​● Automatic alarm for explosive welding and false welding equipment, manual adjustment for automatic zone repair welding, single point repair welding.


​​● Lithium battery spot welding machine has the function of manual programming and CAD mapping, which can quickly import spot welding paths using CAD mapping to achieve programming. Easy to learn, production line workers are fully competent.


​​● Independently developing various automated intelligent systems, facilitating the setting of equipment operation status and doubling production capacity.


​​● Equipped with energy switching function, production counting function, welding needle compensation function, manual debugging function, etc.


​​● Aluminum alloy skeleton, imported acrylic protective plate, beautiful and elegant with strong sense of technology, comprehensive visual operation to improve production safety factor.


​​● Adopting a through design structure (both forward forward and backward). Easy to connect to other assembly processes on the backend, making the assembly and production process of battery packs simpler and faster.

Technical specification

Production efficiency 3000PCS/H Welding thickness 0.02-0.3MM
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding source Transistor/multipulse (Optional)
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding





Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric 0



 2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric 1



 3. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric 2



Application case



1. Energy storage battery pack      2. Electric bicycle battery pack       3. Power tool battery pack

Professional 18650 Automatic Battery Spot Welding Machine Pure Electric 3   Professional 18650 Automatic Battery Spot Welding Machine Pure Electric 4    Professional 18650 Automatic Battery Spot Welding Machine Pure Electric 5



FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
