Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld

Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld

  • High Light

    Automatic Lithium Ion Battery Spot Welder

    ,

    Automatic 18650 Battery Welder

    ,

    Double Sided 18650 Battery Welder

  • Package
    Wooden Case
  • Power
    2.8KW
  • Power Supply
    AC110V/220V
  • Size
    1400*1000*1680mm
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Welding Thickness
    0.02mm-0.3mm
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Month

Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld

Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld


Equipment introduction

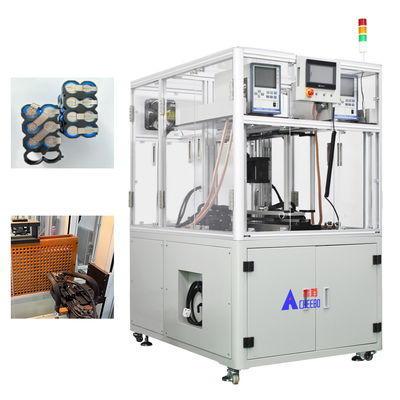

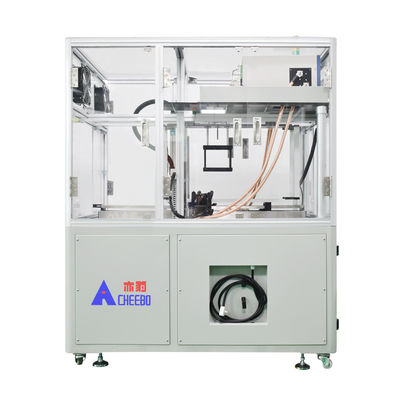

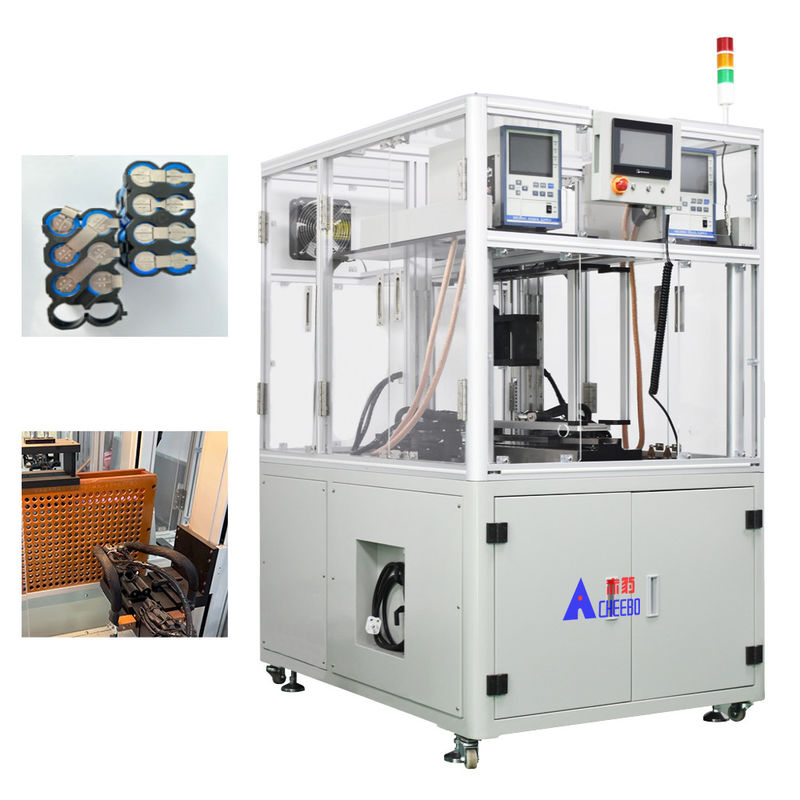

● It is suitable for spot welding of modular lithium battery pack such as NB/Power Tool/Gardening Tool/High Power/ energy storage power station battery/electric motorcycle/electric vehicle, and can be used in conjunction with the lithium battery pack production line.


● This lithium battery spot welding machine is suitable for 18650, 21700, 26650, 32700 and other cylindrical cell combination automatic double-sided spot welding.


● It has the characteristics of modular design, low noise, stable energy output and efficient welding.


● Hd LCD touch screen, easy parameter adjustment, real-time display of equipment working status. Manual programming, CAD drawing, importing spot welding path, fast programming. Simple and easy to learn, ordinary workers can set.


● Independently develop a variety of automatic intelligent systems, with the intelligent operation of equipment, such as: energy switching function, production technology function, welding needle compensation function, manual debugging function.


● Energy switching function, can store 4 groups of energy modes, different materials automatically switch different welding energy.


● Production count function, set the production quantity, complete the output automatic shutdown.


● Welding needle compensation function, set the number of welding needles, after reaching the number of automatic reminding for welding needle maintenance.


● The manual debugging function allows fine-tuning and saving of spot welding parameters for each point to the welding head (easy to modify the coordinates of the solder joint), and can also be adjusted using the one-click correction function.


● The designed structure (forward forward out or forward forward out) can be connected with the back-end production line, and can be taken out on the other side after welding to improve production efficiency.


● Blast welding, virtual welding, automatic alarm of welding equipment, manual adjustment of welding error area, automatic repair welding, can also set single point repair welding.


● Taiwan upper silver rod guide module, high precision, low noise, smooth sliding, durable.


● Aluminum alloy skeleton, imported acrylic shielding plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.

Technical specification

Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Function Introduction

 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld 0

 2. Electric precision welding head
No need to connect the air source, low noise. The built-in pressure sensor can monitor and control the instantaneous pressure of welding head. Precision welding head, small pressure inertia, soft pressure



Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld 1



 3. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld 2

Debugging project

  1. Y axis, Z axis, A axis coordinate parameters
  2. Spot welding power supply parameter setting
  3. Spot welding pressure, stroke adjustment
  4. Spot welding times set
  5. Needle service life setting
  6. Spot welding spacing setting
  7. Spot welding mode setting

Application case

1. Energy storage battery pack        2. Electric bicycle battery pack          3.  Power tool battery pack

Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld 3     Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld 4        Automatic Lithium Battery Spot Welder 18650 Battery Pack Double Sided Weld 5
