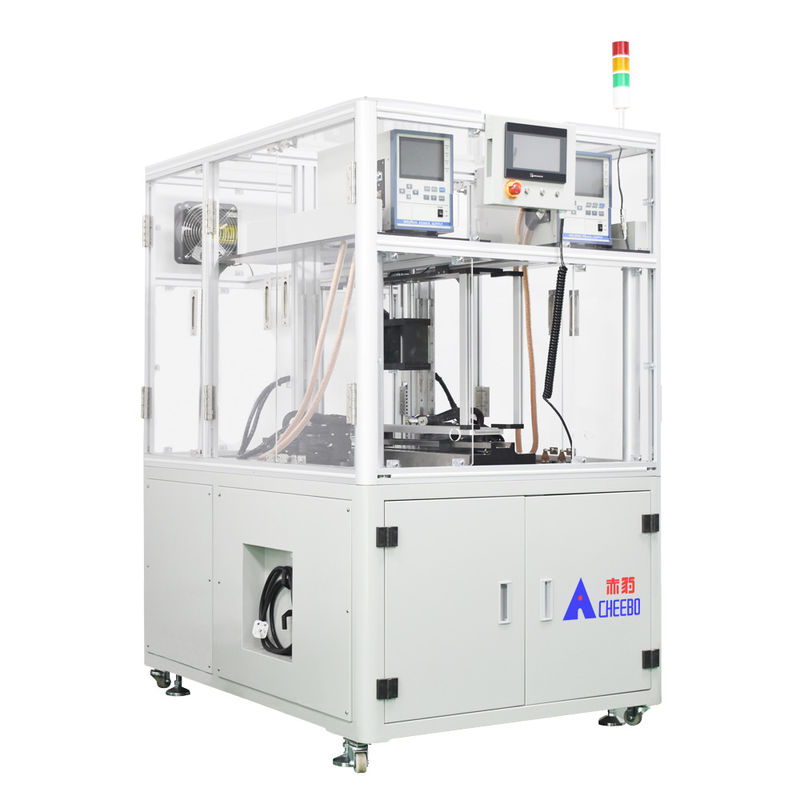

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine

  • High Light

    Automatic Battery Pack Welder

    ,

    Automatic 18650 Battery Spot Welding Machine

    ,

    Lithium 18650 Battery Spot Welding Machine

  • Mode Of Motion
    Automatic Continuous
  • Product Name
    Auto Double-sided Battery Spot Welder
  • X-axis Travel
    400MM
  • Y-axis Travel
    600MM
  • Y-axis Precision
    0.1MM
  • X-axis Precision
    0.1MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine


Equipment introduction

​​● The fully automatic double-sided spot welding machine adopts double-sided spot welding at the same time, without the need to connect the gas source for higher production efficiency. At the same time, it also avoids unstable and inconsistent welding energy caused by gas source pressure fluctuations during welding, with fast welding speed and high accuracy.


​​● Fully automatic battery pack spot welding machine is suitable for welding and assembling power battery packs with nickel sheet thickness less than 0.3MM.


​​● The fully automatic spot welding machine of the battery adopts a through design structure (can be forward or backward).



​​● Easy to connect with other backend assembly processes, making the assembly and production process of battery packs simpler and faster.


​​● CHEEBO lithium battery spot welder adopts transistor Welding power supply, with fast current rise and high welding efficiency.


​​● During welding, there are defects such as false soldering and explosive soldering, and the welding equipment automatically alarms, automatic area repair welding manually adjusts, and single point repair welding.


​​● The lithium battery spot welding machine has manual programming and CAD drawing functions. Spot welding paths can be quickly imported through CAD mapping to achieve programming. Easy to learn, production line workers are fully capable.


​​● The fully automatic battery spot welding machine adopts a high-definition LCD touch screen and an interactive human-machine interface that is easy to operate.


​​● Independently developing various automated intelligent systems to easily set the operating status of equipment, doubling production capacity.


​​● Equipped with energy switching function, production counting function, welding needle compensation function, and manual debugging function.


​​● Panasonic servo motor control, fast response speed, accurate and efficient control, long service life, and not easily damaged.


​​● Adopting HIWIN guide rail module, it has high accuracy, low noise, smooth sliding, and durability.


​​● The entire machine adopts imported parts, with a long service life and low damage rate.


​​● Aluminum alloy skeleton, imported acrylic guard board, beautiful and generous sense of technology, comprehensive visual operation to improve the production Factor of safety.

Technical specification

Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Application case

1. Energy storage battery pack        2. Electric bicycle battery pack       3. Power tool battery pack



Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine 0    Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine 1      Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine 2

Function Introduction

 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine 3



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine 4

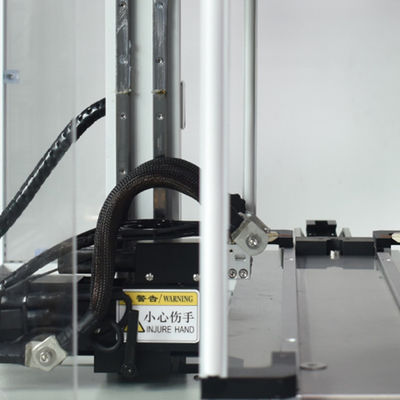

 3. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

Automatic Battery Pack Welder Lithium 18650 Battery Spot Welding Machine 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q:How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
