Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine

Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine

  • High Light

    Integrated Automatic Battery Spot Welding Machine

    ,

    18650 Spot Welder With Nickel Plate

    ,

    Integrated 18650 Spot Welder

  • Product Name
    5-axis Standard Double-sided Battery Spot Welder
  • Cooling System
    Integrated
  • Power Supply
    DC
  • Voltage Range
    100-999A
  • Welding Accuracy
    0.00-9.99MS
  • Welding Current
    Adjustable
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine

Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine

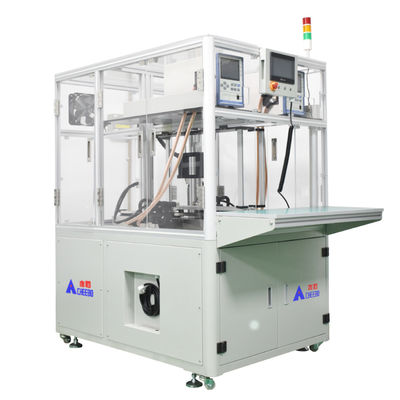

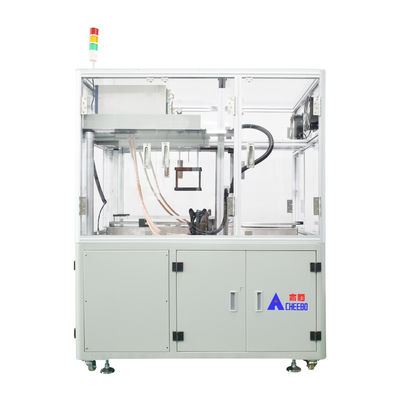

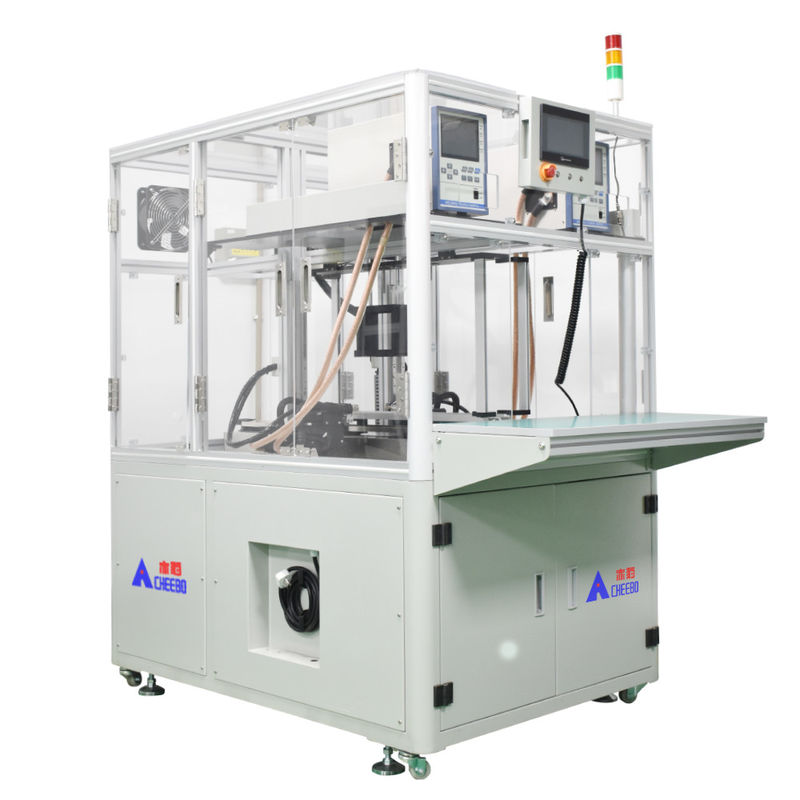

Equipment introduction

​​● This lithium battery spot welding machine is a multi-axis control machine developed by modern automation experts, with precision transmission and motor control mechanism self-walking mechanism, effective real-time control of processing automation production equipment.


​​● The equipment is suitable for automatic double-sided spot welding of various cylindrical cell combinations such as 18650, 21700, 26650, 32700, etc.


​​● It is suitable for spot welding of modular lithium battery pack such as NB/Power Tool/Gardening Tool/High Power/ energy storage power station battery/electric motorcycle/electric vehicle, and can be used in conjunction with the lithium battery pack production line.


​​● It has the characteristics of modular design, low noise, stable energy output and efficient welding.


​​● Using transistor welding power supply, the power supply rises fast, and high quality welding results can be achieved in a short time. Real-time display of welding voltage and current.


​​● Taiwan silver rod guide rail, high precision, low noise, smooth sliding, durable.


​​● Hd LCD touch screen, easy parameter adjustment, real-time display of equipment working status.


​​● Independently develop a variety of automatic intelligent systems, with the intelligent operation of equipment, such as: energy switching function, production technology function, welding needle compensation function, manual debugging function.

Technical specification

Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding






Function Introduction



 1. Lead screw guide

Adopting WIHIN guide rail, high precision, low noise, smooth sliding, and durable.

Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine 0



 2. Electric precision welding head
No need to connect the air source, low noise. The built-in pressure sensor can monitor and control the instantaneous pressure of welding head. Precision welding head, small pressure inertia, soft pressure



Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine 1



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine 2

 4. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.



Cylinder Battery Pack Assembly Automatic Battery Spot Welding Machine 3

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
