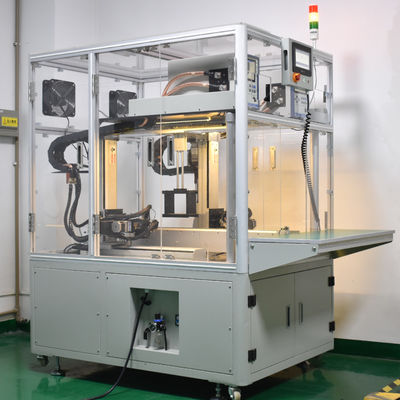

Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine

Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine

  • Highlight

    Automatic Battery Cell Spot Welder

    ,

    Double Sided Battery Cell Spot Welder

    ,

    Automatic Lithium Ion Battery Assembly Machine

  • Product Features
    Double-sided Welding
  • Welding Speed
    3600PCS/H
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Welding Power Supply
    Optional
  • Welding Head Features
    Electric Welding Head
  • Maximum Welding Thickness
    0.3MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

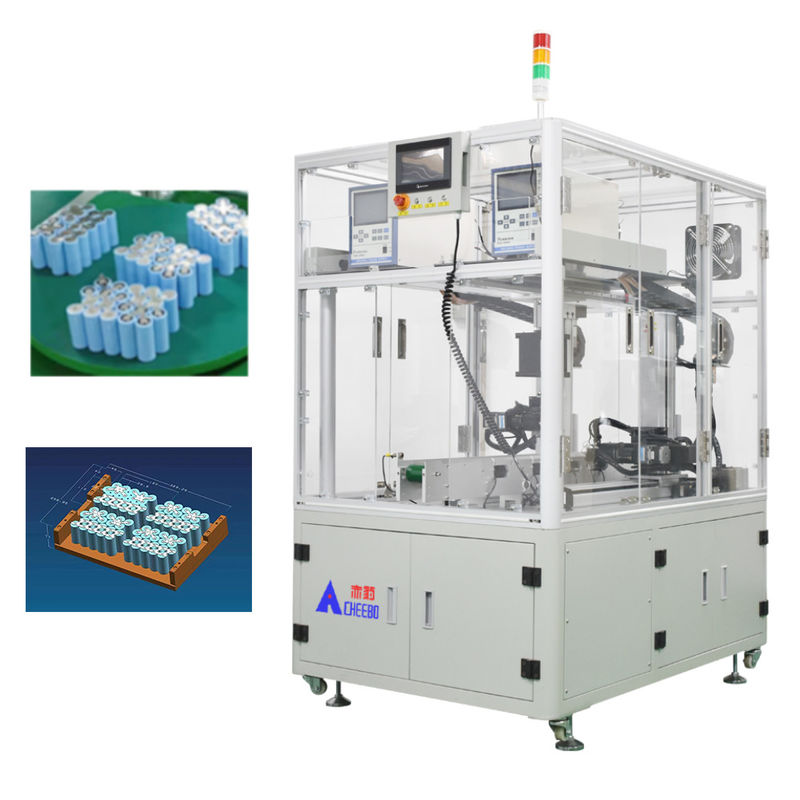

Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine

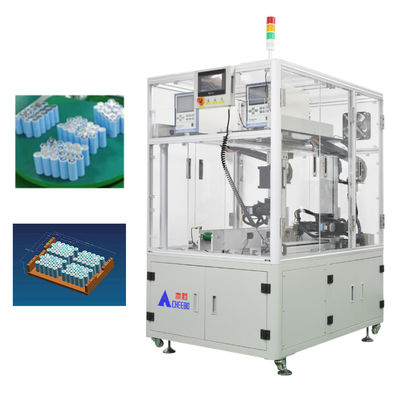

Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine


Equipment introduction



● Automatic lithium battery spot welder with self-developed electric precision rotary welding head which can rotate 135° for welding, suitable for various irregular nickel pieces with anti-sticky pin effect.


● CBMN8-5036 double-sided lithium battery spot welder can be operated independently on the left and right platform, and the welding path can be set independently according to different welding needs.


● Fry welding, false welding equipment automatic alarm, automatic area fill welding, single point fill welding manual adjustment.


● Adopt HIWIN module with high precision, low noise, smooth sliding and durable.


● With straight-through design structure (i.e. forward and forward output, or forward and backward output), it can be directly connected to the production line for use. After welding, it can be taken out at the side of the production line.


● Lithium-ion battery assembly equipment adopts high-definition LCD touch screen, with simple human-machine interface and easy operation. Manual programming, CAD drawing, spot welding path import, fast programming speed. Easy to learn, can be set up by common workers.


● Energy switching function, can store 4 groups of energy modes, automatically switch different welding energy for different materials.


● Production counting function, set the production quantity and stop automatically when production is finished.


● Welding pin compensation function, set the number of welding pins, and automatically remind the maintenance of welding pins after the number of times is reached.


● Manual debugging function, can fine-tune the welding head and save the spot welding parameters of each point (convenient to modify the coordinates of the welding point), also can use the one-key calibration function to adjust.


● Aluminum alloy skeleton, imported acrylic protection plate, beautiful and elegant, strong sense of technology, visual operation to improve the production safety factor.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding




Function Introduction



 1. Electric rotating welding head

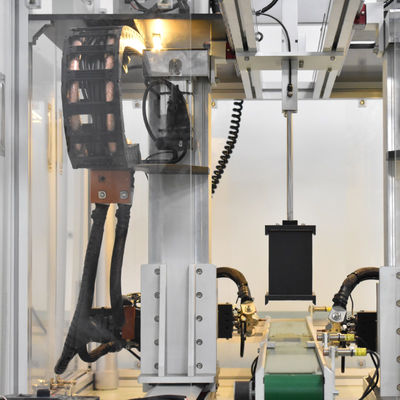

The sonotrode can be rotated 135° for welding, suitable for special-shaped nickel sheets, and also has an anti-stick pin function. Built-in pressure sensor, which can monitor and control the instantaneous output pressure of the welding head.



Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine 0



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.



Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine 1



 2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.



Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine 2



Application case



1. Energy storage battery pack        2. Electric bicycle battery pack         3. Power tool battery pack



Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine 3     Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine 4      Automatic Lithium Battery Cell Spot Welder Double Sided Assembly Machine 5



FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
