Automatic Battery Spot Welding Machine Multi Function Welding Machine

Automatic Battery Spot Welding Machine Multi Function Welding Machine

  • High Light

    Automatic Battery Pack Welding Machine

    ,

    Multi Function Battery Pack Welding Machine

    ,

    Automatic 18650 Battery Welding Machine

  • Applicable Specifications
    Cylindrical Cell Welding
  • Welding Material
    Aluminum Oxide Copper
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Welding Pressure Control
    Pneumatic
  • Welding Pressure Range
    1-5KG/F
  • Welding Thickness
    0.02mm - 0.3mm
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Automatic Battery Spot Welding Machine Multi Function Welding Machine

Automatic Battery Spot Welding Machine Multi Function Welding Machine


Equipment introduction

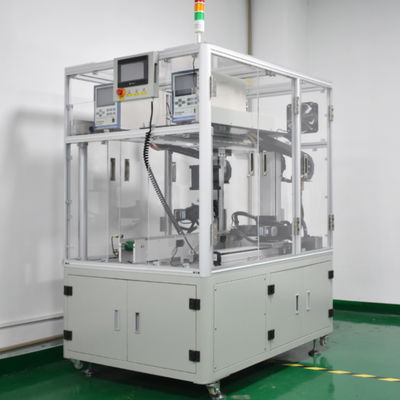

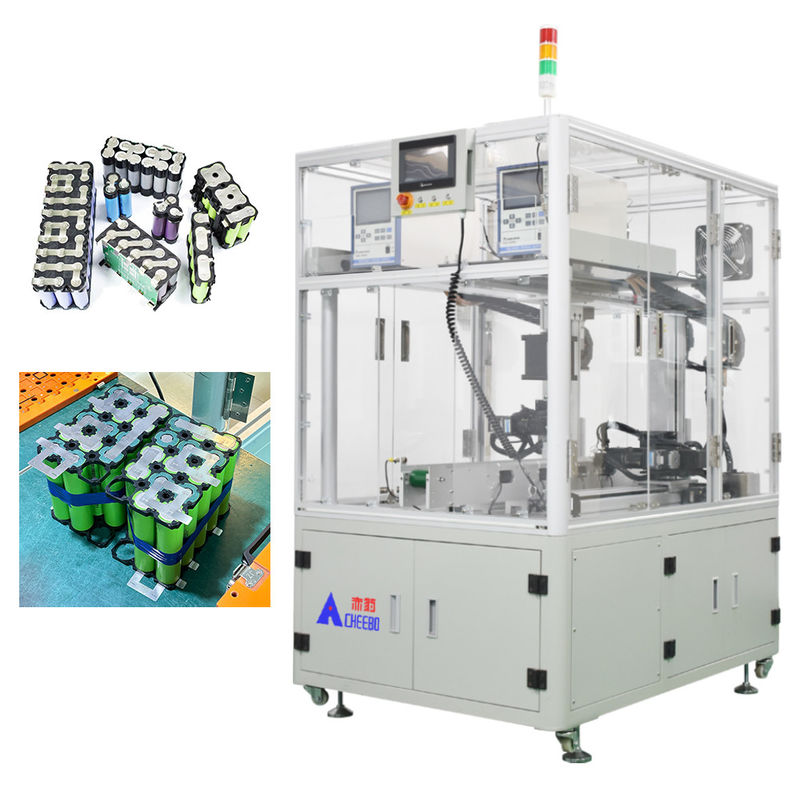

● Automatic lithium battery spot welder with self-developed electric precision rotary welding head, which can be rotated 135° for welding, suitable for various irregular nickel pieces with anti-sticky pin effect.


● CBMN8-5036 double-sided lithium battery spot welder can be operated independently on the left and right platform, and the welding path can be set independently according to different welding needs.


●CBMN8-5036 8-axis lithium battery spot welder has the function of automatically detecting whether the tooling fixture is in place or not.


●Fry welding, false welding equipment automatically alarm, automatic area fill welding, single point fill welding manual adjustment.


●Added with origin reset function, that is, if the machine is stopped due to abnormal problems during spot welding, it can be manually restored to the origin and open the breakpoint processing, and it can be welded from the last welding position when it is started again.


●With the breakpoint processing function, if you break a spot during spot welding, you can turn it on again to renew the spot welding from the last spot welding position or you can manually enter the current spot welding position in the interface to start the automatic renewal function.


●The touch screen can be moved to the debugging position by stretching, and can be fixed in a fixed position during normal production.


●With needle management function, you can control the service life of the needle and the number of times it is used.


●16 sets of spot welding conditions can be set, suitable for different material welding.


●Adopt HIWIN module with high precision, low noise, smooth sliding and durable.


●Adopt through design structure (i.e. forward and forward out, or forward and backward out), can be directly connected to the production line for use. After welding, it can be taken out at the side of the production line.


●Lithium-ion battery assembly equipment adopts high-definition LCD touch screen with simple human-machine interaction interface and easy operation. Manual programming, CAD drawing, import spot welding path, fast programming. Easy to learn and can be set up by ordinary workers.


● Aluminum alloy skeleton, imported acrylic protection plate, beautiful and elegant, strong sense of technology, visual operation to improve the production safety factor.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



operation cautions
  •  The same battery pack (manual programming) can only be horizontal spot welding or vertical spot welding, and can not have both   horizontal and vertical spot welding in the same group of batteries. (If multiple spot welding specifications are required, please do   CAD programming.)
  •  The same battery pack can only choose flat pin spot welding or convex spot welding
  •  In a battery pack, the spot welding surface must be flush and of the same height
  •  Clean the end face of the spot welding needle regularly
  •  The whole machine adopts computer control system. Do not link USB device and Internet at will to prevent data loss
Device action flow description



The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device automatically spot



-welds the device to the extraction position (select the discharge method: forward forward out, forward forward out) -- the battery pack is removed



from the fixture -- and the next production cycle is carried out



Function Introduction



 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter settings are easy to learn. Support manual programming, CAD maps, import solder joint paths, for fast programming.



Automatic Battery Spot Welding Machine Multi Function Welding Machine 0



 2. Electric rotating welding head

The sonotrode can be rotated 135° for welding, suitable for special-shaped nickel sheets, and also has an anti-stick pin function. Built-in pressure sensor, which can monitor and control the instantaneous output pressure of the welding head.



Automatic Battery Spot Welding Machine Multi Function Welding Machine 1



 3. Cooling system:

Water circulation heat dissipation, instantaneous high-current welding, the welding head always maintains a constant temperature, effectively reducing the loss of welding pins and improving the welding effect.



Automatic Battery Spot Welding Machine Multi Function Welding Machine 2



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
