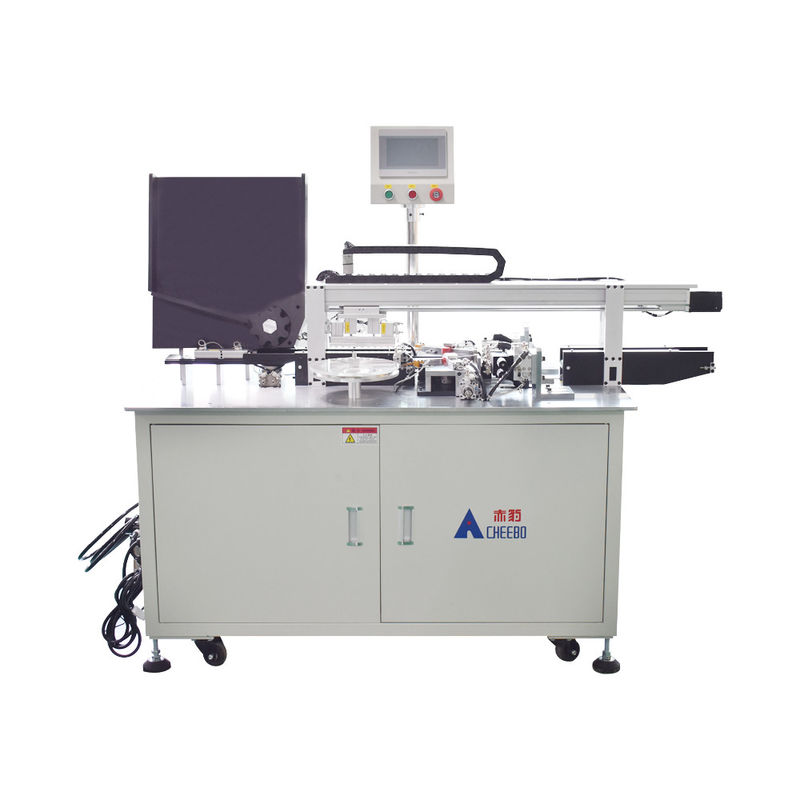

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding

  • High Light

    Automatic Battery Spot Welding Machine 32700

    ,

    Cylindrical Automatic Battery Spot Welding Machine

    ,

    Cell Spot Welding Machine 32700

  • Production Efficiency
    2600PCS/H
  • Welding Power Supply
    Multi-pulse
  • Cooling Method
    Forced Water Circulation Cooling
  • Product Name
    Series Parallel Double-sided Automatic Spot Welding Machine
  • Equipment Weight
    300KG
  • Welding Thickness
    0.04-0.2MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN-1810
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    15 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding



Application scope of the product



​​● Suitable for lithium battery assembly, it is a series-parallel welding device for 18650 single-bank batteries.


​​● The equipment has positive and negative pole rotation function and automatic grasping function, and the length of nickel sheet is freely set. Suitable for vacuum cleaner battery, walkie-talkie battery, Bluetooth speaker battery and other fields. The system uses liquid crystal display, simple operation, stable operation, reliable, in line with the equipment to the standard requirements of the environment, to improve the operation mode, improve the safety of the equipment has a significant effect, is a successful solution to the single row spot welding efficient equipment.



Equipment introduction

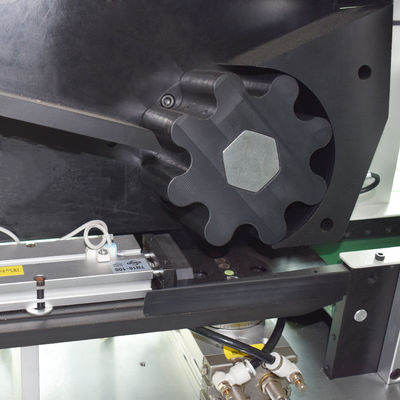

​​● Operation steps: feeding, feeding, grasping, welding, discharging.


​​● Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement


​​● Series/parallel 12 cells, 1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc


​​● Using double welding head station for welding, positive and negative electrode welding at the same time, improve production efficiency.


​​● After setting the parameters, the whole box is put into the battery equipment to weld the product directly.


​​● It can weld 2600 cells per hour, with high production efficiency and saving labor.


​​● Automatic welding sheet feeding device, no manual placement of the lens, simple and convenient, labor saving. Can be used for pre-welded rows of multiple battery packs.


​​● The whole machine parts are imported brands, long service life, low failure rate alloy skeleton, imported acrylic protection plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.



Function Introduction



Production efficiency 2600PCS/H Welding source Multiple-pulse
Welding thickness 0.02-0.2MM Dimensions 1800*1150*1800
Working air pressure 3.0-6.0Mpa Mode of movement Automatic continuous
Grab cell 10PCS (up to 12PCS) Welding pressure 5KG/F(adjustable)
Power source specification 220V 50/60HZ Type of cooling Forced water circulation cooling
Electrode material Copper alumina Weight 330KG



Function Introduction



 1. Random combination
In series/parallel 12 cells,1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding 0



 2. Double side welding
Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding 1



 3.  Automatic welding sheet feeding device
There is no need to manually place the nickel sheet, simple and convenient, saving labor. Can be used for pre-welded rows of multiple battery packs.

Cylindrical Automatic Battery Spot Welding Machine 18650 Series Welding 2



FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
