Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply

Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply

  • High Light

    CCD Tester With 8 Axis

    ,

    Multifunctional CCD Tester

    ,

    Multifunctional Lithium Ion Battery Spot Welder

  • Welding Material
    Pure Nickel/Steel Nickel Plating
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Driving Mode
    Pneumatic
  • Welding Mode
    Single Side And Double Point Horizontal Welding
  • After-sales Service Provided
    Engineers Can Repair Machinery Overseas
  • Working Principle
    Resistance Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply

Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply


Equipment introduction

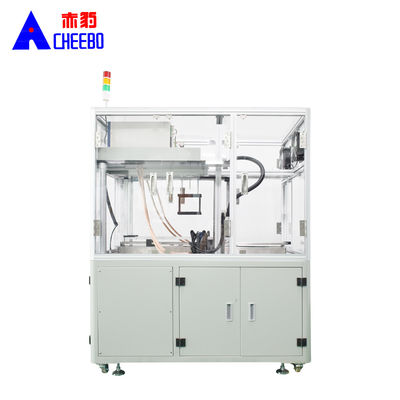

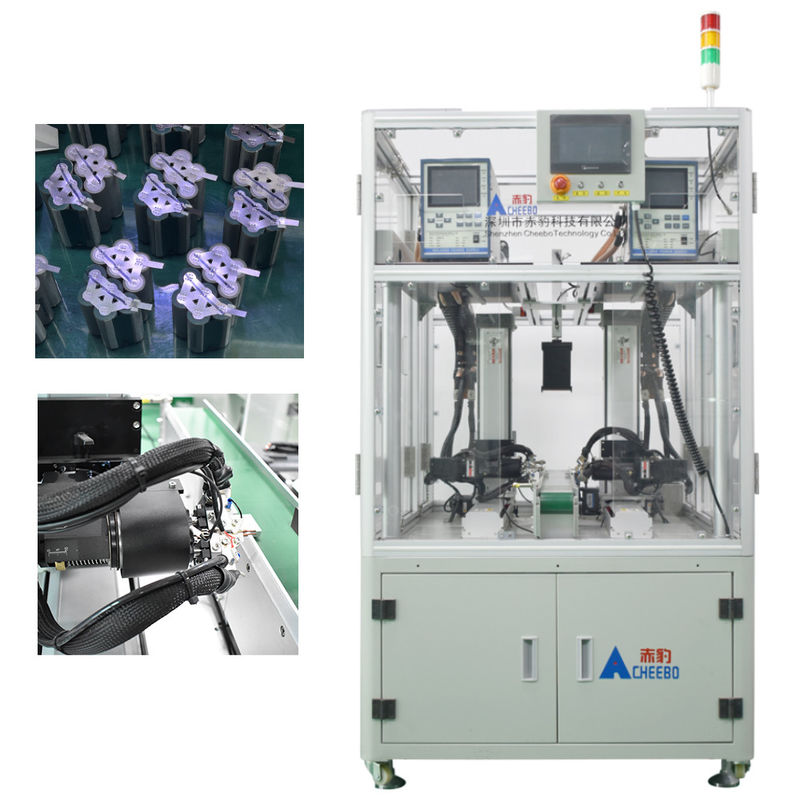

● It is suitable for spot welding of modular lithium battery pack such as NB/Power Tool/Gardening Tool/High Power/ power station battery/electric motorcycle/electric vehicle, and can be used in conjunction with the lithium battery pack production line.


● This lithium battery spot welding machine is suitable for 18650, 21700, 26650, 32700 and other cylindrical cell combination automatic double-sided spot welding.


● This lithium battery spot welding machine adopts the electric precision rotating welding head independently developed by ceebo technology.



● The 135° rotating welding head design can set the rotation Angle of the welding head according to the slot position of the nickel sheet to avoid welding errors caused by the failure of the welding head to rotate. At the same time, it has the function of anti-sticking needle.


● It has the characteristics of modular design, low noise, stable energy output and efficient welding.


● Hd LCD touch screen, easy parameter adjustment, real-time display of equipment working status. Manual programming, CAD drawing, importing spot welding path, fast programming. Simple and easy to learn, ordinary workers can set.


● The left and right sides are welded at the same time, the left and right platforms can be independently set welding parameters, and the welding path and rotation Angle and direction can be independently set according to different welding requirements.


● Independently develop a variety of automatic intelligent systems, with the intelligent operation of equipment, such as: energy switching function, production technology function, welding needle compensation function, manual debugging function.


● The designed structure (forward forward out or forward forward out) can be connected with the back-end production line, and can be taken out on the other side after welding to improve production efficiency.


● Blast welding, virtual welding, automatic alarm of welding equipment, manual adjustment of welding error area, automatic repair welding, can also set single point repair welding.


● Taiwan upper silver rod guide module, high precision, low noise, smooth sliding, durable.


● Aluminum alloy skeleton, imported acrylic shielding plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.

Application case

1. Energy storage battery pack              2. Electric bicycle battery pack                   3. Power tool battery pack



Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply 0            Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply 1                 Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply 2

Technical specification

Production efficiency 3600PCS/H Welding head rotation Yes
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
Welding source Transistor/multipulse (Optional) Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
XY shaft welding stroke 360MM*500MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding


Device action flow description

The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device



automatically spot-welds the device to the extraction position (select the discharge method: forward forward out, forward forward



out) -- the battery pack is removed from the fixture -- and the next production cycle is carried out

Function Introduction

 1. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.



Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply 3



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.



Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply 4



 3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.



Battery Tab Spot Welding Machine High Power 10000A Transistor Power Supply 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
