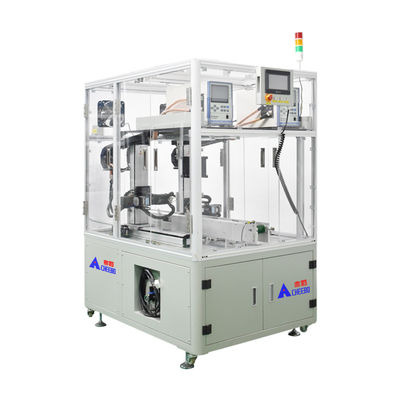

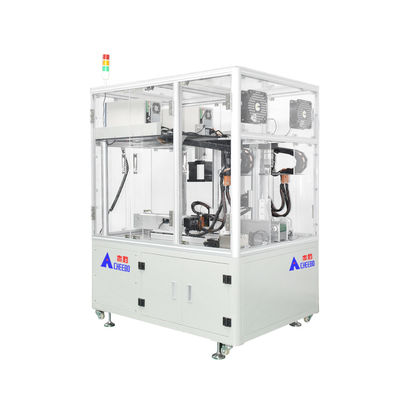

Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts

Automatic Double Sided Battery Spot Welder Cell Use With 8 Shafts

  • High Light

    Automatic Professional Battery Spot Welder

    ,

    Cell Welding Machine With 8 Shafts

    ,

    Double Sided Battery Cell Welding Machine

  • Welding Principle
    Resistance Welding
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Relocation Accuracy
    0.1mm
  • Display
    7 "HD Touch Screen
  • Security Grating
    Can Be Added
  • Weight
    330KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

Automatic Double Sided Battery Spot Welder Cell Use With 8 Shafts

Automatic Double Sided Battery Spot Welder Cell Use With 8 Shafts


Equipment introduction

​​

● The fully automatic lithium battery spot welding machine is independently developed with an electric precision rotating welding head that can rotate 135 ° for welding, suitable for various irregular nickel sheets and has anti sticking needle effect.


​​● The CBMN8-5036 double-sided lithium battery spot welding machine can be operated independently on the left and right platforms, and the welding path can be set independently according to different welding needs.


​​● Automatic alarm for explosive welding and false welding equipment, manual adjustment for automatic zone repair welding, single point repair welding.


​​● Adopting Taiwan's silver screw guide rail module, high-precision, low noise, smooth sliding, and durable.


​​● Adopting a through design structure (both forward and backward), it can be connected to the production line through and used. After welding is completed, it can be taken out on the production line side.


​​● The lithium ion battery assembly equipment adopts a high-definition LCD touch screen, and the interactive human-machine interface is simple and convenient to operate. Manual programming, CAD mapping, import spot welding paths, and quickly achieve programming. Easy to learn, it can be set up by ordinary workers.


​​● Energy switching function, which can store 4 sets of energy modes, and automatically switch different welding energies for different materials.


​​● Production counting function, set production quantity, and automatically shut down after completing production.


​​● Welding needle compensation function, setting the number of welding needles, and automatically reminding for welding needle maintenance after reaching the number of times.


​​● The manual debugging function allows for fine-tuning of the welding head and saving of spot welding parameters for each point (making it easy to modify the coordinates of the welding points), and can also be adjusted using the one click calibration function.


​​● Aluminum alloy skeleton, imported acrylic protective plate, beautiful and elegant with strong sense of technology, visual operation to improve production safety factor.



Technical specification
Production efficiency 3600PCS/H Welding head rotation Yes
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
Welding source Transistor/multipulse (Optional) Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
XY shaft welding stroke 360MM*500MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts 0



 2. Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.

Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts 1



 3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.

Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts 2



FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Application case



1. Energy storage battery pack          2. Electric bicycle battery pack          3. Power tool battery pack

Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts 3       Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts 4        Automatic Double Sided Battery Spot Welder  Cell Use With 8 Shafts 5
