Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function

Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function

  • High Light

    Double Sided Auto Spot Welding Machine

    ,

    Cylindrical Battery Pack Spot Welder

    ,

    Double Sided Battery Pack Spot Welder

  • Appearance Material
    Aluminum Alloy
  • Rated Duty Cycle
    20%
  • Product Name
    Auto 8-axis Battery Pack Spot Welding Machine
  • Dimensions
    1.4M*1M*1.68M
  • Application
    Battery Pack Assembly
  • Welding Material
    Pure Nickel/steel Nickel Plating
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function

Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function


Equipment introduction

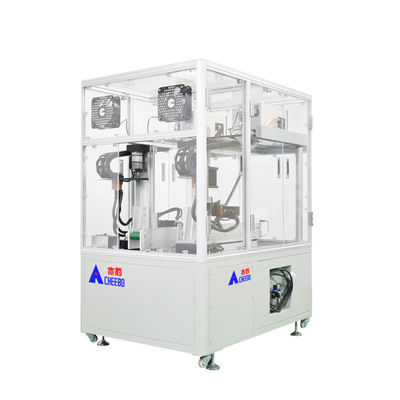

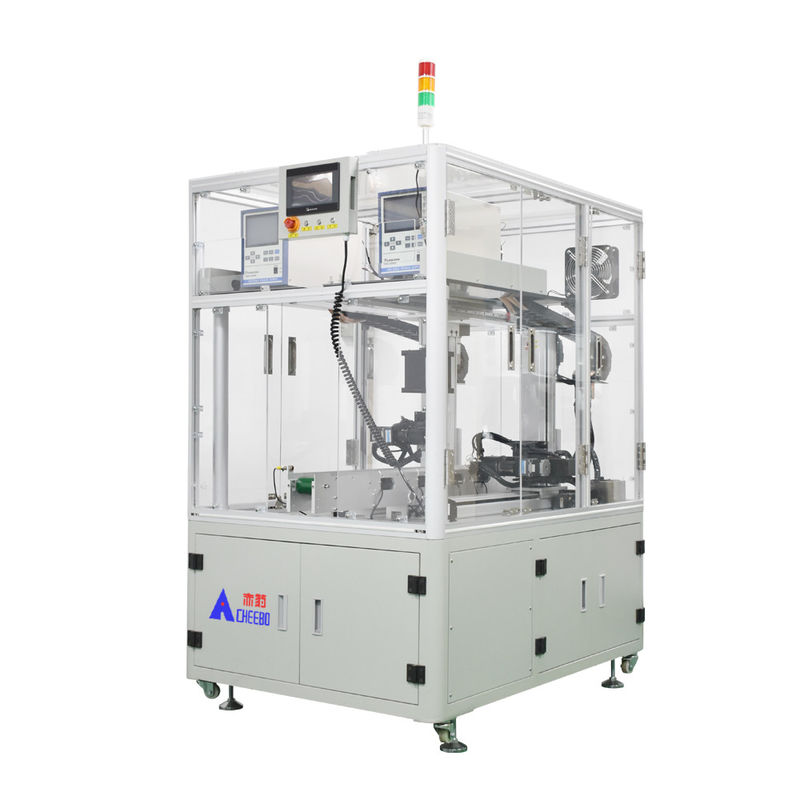

​​● The electric precision rotary welding head independently developed by the lithium battery spot welding machine can be rotated at 135° for welding, suitable for various irregular nickel sheets, and has the effect of anti-sticking needles.


● The left and right platforms of the 8-axis double-sided spot welding machine can be operated independently, and the welding path can be set independently according to different welding needs.


● Explosive welding, false welding equipment automatic alarm, automatic area repair welding, manual adjustment of single point repair welding.


● CHEEBO technology battery patch welding machine adopts Taiwan silver screw guide rail module, which has high precision, low noise, smooth sliding and durable.


● High-definition LCD touch screen, human-computer interaction interface, easy and convenient operation. Manual programming, CAD drawing, import spot welding path, and quickly realize programming. Easy to learn, ordinary workers can set it up.


● Adopt straight-through design structure (both positive and negative), which can be directly connected to the production line for use. After the welding is completed, it can be taken out on the side of the production line. It is convenient to connect to the back-end production line to improve production efficiency.


● Energy switching function, which can store 4 groups of energy modes, and automatically switch between different welding energies for different materials.


● Production counting function, set the production quantity, and stop automatically after production is completed.


● Welding needle compensation function, set the number of welding needles, and automatically remind the maintenance of welding needles after reaching the number of times.


● Manual debugging function, which can fine-tune the welding head and save the spot welding parameters of each point (easy to modify the coordinates of welding points), and can also use the one-key calibration function to adjust.


● Aluminum alloy skeleton, imported acrylic protection board, beautiful and generous, strong sense of technology, visual operation improves production safety factor.

Technical specification

Production efficiency 3600PCS/H Welding head rotation Yes
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
Welding source Transistor/multipulse (Optional) Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
XY shaft welding stroke 360MM*500MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Application case

1. Energy storage battery pack         2. Electric bicycle battery pack           3. Power tool battery pack



Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function 0      Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function 1        Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function 2

Function Introduction

 1. Electric rotating welding head

The welding head can rotate 135 for welding, which is suitable for special-shaped nickel sheet and also has the function of anti-sticking needle.
Built-in pressure sensor can monitor and control the instantaneous output pressure of welding head.

Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function 3



 2. Hd touch screen

Real time display of welding data and welding hole positions. The system parameter settings are simple and easy to learn.
Support manual programming, CAD mapping, and fast programming by importing solder joint paths.

Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function 4



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Double Sided 18650 Auto Spot Welding Machine 8-Axis Multi-Function 5
