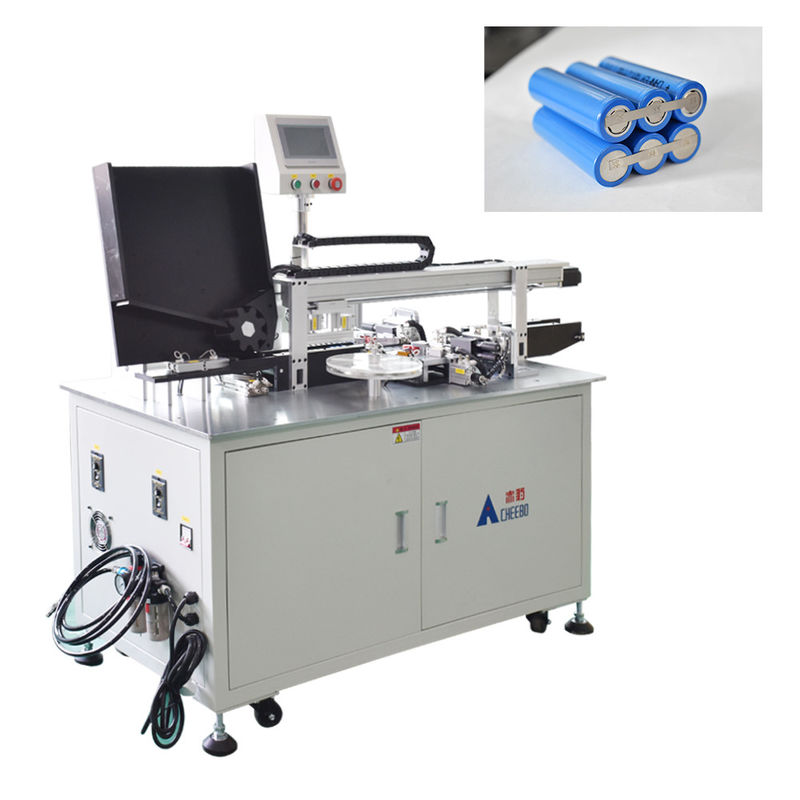

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly

  • High Light

    2000W Automatic Battery Spot Welding Machine

    ,

    High Precision Battery Spot Welding Machine

    ,

    Resistance Lithium Spot Welding Machine

  • Applicable Industries
    Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Welding Equipment, New Energy
  • Showroom Location
    China
  • Video Outgoing-inspection
    Provided
  • Key Selling Points
    Spot Welding
  • Power (kW)
    Spot Welding
  • After-sales Service Provided
    Remote Video Guidance
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN-1810
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    15 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly


Equipment introduction

Operation steps: loading, feeding, gripping, welding, discharging.


Single-row battery pack welding, specialized high degree of automation double-sided spot welding, automatic tape transfer automatic tape cutting, total positive and total negative reserved welding position, polarity conversion combination of arrangements


Series/parallel 12 cells can be combined at will, 1S12P-2S6P-3S4P-453P-6S2P-12S1P etc.


Adopting double welding head station for welding, positive and negative poles are welded at the same time to improve production efficiency.


After setting the parameters, the whole box is put into the core equipment to weld the product directly.


It can weld 2600pcs of battery cells per hour, with high production efficiency and labor-saving, the whole machine can be operated by one person.


Adopt automatic feeding welding sheet device, no need to place nickel sheet manually, simple and convenient, save labor. Can be used for multi-row battery pack pre-welding into rows.


The whole machine components are imported brands, long service life, low failure rate alloy skeleton, imported acrylic guard plate, beautiful and generous sense of technology, visualization of the operation to improve the production safety factor.



Application scope of the product



Suitable for lithium battery assembly, it is a series and parallel welding equipment for 18650 single row battery.


The equipment has positive and negative polarity transfer function and automatic gripping function, nickel piece length is set freely. Suitable for vacuum cleaner batteries, walkie-talkie batteries, Bluetooth speaker batteries and other fields. The system adopts liquid crystal display, easy to operate, stable and reliable operation, in line with the environmental requirements of the equipment, to improve the mode of operation, improve the operational safety of the equipment has a significant effect, is a successful solution to the single-row spot welding of high-efficiency equipment.



Function Introduction



Production efficiency 2600PCS/H Welding source Multiple-pulse
Welding thickness 0.02-0.2MM Dimensions 1800*1150*1800
Working air pressure 3.0-6.0Mpa Mode of movement Automatic continuous
Grab cell 10PCS (up to 12PCS) Welding pressure 5KG/F(adjustable)
Power source specification 220V 50/60HZ Type of cooling Forced water circulation cooling
Electrode material Copper alumina Weight 330KG




Function Introduction

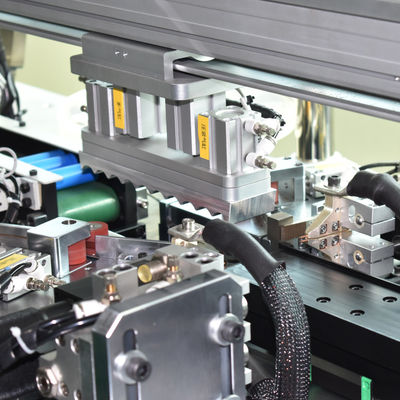

 1. Wave wheel transmission

Automatic transmission of cells to improve production speed.

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly 0



 2.  Double side welding
Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly 1



 3.  Automatic welding sheet feeding device
There is no need to manually place the nickel sheet, simple and convenient, saving labor. Can be used for pre-welded rows of multiple battery packs.

High Precision Automatic Battery Spot Welding Machine 18650 Welding Assembly 2



FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
