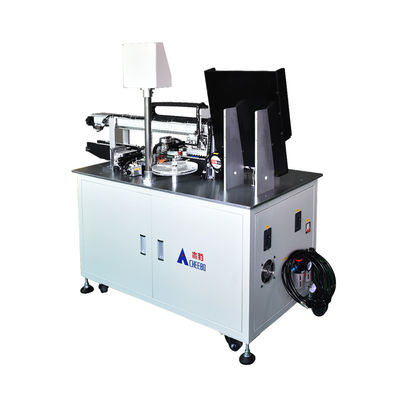

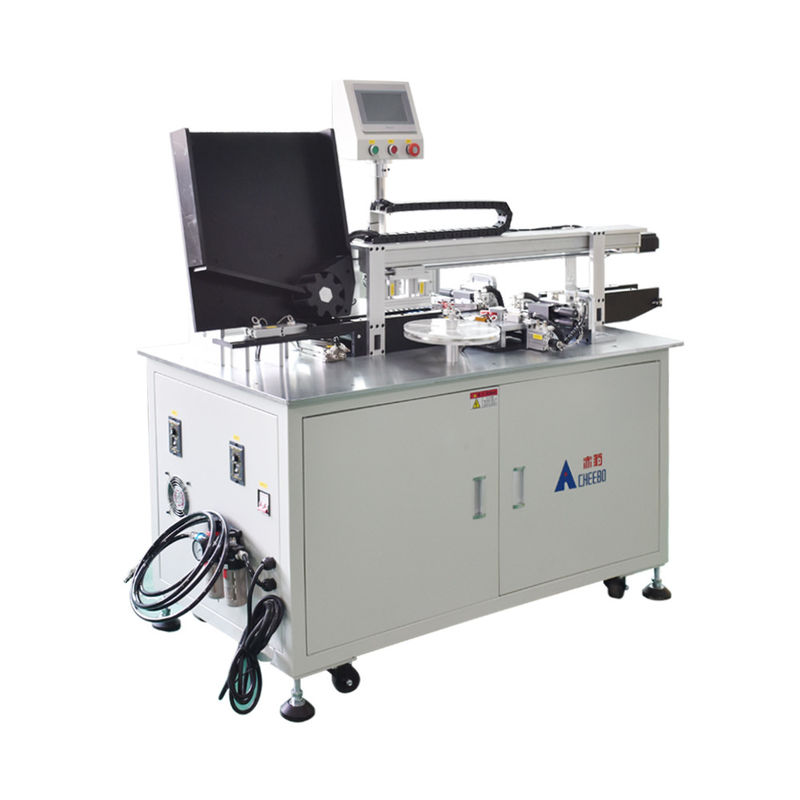

Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble

Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble

  • High Light

    Series Parallel Automatic Spot Welding Machine

    ,

    Series Parallel 18650 Battery Welder

    ,

    Pneumatic 18650 Battery Welder

  • Movement Mode
    Automatic Contact
  • Appearance Material
    Aluminum Alloy
  • Maximum Welding Thickness
    0.2MM
  • Use
    Spot Welding Of Electric Cell
  • Product Name
    Series Parallel Lithium Battery Spot Welding Machine
  • Driving Mode
    Pneumatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN-1810
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    15 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble

Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble


Equipment introduction

​​● Operation steps: feeding, feeding, grasping, welding, discharging.


​​● Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement


​​● Series/parallel 12 cells, 1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc


​​● Using double welding head station for welding, positive and negative electrode welding at the same time, improve production efficiency.


​​● After setting the parameters, the whole box is put into the battery equipment to weld the product directly.


​​● It can weld 2600 cells per hour, with high production efficiency and saving labor.


​​● Automatic welding sheet feeding device, no manual placement of the lens, simple and convenient, labor saving. Can be used for pre-welded rows of multiple battery packs.


​​● The whole machine parts are imported brands, long service life, low failure rate alloy skeleton, imported acrylic protection plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.


Application scope of the product


● Suitable for lithium battery assembly, it is a series-parallel welding device for 18650 single-bank batteries.


​​● The equipment has positive and negative pole rotation function and automatic grasping function, and the length of nickel sheet is freely set. Suitable for vacuum cleaner battery, walkie-talkie battery, Bluetooth speaker battery and other fields. The system uses liquid crystal display, simple operation, stable operation, reliable, in line with the equipment to the standard requirements of the environment, to improve the operation mode, improve the safety of the equipment has a significant effect, is a successful solution to the single row spot welding efficient equipment.



Function Introduction



Production efficiency 2600PCS/H Welding source Multiple-pulse
Welding thickness 0.02-0.2MM Dimensions 1800*1150*1800
Working air pressure 3.0-6.0Mpa Mode of movement Automatic continuous
Grab cell 10PCS (up to 12PCS) Welding pressure 5KG/F(adjustable)
Power source specification 220V 50/60HZ Type of cooling Forced water circulation cooling
Electrode material Copper alumina Weight 330KG




Debugging project
  1.  Positive and negative polarity reverses
  2.  Spot welding power supply parameter setting
  3.  Spot welding pressure, stroke adjustment
  4.  Nickel sheet extension length
  5.  Spot welding positioning
  6.  Spot welding spacing setting
  7.  Welding position coordinate​
Function Introduction


 1. Double side welding

Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement
Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble 0

 2. Random combination

In series/parallel 12 cells,1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc
Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble 1

 3.  Automatic welding sheet feeding device

There is no need to manually place the nickel sheet, simple and convenient, saving labor. Can be used for pre-welded rows of multiple battery packs.
Automatic Spot Welding Machine 18650 Serial Battery Pack Assemble 2
