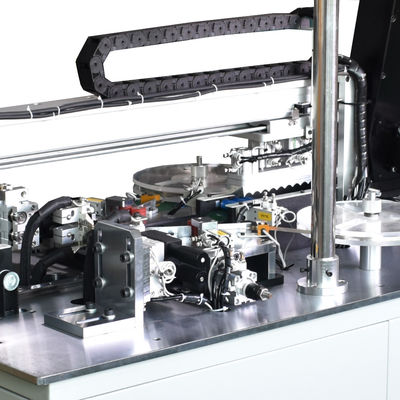

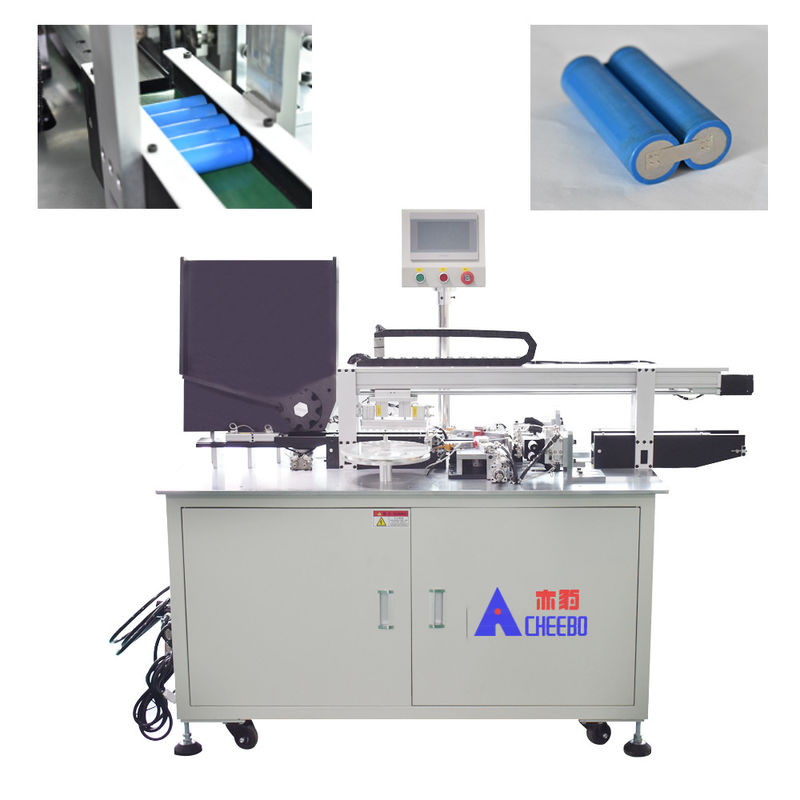

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use

  • High Light

    Automatic Spot Welder For Lithium Batteries

    ,

    Spot Welder For Lithium Batteries 21700

    ,

    21700 Battery Cell Welder

  • Applicable Industries
    Pneumatic
  • Showroom Location
    Aluminum Alloy
  • Usage
    Series Parallel Automatic Spot Welding Machine
  • Grab Cell
    12PCS/H (Max)
  • Warranty
    5KG/F (adjustable)
  • Key Selling Points
    Forced Water Circulation Cooling
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN-1810
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use


Equipment introduction



Running steps: feeding, feeding, grabbing, welding, discharging.


Single-row battery pack welding, double-sided spot welding with high degree of special automation, automatic belt cutting, total positive and negative reserved welding positions, polarity conversion combination arrangement


Series/parallel connection of 12 cells in random combination, 1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc


Double welding head station is used for welding, and the positive and negative electrodes are welded at the same time to improve production efficiency.


After setting the parameters, the whole box is put into the battery cell equipment to weld the product directly.


It can weld 2600 cells per hour, which has high production efficiency and saves the operation of the whole machine by one person.


It adopts automatic welding sheet device, no need to manually place lenses, simple and convenient, saving labor. Can be used for pre-welded rows of multi-row battery packs.


The whole machine parts are imported brands, long service life, low failure rate alloy skeleton, imported acrylic protective plate, beautiful and generous sense of technology, visual operation to improve the production safety factor



Application scope of the product



Suitable for lithium battery assembly, it is a series-parallel welding equipment for 18650 single-row battery.


The equipment has positive and negative pole turning function and automatic grabbing function, and the length of nickel sheet is set freely.
Suitable for vacuum cleaner battery, walkie-talkie battery, Bluetooth speaker battery and other fields.


The system adopts liquid crystal display, which is easy to operate, stable and reliable, meets the standard requirements of the equipment for the environment, and has a significant effect on improving the operation mode and improving the safety of equipment operation. it is an efficient equipment for successfully solving single-row spot welding.



Debugging project
  1.   Positive and negative polarity reverses
  2.   Spot welding power supply parameter setting
  3.   Spot welding pressure, stroke adjustment
  4.   Nickel sheet extension length
  5.   Spot welding positioning
  6.   Spot welding spacing setting
  7.   Welding position coordinat
Function Introduction



Production efficiency 2600PCS/H Welding source Multiple-pulse
Welding thickness 0.02-0.2MM Dimensions 1800*1150*1800
Working air pressure 3.0-6.0Mpa Mode of movement Automatic continuous
Grab cell 10PCS (up to 12PCS) Welding pressure 5KG/F(adjustable)
Power source specification 220V 50/60HZ Type of cooling Forced water circulation cooling
Electrode material Copper alumina Weight 330KG



Function Introduction



 1.  Wave wheel transmission

Automatic transmission of cells to improve production speed.

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use 0



 2. Random combination
In series/parallel 12 cells,1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use 1



 3.  Double side welding
Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use 2



 3.  Double side welding
Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement

Automatic Spot Welder For Lithium Batteries 21700 Pneumatic Control Cell Use 2



FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
