18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control

  • High Light

    18650 Lithium Battery Production Line

    ,

    Battery Spot Welding Machine 18650

    ,

    Battery Production Line With Eight Shaft

  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Welding Type
    Spot Welding
  • Welding Pressure Adjustment
    Manual
  • Mode Of Movement
    Automatic Continuous
  • Main Selling Point
    Versatility
  • Application
    Battery Pack Assembly
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control

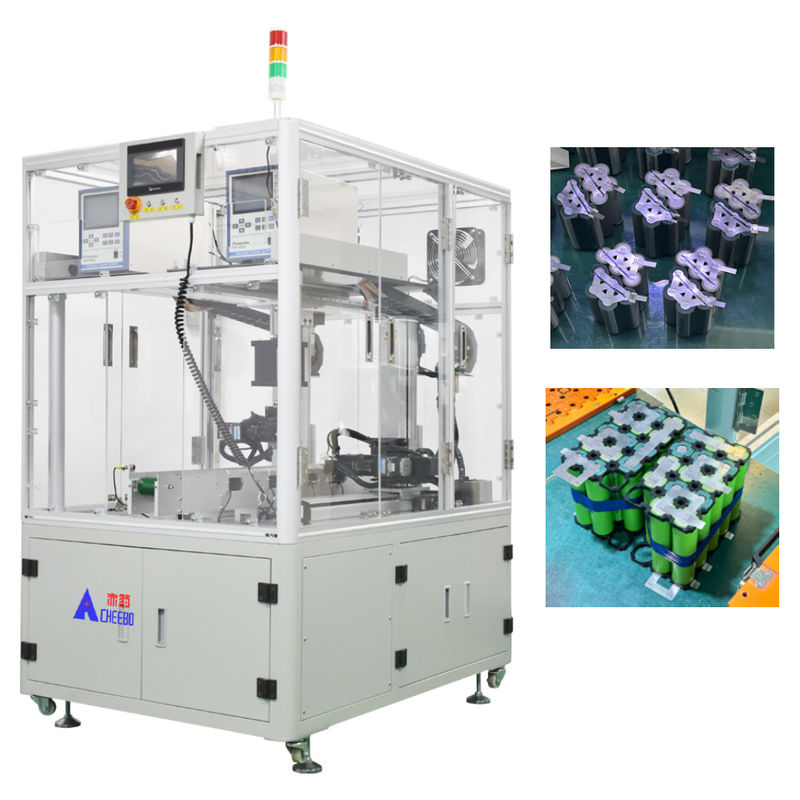

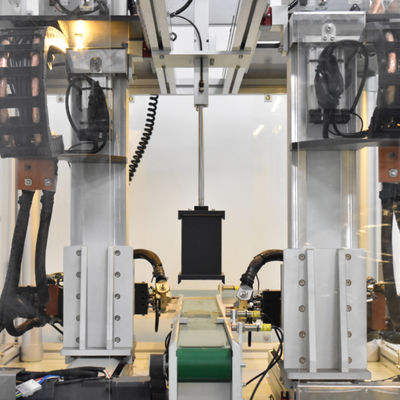

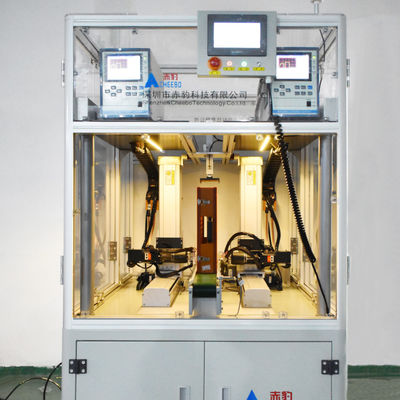

Equipment introduction



● Automatic lithium battery spot welder with self-developed electric precision rotary welding head, which can be rotated 135° to weld, suitable for all kinds of irregular nickel sheets with anti-sticking pin effect.


● CBMN8-5036 double-sided lithium battery spot welder can be operated independently on the left and right platforms, and the welding path can be set independently according to different welding needs.


● CBMN8-5036 8-axis lithium battery spot welder has the function of automatically detecting whether the fixture is in place or not.


● Blow-up welding and false welding equipment automatic alarm, automatic area replenishment welding, single-point replenishment welding manual adjustment.


● Installation of origin reset function, i.e. abnormal problems caused by downtime during spot welding, you can manually return to the origin, turn on the breakpoint processing, and weld from the previous welding position when restarting.


● With breakpoint processing function, if the spot welding process breaks down, it can be re-opened to continue spot welding from the last spot welding position, or manually enter the current spot welding position in the interface to start the automatic continuation function.


● The equipment adjustment touch screen adopts the flexible wire harness method, which can be stretched and moved to the debugging position for debugging, and can be fixed in the fixed position during normal production.


● With soldering pin management function, can control the service life of the soldering pin and the number of times it is used.


● Can set 16 groups of spot welding conditions, suitable for welding of different materials.


● Adopt HIWIN module, high precision, low noise, smooth sliding and durable.


● Adopt straight-through design structure (i.e. forward and forward out, or forward and backward out), which can be directly connected to the production line for use. After welding, it can be taken out at the side of the production line.


● Lithium-ion battery assembly equipment adopts high-definition LCD touch screen, simple human-machine interface, easy to operate. Manual programming, CAD drawing, spot welding path import, fast programming. Easy to learn, ordinary workers can set up.


● Aluminium alloy skeleton, imported acrylic protection plate, beautiful, strong sense of technology, visual operation to improve the production safety factor.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



 1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter settings are easy to learn. Support manual programming, CAD maps, import solder joint paths, for fast programming.

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control 0



 2. Cooling system:

Water circulation heat dissipation, instantaneous high-current welding, the welding head always maintains a constant temperature, effectively reducing the loss of welding pins and improving the welding effect.

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control 1



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control 2



Device action flow description



The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device automatically spot



-welds the device to the extraction position (select the discharge method: forward forward out, forward forward out) -- the battery pack is removed



from the fixture -- and the next production cycle is carried out



operation cautions
  •  The same battery pack (manual programming) can only be horizontal spot welding or vertical spot welding, and can not have both   horizontal and vertical spot welding in the same group of batteries. (If multiple spot welding specifications are required, please do   CAD programming.)
  •  The same battery pack can only choose flat pin spot welding or convex spot welding
  •  In a battery pack, the spot welding surface must be flush and of the same height
  •  Clean the end face of the spot welding needle regularly
  •  The whole machine adopts computer control system. Do not link USB device and Internet at will to prevent data loss
Application case



1. Energy storage battery pack        2. Electric bicycle battery pack         3. Power tool battery pack

18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control 3     18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control 4      18650 Lithium Battery Pack Spot Welding Machine 8 Axis Precision Control 5
