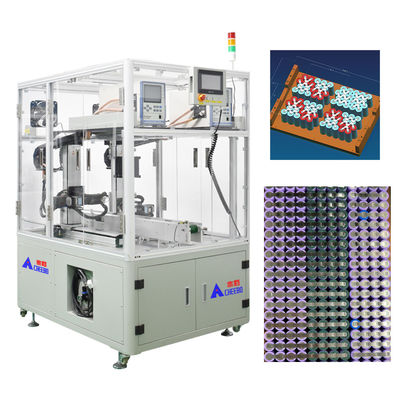

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment

  • Welding Head Features
    Rotary Welding
  • Product Name
    8-axis Double-sided Lithium Battery Spot Welding Machine
  • Purpose
    Welding Nickel Sheet Of Battery Pack
  • General Power Transient Load Rate
    20%
  • Welding Pen Tip Material
    ODSC
  • Condition
    New
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment

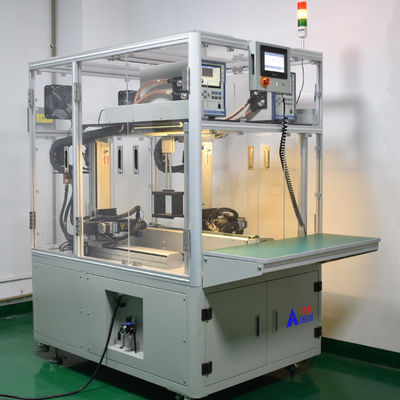

Equipment introduction



● Automatic lithium battery spot welding machine, using self-developed electric precision rotary welding head, can rotate 135 °for welding, suitable for all kinds of irregular nickel sheets, with anti-sticking needle effect.

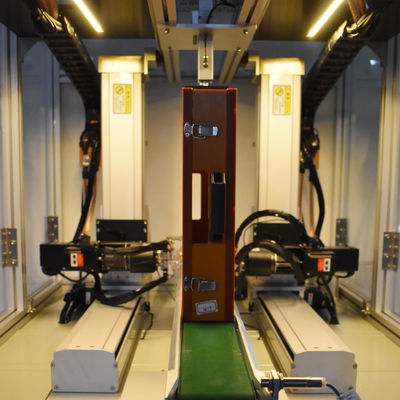

● The CBMN8-5036 double-sided lithium battery spot welding machine can be operated independently on the left and right platform, and the welding path can be set independently according to different welding needs.


● The CBMN8-5036 8-axis lithium battery spot welding machine has the function of automatically testing whether the fixture is in place.


● Automatic alarm of explosive welding and virtual welding equipment, automatic area repair welding, manual adjustment of single point repair welding.


● Install the origin reset function, that is, if there are abnormal problems caused by shutdown during spot welding, you can manually return to the origin, turn on the breakpoint processing, and weld from the previous welding position when restarting.


● With breakpoint processing function, if the spot welding process breakpoint, can be re-opened, from the last spot welding position to continue spot welding, or manually enter the current spot welding position in the interface to start the automatic continue function.


● The equipment adjusting touch screen adopts flexible harness mode, which can be stretched and moved to the debugging position for debugging, and can be fixed in the fixed position during normal production.


● It has the function of welding needle management, which can control the service life and times of welding needle.


● 16 groups of spot welding conditions can be set, which is suitable for the welding of different materials.


● Using HIWIN module, high precision, low noise, smooth sliding, durable.


● It adopts straight-through design structure (that is, forward and backward, or forward and backward), which can be directly connected to the production line.


● After the welding is completed, it can be taken out on the side of the production line.


● Lithium-ion battery assembly equipment uses high-definition LCD touch screen, the man-machine interface is simple, easy to operate.


● Manual programming, CAD drawing, spot welding path import, fast programming.


● It is easy to learn and can be set by ordinary workers.


● Aluminum alloy skeleton, imported acrylic protective board, beautiful and generous, strong sense of science and technology, visual operation to improve production safety factor.



Application case



1. Energy storage battery pack        2. Electric bicycle battery pack         3. Power tool battery pack

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment 0     Cylindrical Power Battery Welding Machine Can Customization Welding Equipment 1      Cylindrical Power Battery Welding Machine Can Customization Welding Equipment 2



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.



Cylindrical Power Battery Welding Machine Can Customization Welding Equipment 3



 2. Electric rotating welding head

The sonotrode can be rotated 135° for welding, suitable for special-shaped nickel sheets, and also has an anti-stick pin function. Built-in pressure sensor, which can monitor and control the instantaneous output pressure of the welding head.

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment 4



 3. Cooling system:

Water circulation heat dissipation, instantaneous high-current welding, the welding head always maintains a constant temperature, effectively reducing the loss of welding pins and improving the welding effect.

Cylindrical Power Battery Welding Machine Can Customization Welding Equipment 5



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding





Device action flow description



The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device automatically spot



-welds the device to the extraction position (select the discharge method: forward forward out, forward forward out) -- the battery pack is removed



from the fixture -- and the next production cycle is carried out



operation cautions
  •  The same battery pack (manual programming) can only be horizontal spot welding or vertical spot welding, and can not have both   horizontal and vertical spot welding in the same group of batteries. (If multiple spot welding specifications are required, please do   CAD programming.)
  •  The same battery pack can only choose flat pin spot welding or convex spot welding
  •  In a battery pack, the spot welding surface must be flush and of the same height
  •  Clean the end face of the spot welding needle regularly
  •  The whole machine adopts computer control system. Do not link USB device and Internet at will to prevent data loss
