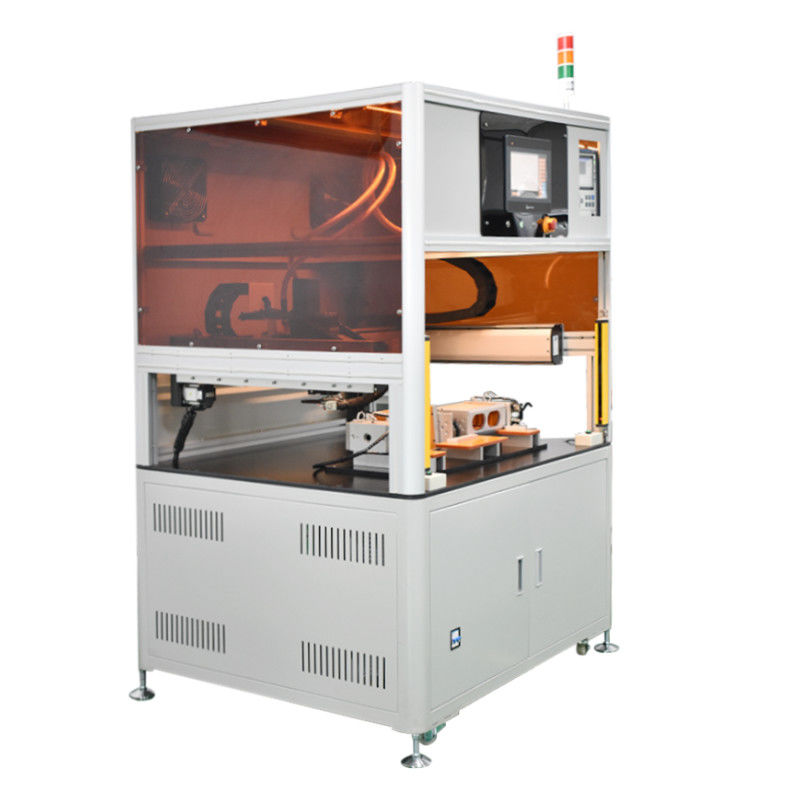

Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding

Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding

  • High Light

    CE Automatic Battery Spot Welding Machine

    ,

    Multi Function Lithium Battery Welder

    ,

    CE Lithium Battery Welder

  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Weight (KG)
    330 KG
  • After-sales Service Provided
    House Call/video Communication
  • Welding Head Rotation Angle
    135 °
  • Port
    Buyer Designation
  • Spot Welding Pressure
    5KG/F (adjustable)
  • Place of Origin
    Guangdong, China
  • Brand Name
    cheebo Technology
  • Certification
    CE certification
  • Model Number
    CBMO4-1410
  • Minimum Order Quantity
    1 set
  • Price
    EGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden cases
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding

Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding

Equipment introduction

​​● The CBMO4-1710 lithium battery welding single side machine adopts a welding fixture design that can automatically flip. After the A-side welding is completed, it can automatically flip to the B-side welding without the need for manual flipping of the fixture.


​​● The CHEEBO automatic spot welding machine for battery cell welding head can rotate by 135 °, suitable for welding irregular nickel sheets and effectively avoiding needle sticking during the welding process.


​​● Automatic batch spot welding adopts Panasonic servo, with fast welding speed and high accuracy.


​​● Install grating protection on both sides to ensure safe operation of the equipment.


​​● Automatic alarm for explosive welding and false welding equipment, manual adjustment for automatic zone repair welding, single point repair welding.


​​● The cyclical battery automatic tab welding machine adopts Taiwan's silver screw guide rail module, which is high-precision, low noise, smooth sliding, and durable.


​​● High definition LCD touch screen, interactive human-machine interface for easy and convenient operation.


​​● Manual programming, CAD mapping, import spot welding paths, and quickly achieve programming. Easy to learn, production line workers are fully competent.


​​● Independently developing various automated intelligent systems to facilitate device operation and help improve production efficiency.


​​● Equipped with energy switching function, production counting function, welding needle compensation function, manual debugging function, etc. ​​ Can assist in the complete operation of the equipment.


​​● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static. Imported acrylic protective board, beautiful and elegant with strong sense of technology, visual operation to improve production safety factor.

Technical specification

Production efficiency 3800PCS/H Welding head rotation Angle 1/CFM
Welding thickness 0.02-0.3MM Relocation accuracy 0.1mm
Simplex welding stroke 170MM*100MM Platform load 35KG
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Welding head rotation Angle 0°-135° Welding pressure 600*900*1420MM
XY shaft welding stroke 360MM*500MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Function Introduction

 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding 0





 2. Safety grating protection

Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.



Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding 1

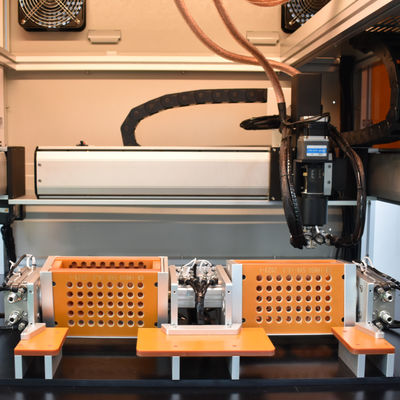

 3. Double station rotating platform

The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.



Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding 2

Application case

1. Energy storage battery pack          2. Electric bicycle battery pack         3. Power tool battery pack



Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding 3       Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding 4       Automatic Battery Spot Welding Machine Water Cooled Controlled Precision Welding 5

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
