● The lithium battery production Assembly line is a multi axis control machine tool developed by modern automation experts. It has an automatic mechanism with precision transmission and motor control, and effectively controls automatic production equipment in real time.

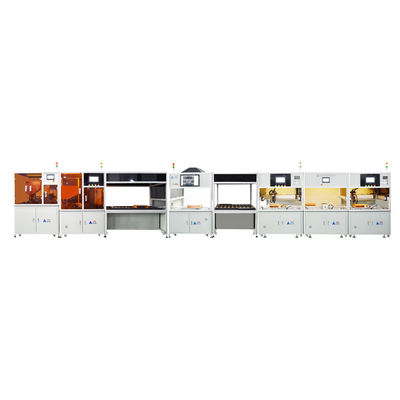

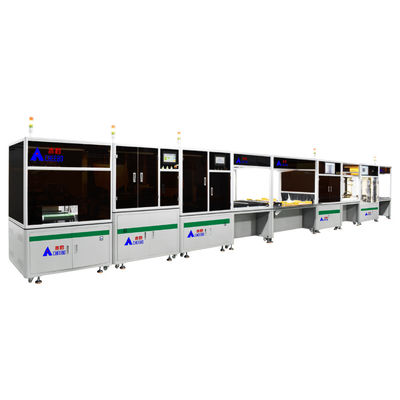

● Lithium battery Assembly line Lithium battery Assembly line is applicable to 18650, 21700, 26650, 32700 and other cylindrical battery assembly lines.
● It is applicable to the assembly and production of battery packs in household appliances/electric bicycles/electric tools/Garden tool/energy storage power supplies and other products.
● Modular design: Each device can be automatically connected and used, or can be used separately and freely combined.
● Automatic feeding mechanism for battery cells: The robotic arm automatically grabs the battery cells and places them on the designated track. It is compatible with 18-21 (diameter) and 65-70 (length).
● Electric core highland barley paper machine: PLC controlled stepper motor and cylinder are used to complete the pasting of highland barley paper on the positive electrode of the finished electric core. The cylinder driven cutting knife is used for stamping and pasting four battery cells at once. The slices are made of high-speed steel material with high wear resistance.
● Battery sorting machine: an automatic sorting equipment suitable for testing the voltage and internal resistance of cylindrical batteries of various specifications. It is compatible with 18-21 (diameter) and 65-70 (length). It has the function of scanning and storing data for battery cells. 7-speed sorting.
● CCD visual inspection equipment: A multi-purpose visual inspection system based on CCD industrial camera and machine vision technology.
● Battery automatic spot welding machine: suitable for automatic single sided spot welding of cylindrical batteries of various specifications.
● Fixture rotation system: automatically senses the fixture reaching its position, and the rotation mechanism clamps the fixture to rotate, causing the fixture to return to the next program.
| Loading mechanism | Applicable specifications: 18-32 (diameter) | Grab speed: 10P/S | Feeding quantity: 4 boxes |
| Cell pasting highland barley paper machine | Applicable specifications: 18-21 (diameter) | Production efficiency: 60-70PPM | Maximum punching speed: 99.99% |
| Cell sorter | Applicable specifications: 18-32 (diameter) | Production efficiency: 50-70PPM | Voltage internal resistance: 0.1 * 0.5 |
| CCD polarity detection | Test range: 250mm * 400mm | Production efficiency: 3-6PPM | Lens pixel: 500W HD pixel |
| Automatic spot welder A side | Welding thickness: 0.02-0.5MM | Production efficiency: 2400P/H | XY axis welding stroke: 400*250MM |
| Fixture flipping system | Operation mode: Manual/automatic | Production efficiency: Follow the production line | Turnover Angle: 180° |
| Automatic spot welder A side | Welding thickness: 0.02-0.5MM | Production efficiency: 2400P/H | XY axis welding stroke: 400*250MM |
The battery is loaded into the hopper of the paper paste machine →→ Automatically paste the positive electrode
pad sticker →→ the battery automatically enters the separator →→ the separator sweeps the test data for archiving →→
The battery is sent into the corresponding receiving tank → The workers take out the loading fixture in groups →
push the CCD automatic polarity detection screen → the unqualified manual correction is automatically sent out →
the workers cover the upper plate of the fixture →→ push the spot welder Automatic spot welding on side A→→
The machine automatically turns over to side B for welding completion →→ Take out the welded battery pack fixture
and return it to the frontto enter the next escape ring →→ Install the BMS board after the battery pack welding
inspection →→Machine or manual welding of the BMS board → Workers line and install auxiliary materials →→
Test the battery pack parameters fail to pass the inspection. →→ Send aging inspection to aging workshop →→
Packaging workshop packing
1. Energy storage battery pack 2. Electric bicycle battery pack 3. Power tool battery pack
