Energy Storage CCD Tester

Energy Storage CCD Tester

  • High Light

    Energy Storage CCD Tester

    ,

    Multi Purpose CCD Tester

    ,

    Energy Storage CCD Inspection Machine

  • Location Of Exhibition Hall
    Shenzhen,China
  • Be Applicable To
    Lithium Battery Cell Polarity Detection
  • Equipment Weight
    150KG
  • Overall Dimension
    1200*1000*1870mm
  • After-sales Service
    Provide Online And Video Technical Services
  • Mechanical Test Report
    Provide
  • Place of Origin
    Shenzhen,China
  • Brand Name
    Cheebo
  • Model Number
    CB-CCD
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

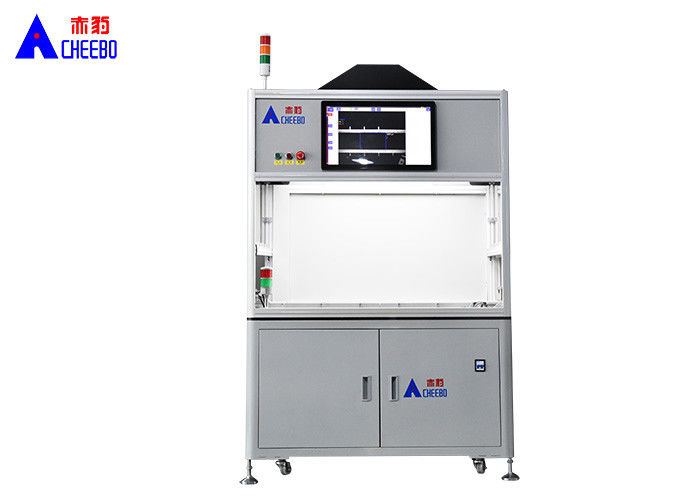

Energy Storage CCD Tester

Energy storage battery pack Battery polarity detection device PACK device

CB-CCD polarity detection equipment

Equipment characteristics

  • A multi-purpose visual inspection system using machine vision technology based on CCD industrial cameras for inspection.
  • Suitable for polarity detection of a variety of cells, save labor costs, can carry out high repeatability work.
  • CCD visual detection can work stably for a long time with good reliability and high detection accuracy.
  • With manual debugging function, you can fine-tune each test and save the parameters of the test area. You can also adjust for using the overall offset function.
  • With counting function, you can count the output, with fixture automatic in place detection function.
  • A maximum of 100 groups of templates are supported.
  • With adjustable light height design, can be used in all kinds of lighting environment.

Energy Storage CCD Tester 0

Equipment technical parameter

Detection range 250*400mm
Detection efficiency 3-6PPM
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence
Detection fill High lumen light filler
Fixture entrance width Fixture entrance width
Device system algorithm CheeboCCD professional system algorithm
Detection reminder mode Sound and light alarm, error location color change
Lens pixel 500W pixel HD lens
Accuracy 99.99%
Transmission mode Belt transmission
Display mode Graphical display
Application scenario Polarity detection of a variety of cells

Company profile

  Shenzhen Cheebo Technology Co., Ltd. is a professional engaged in resistance welding technology and lithium battery assembly automation equipment research
Development, production, sales and service as one of the high-tech enterprises. Engaged in lithium battery assembly equipment research and development for 25 years, note
Focus on product quality research and development. The company has a strong technical team, each team has more than 5 years of work experience, since the establishment
Since the independent research and development of dozens of products, best-selling domestic and foreign markets.
The products are suitable for high melting point metals such as copper, aluminum, nickel, stainless steel, carbon steel, dissimilar metals and other non-ferrous metals
Weld. Widely used in
Power batteries, electric tools, electric vehicle batteries, communication equipment, digital products, electronic components, medical instruments, gold
It belongs to products, household appliances, automobile manufacturing, mechanical and electrical parts, aerospace and other industries.

Energy Storage CCD Tester 1Energy Storage CCD Tester 2Energy Storage CCD Tester 3Energy Storage CCD Tester 4

Business scope

  • Customized development and upgrading of non-standard automatic welding production line for lithium battery pack.
  • Automatic production line of cylindrical power battery pack.
  • Automatic, semi-automatic resistance welding spot welder.
  • Transistor, DC inverter, DC energy storage, multi - pulse high precision industrial welding power supply.
  • Cylindrical cell automatic pasting machine, sorting machine.
  • Welding technical support and service.

More than 25 years of industry research and development, production and service experience, modular design, customized production, to meet the different needs of customers, for customers
Households to provide quality, safety, environmental protection, high efficiency, energy saving products and services.

Cooperative partner

Energy Storage CCD Tester 5



Certificate of honor

Energy Storage CCD Tester 6

Exhibition

Energy Storage CCD Tester 7



Service process

Energy Storage CCD Tester 8

Packing and transportation

Energy Storage CCD Tester 9

Q&A

1. Who are We?

We are Shenzhen cheebo Technology Co., LTD., headquartered in Shenzhen, China, is a professional engaged in resistance welding technology and automatic welding equipment research and development, production, sales, service as one of the high-tech enterprises. The company has a strong level of innovation and technology and product development ability, since the establishment of independent research and development of dozens of products, best-selling domestic and foreign markets. The company has a total of 31-50 employees.

2. How can we ensure quality?

Pre-production of samples prior to mass production, final inspection and video recording before delivery.

3. What can you buy from us?

Lithium battery automatic production line, battery spot welding machine, pen pad spot welding machine, battery sorter, battery positive electrode paste insulator paper, battery comprehensive tester, battery CCD polarity detection equipment

4. Why should you buy from us instead of other suppliers?

We have a strong technology research and development team, has more than 20 years of industry research and development, production and service experience. Adopt modular design, customer customized production, to meet the different needs of customers, to provide customers with high-quality, safe, environmental protection, high efficiency, energy saving products and services. The company has a variety of specifications and models of mechanical equipment, a variety of series to choose from.
