Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility

Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility

  • High Light

    18650 Battery CCD Tester

    ,

    Cylindrical CCD Tester

    ,

    Multifunctional Battery Pack Testing Machine

  • Function
    Cell Voltage Internal Resistance Test And Sorting
  • Weight
    200KG
  • After-sales Service
    Online Service/on-site Service
  • Product Name
    10 Gear Sorting Machine
  • Overall Dimensions
    139CM*82CM*136CM
  • Power Supply
    220V/110V
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility

Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility


Equipment introduction

● CBFXH-10 multifunctional cylindrical battery testing machine is an automatic sorting equipment suitable for various specifications of cylindrical battery voltage resistance test.


● Applicable battery cell specifications: 18650/21700/226650/26700/32650/32700, etc.


● Complete the number of cloaks of finished pillar products per hour of more than 4,000 pieces.


● The operation interface is simple and has a one -click generation function. You only need to enter the internal block of the starting voltage and the corresponding interval to complete the parameter settings.


● With manual parameter modification function, each gear can be adjusted by fine -tuning or one -click modification function.


● Use 10+1 design, a total of 11 gears. 10 good grooves, and the back -end independent setting 1 bad product storage area.


● Adopt the PLC+upper machine control method, the upper machine records, displays sorting data in real time, can be saved and exported sorting data.


● Using Mitsubishi PLC+imported Panasonic servo control unit+4 probes. The mechanical structure design is simple and generous, and the system performance is stable.


● Adopt a 19 -inch one -type industrial -grade computer, which are displayed in real time by sorting data. The human -computer interaction is simple and convenient.


● Failure information reminder function, fault sound light alarm, can quickly diagnose faults.


● Aluminum alloy structure, static powder spraying process, scratching, anti -rust, anti -static.



Equipment dimensional drawing

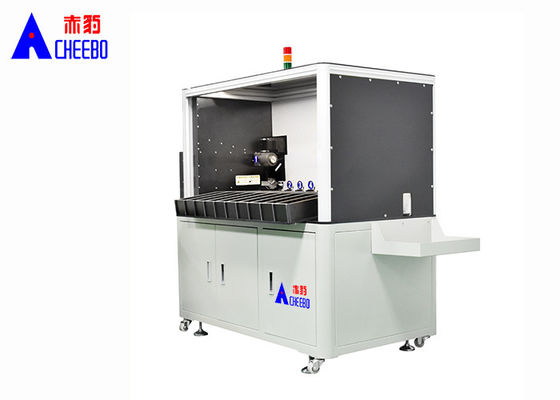

Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility 0

Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting




Function Introduction



 1. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.

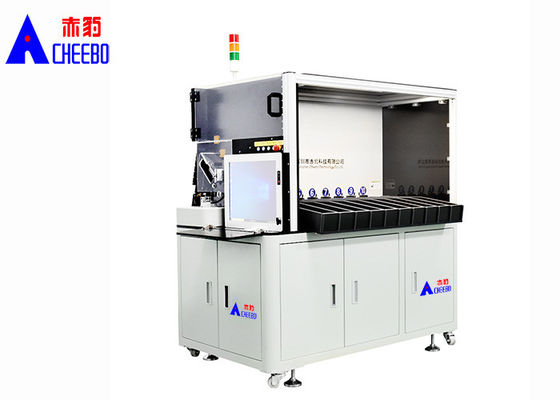

Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility 1



 2. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.



Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility 2



 3. Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.



Automatic Cylindrical Battery Cell Sorting Machine Strong Compatibility 3



Operation and maintenance
  1.  Only use the machine when the machine is in good condition, the ground protection is good, and all the functions of the machine are normal
  2.  Distance from walls and other facilities ≥1000mm
  3.  Ground requirements: ground level, four foot cup adjustment level
  4.  Height space: ≥2500mm
  5.  Workshop working environment requirements: 10℃ -32 ℃
  6.  Clean welding dust from all parts of the equipment every day
  7.  Check every week that all parts are in good condition
  8.  Monthly check the lubrication status of each moving part timely lubrication (using 0# grease)
  9.  Operation must be in accordance with the specifications of the operation
