Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment

Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment

  • High Light

    PLC Cylindrical Battery Spot Welding Machine

    ,

    Cell Voltage Test Spot Welding Machine

    ,

    PLC Battery Cell Welding Machine

  • Purpose
    Cylindrical Cell Test
  • Control Mode
    PLC
  • Production Efficiency
    50-70 PPM
  • Frame Material
    Aluminium Alloy
  • Applicable Specifications
    5-70 (length)
  • Product Name
    10 Gear Sorting Machine
  • Place of Origin
    shenzhen,China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    1 week
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Month

Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment

Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment


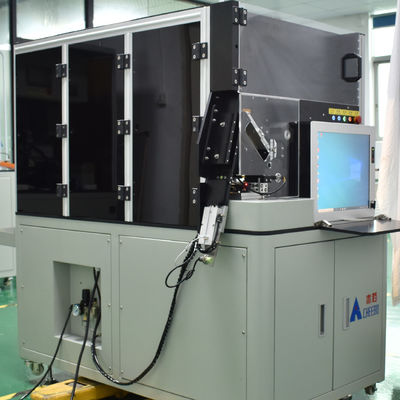

Equipment introduction



This battery separator is suitable for automatic sorting equipment for testing the voltage and internal resistance of cylindrical batteries of various specifications.


More than 4,000 cylindrical finished batteries are sorted every hour.


Adopt 10+1 gear design, a total of 11 gears. The back end is independently set with 1 NG slot and 10 good product stalls.


Using PLC+ upper computer control mode, the upper computer records and displays sorting data in real time, and the sorting data can be saved and exported.


Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design is adopted. The mechanical structure design is simple and generous, and the system performance is stable.


Adopt an integrated industrial computer, which makes human-computer interaction simple and convenient.


Easy-to-operate interface, with one-button generation function, only need to input the initial voltage internal resistance, input the corresponding interval, you can complete the parameter setting.


With the function of manually modifying parameters, fine adjustment can be made for each gear, and adjustment can also be made by using the one-button modification function.


Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention and antistatic.



Internal resistance tester optional



Tester Specifications and models
Brand Model Sorting accuracy/Resolution
HLOK 3561

Voltage:±3 dgt

Internal resistance:±5 dgt

HOPETECH HP3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg

HK3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg





Function Introduction



 1. Italic design

The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.



Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment 0



 2. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.

Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment 1



 3. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment 2





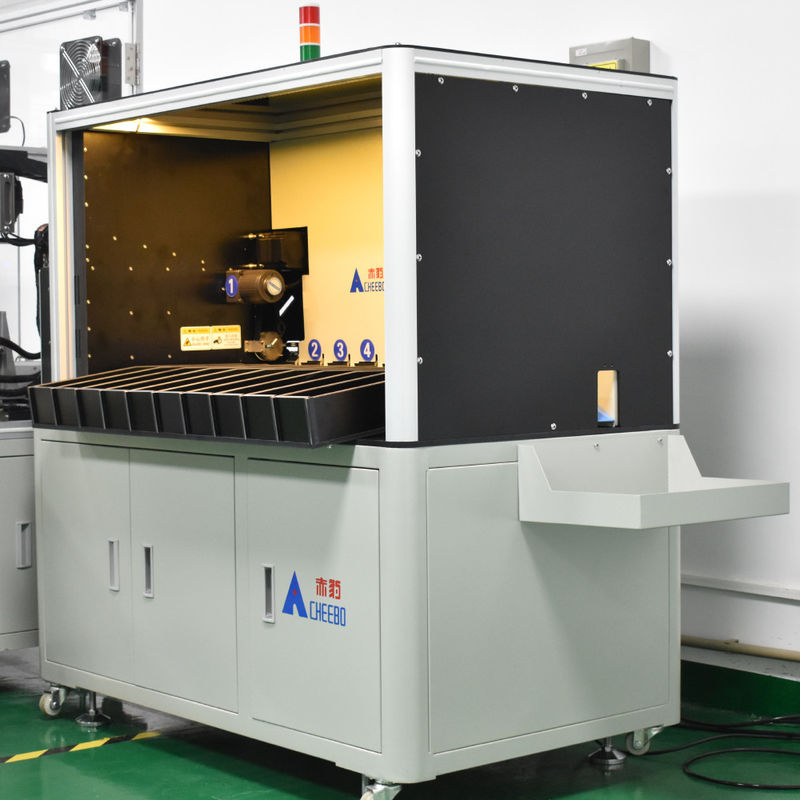

Equipment analysis diagram

Mitsubishi PLC Control Cell Voltage Test Cylindrical Battery Pack Assembly Equipment 3

1. Battery charging hopper 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor





Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting




FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
