Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder

Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder

  • Main Selling Point
    High Precision
  • Core Component
    PLC, Transistor Power Supply, Foot Switch, Welding Head, Control Box
  • Equipment Weight
    60KG
  • Overall Dimension
    600*900*1420mm
  • Voltage
    220V 50/60Hz
  • Core Component Warranty
    1 Year
  • Mechanical Test Report
    Provide
  • Place of Origin
    shenzhen,china
  • Brand Name
    cheebo
  • Model Number
    CBLQ-5B
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder

Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder

Equipment features:

  • The bipolar output eliminates the welding polarity effect and makes the energy on both sides of the welding electrode consistent.
  • Using the energy stored in capacitors for welding, it can also be used in small power supply conditions.
  • The welding power supply is controlled by switching mode, which can realize small and efficient welding with high output.
  • The welding current of the power supply rises fast, achieving high quality welding in a short time.
  • Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.
  • 5.7 "HD LED display, convenient and intuitive device parameter adjustment, can store multiple programs.
  • There are three welding modes: constant voltage, constant current and constant voltage and current combination.
  • The output current has the function of polarity switching, effectively eliminating the polarity in the welding process.

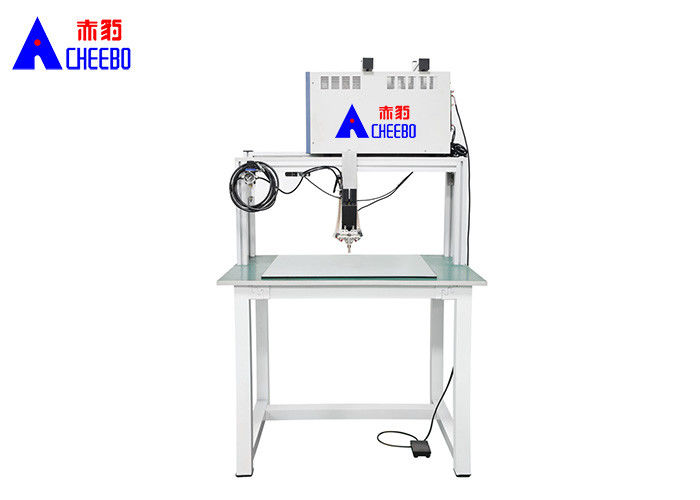

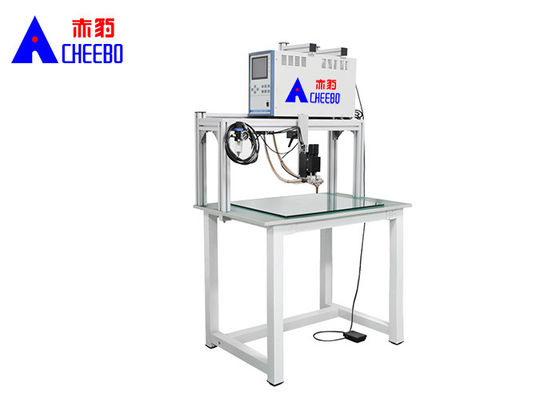

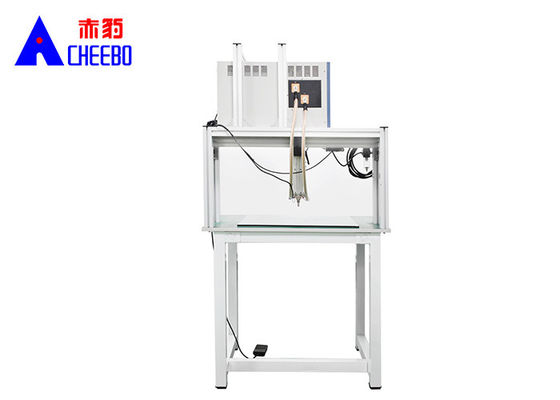

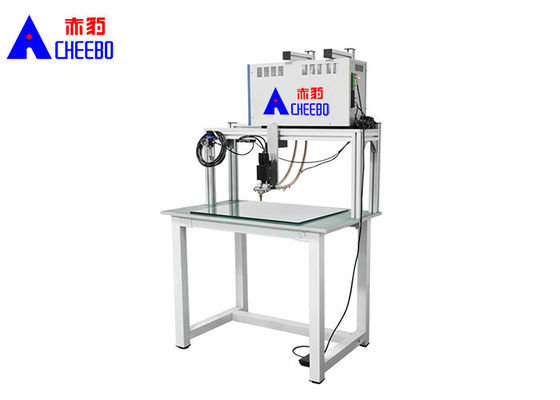

Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder 0Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder 1Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder 2Battery Tab Spot Welding Machine Transistor Type Battery Pack Spot Welder 3

Equipment technical parameter


Welding mode Single side double point balance welding
Welding thickness 0.04-0.25mm
Supply current 5000A
Spot welding mode A raised or pointed point
Equipment power 12KW
Driving mode Electric/Pneumatic (optional)
Table top and weld head height 250MM (maximum pitch) adjustable
Welding power supply transistor
Welding speed 200P/M (Max)
Welding pressure 5KG/F (adjustable)

Q&A


1. Who are We?

We are Shenzhen cheebo Technology Co., LTD., headquartered in Shenzhen, China, is a professional engaged in resistance welding technology and automatic welding equipment research and development, production, sales, service as one of the high-tech enterprises. The company has a strong level of innovation and technology and product development ability, since the establishment of independent research and development of dozens of products, best-selling domestic and foreign markets. The company has a total of 31-50 employees.

2. How can we ensure quality?

Pre-production of samples prior to mass production, final inspection and video recording before delivery.

3. What can you buy from us?

Lithium battery automatic production line, battery spot welding machine, pen pad spot welding machine, battery sorter, battery positive electrode paste insulator paper, battery comprehensive tester, battery CCD polarity detection equipment

4. Why should you buy from us instead of other suppliers?

We have a strong technology research and development team, has more than 20 years of industry research and development, production and service experience. Adopt modular design, customer customized production, to meet the different needs of customers, to provide customers with high-quality, safe, environmental protection, high efficiency, energy saving products and services. The company has a variety of specifications and models of mechanical equipment, a variety of series to choose from.
