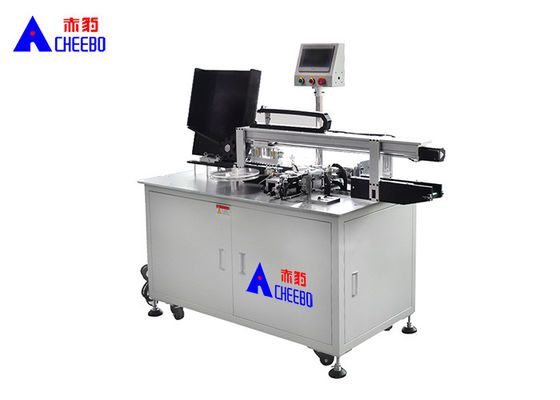

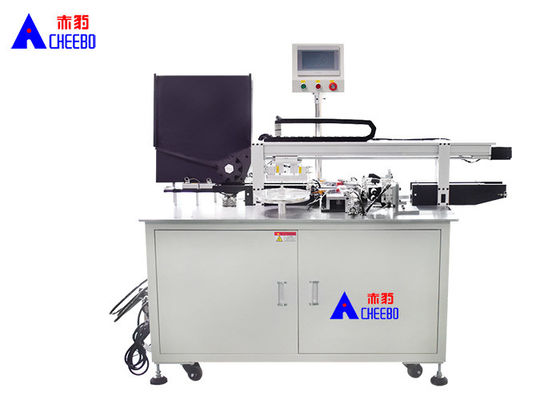

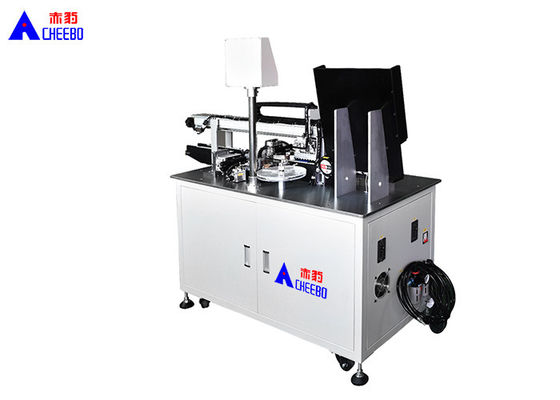

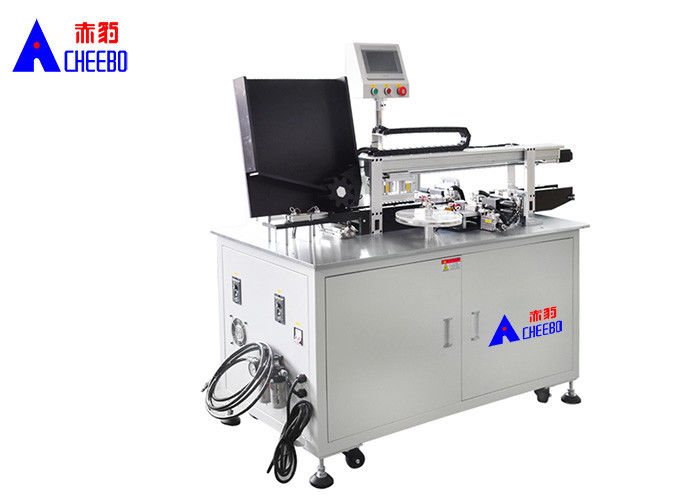

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine

  • High Light

    Automated Cell Spot Welder

    ,

    Cylindrical Cell Spot Welder

    ,

    Battery Spot Welder Single Row Type

  • Be Applicable To
    Cylindrical Cell Single Row Spot Welding
  • Welding Thickness
    0.01-0.2
  • Production Efficiency
    2600PCS/H
  • Weight
    330kg
  • After Sale
    Provide Online And Video Technical Services
  • Use
    Spot Welding
  • Voltage
    Ac 220v50-60hz
  • Core Component Warranty
    1 Year
  • Place of Origin
    Shenzhen,China
  • Brand Name
    cheebo
  • Certification
    CE certification
  • Model Number
    CBMN-1810
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    T/T
  • Supply Ability
    1 set (8 days) 2-5 sets (15 days) 6-10 sets (25 days) > 10 sets (to be determined)

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine



Application scope of the product

Suitable for lithium battery assembly, it is a series-parallel welding equipment for 18650 single-row battery.


The equipment has positive and negative pole turning function and automatic grabbing function, and the length of nickel sheet is set freely.
Suitable for vacuum cleaner battery, walkie-talkie battery, Bluetooth speaker battery and other fields.
The system adopts liquid crystal display, which is easy to operate, stable and reliable, meets the standard requirements of the equipment for the environment, and has a significant effect on improving the operation mode and improving the safety of equipment operation. it is an efficient equipment for successfully solving  spot welding.


Equipment introduction

● Operation steps: loading, feeding, gripping, welding, and discharging.


● Single row battery pack welding, special high degree of automation double-sided spot welding, automatic belt transmission and automatic belt cutting, total positive and total negative reserved welding positions, Umpolung combined arrangement


● 12 battery cells in series/parallel can be freely combined, such as 1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc


● Using a dual welding head station for welding, both positive and negative electrodes are welded simultaneously to improve production efficiency.


● After setting the parameters, the entire box is directly soldered into the cell equipment to produce the product.


● It can weld 2600 battery cells per hour, with high production efficiency and saving labor. Only one person can operate the entire machine.


● Adopting an automatic welding lens feeding device, it eliminates the need for manual placement of lenses, making it simple, convenient, and labor-saving. Can be used for pre welding multiple rows of battery packs into rows.


● All parts of the whole machine are imported brands, with long service life, low failure rate alloy skeleton, imported acrylic protective plate, beautiful and elegant, strong sense of science and technology, and visual operation to improve production Factor of safety.



Function Introduction



Production efficiency 2600PCS/H Welding source Multiple-pulse
Welding thickness 0.02-0.2MM Dimensions 1800*1150*1800
Working air pressure 3.0-6.0Mpa Mode of movement Automatic continuous
Grab cell 10PCS (up to 12PCS) Welding pressure 5KG/F(adjustable)
Power source specification 220V 50/60HZ Type of cooling Forced water circulation cooling
Electrode material Copper alumina Weight 330KG



Debugging project
  1. Positive and negative polarity reverses
  2. Spot welding power supply parameter setting
  3. Spot welding pressure, stroke adjustment
  4. Nickel sheet extension length
  5. Spot welding positioning
  6. Spot welding spacing setting
  7. Welding position coordinate
Function Introduction



1. Double side welding
Single-row battery pack welding, special high degree of automation double-sided spot welding, automatic tape transfer automatic cutting, total positive total negative reserve welding position, polarity conversion combination arrangement

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine 0



2. Wave wheel transmission

Automatic transmission of cells to improve production speed.

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine 1



3. Random combination
In series/parallel 12 cells,1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc

Single Row Spot Welding 18650 Automatic Battery Spot Welding Machine 2



FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
