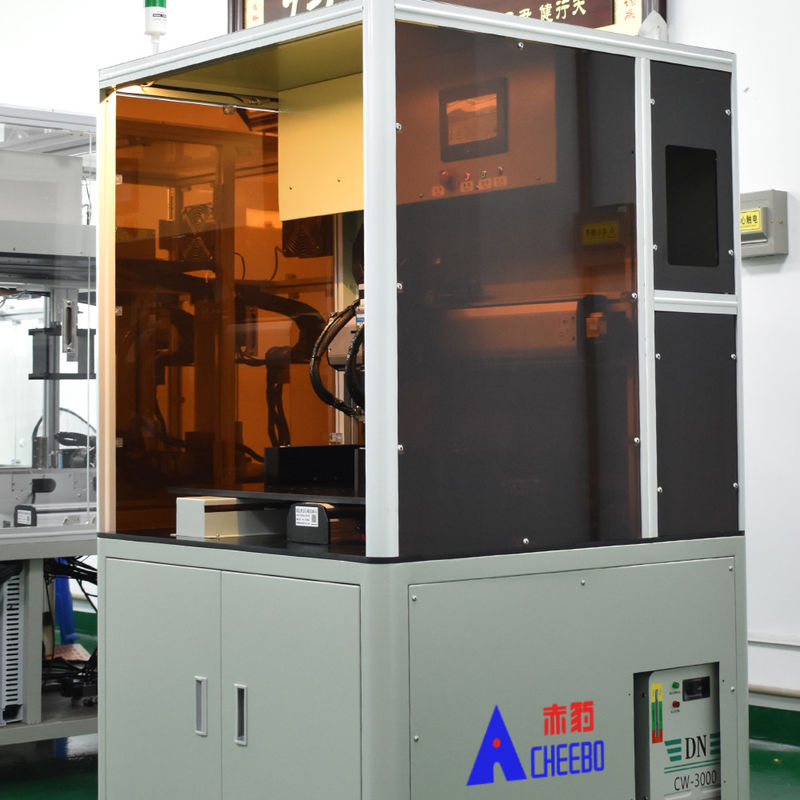

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder

  • High Light

    Lithium Battery Pack Assembly Equipment

    ,

    Lithium Cylindrical Battery Welder

    ,

    Automatic Cylindrical Battery Welder

  • Condition
    New
  • Air Source Specification
    1/CFM
  • Welding Pressure
    10KG/F (adjustable)
  • Rated Duty Cycle
    20%
  • XY Shaft Welding Stroke
    400MM*600MM
  • Product Name
    Standard Single Side Lithium Battery Spot Welding Machine
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBM04-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder


Equipment introduction



● Lithium battery pack spot welding machine, single-sided automatic welding, modular design silent, stable and efficient.


● With heightened design, it can be used for automatic welding of protection plates in various battery pack schemes, and one machine is dual-purpose.


● CBMO4-6040 lithium battery pack spot welding machine adopts left and right platform design, left and right platforms do not interfere with each other, can also be used only by using the platform.


● Lithium battery spot welding machine to explosion welding, virtual welding equipment automatic alarm, manual adjustment automatic area repair welding, single spot repair welding.


● Cheebo's self-developed battery automatic spot welding has a number of automatic intelligent systems, convenient equipment setting and operation, which helps to improve production efficiency.


● Cheebo lithium battery welder has energy switching function, production counting function, welding pin compensation function, manual debugging function, etc.


● The welding direction can be adjusted according to the slot of the nickel sheet of the battery pack, and the maximum rotation angle of the welding pin is 135°, which effectively avoids the welding error caused by the inability to rotate the angle.


● Automatic batch spot welding has manual programming, CAD drawing, spot welding path import functions, and can be programmed quickly. Easy to learn, ordinary workers are fully capable.


● The automatic battery pack spot welding machine adopts 7-inch high-definition LCD touch screen, which has a simple human-computer interaction interface and convenient operation.


● Lithium battery spot welding machine equipment adopts HIWIN guide rail module, which has high precision, low noise, smooth sliding and durable.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, anti-rust, anti-static.


● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve production safety factor.



Range of application



The equipment is suitable for fully automatic single-sided spot welding of various cylindrical cell combinations such as 18650, 21700, 26650, 32700, etc.



It is suitable for the production of NB/Power Tool/Gardening Tool/High Power/Energy Storage Power Station Battery/Electric Motorcycle/Electric Vehicle and other modular lithium battery pack spot welding use, and can be used with lithium battery pack production line.



This equipment is a multi-axis control machine developed by modern automation expert technology, with precision transmission and motor control mechanism automatic walking mechanism, effective real-time control processing of automatic production equipment.



Technical specification



Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding pressure 5KG/F Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding thickness 0.02-0.3MM
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction





1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder 0

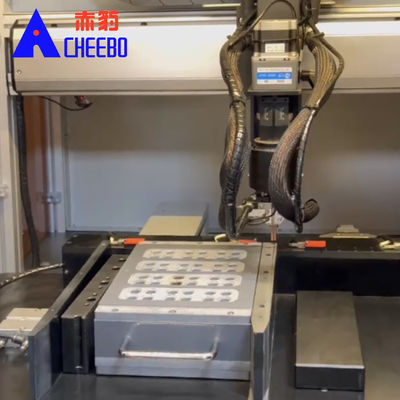

 2.  Electric rotating welding head

The welding head can be welded by 135° rotation, suitable for special-shaped nickel sheet, and also has the function of anti-sticking needle.

The built-in pressure sensor can monitor and control the instantaneous output pressure of the welding head.

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder 1



 3. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

Lithium Battery Pack Assembly Equipment Automatic Cylindrical Battery Welder 2
