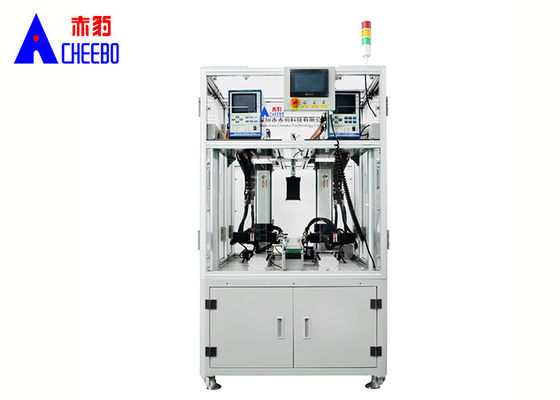

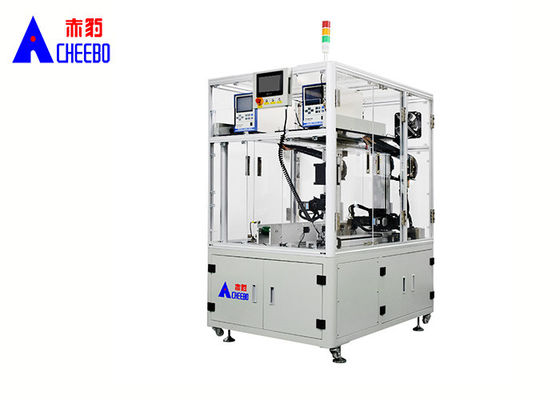

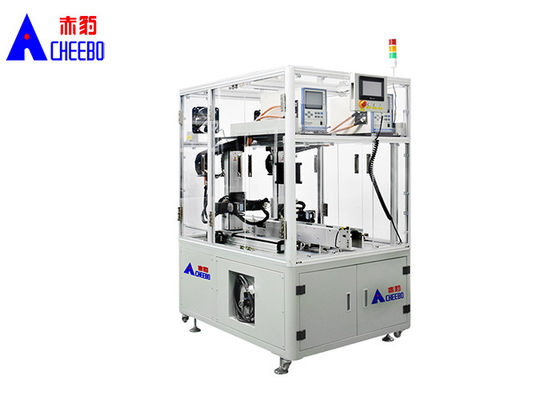

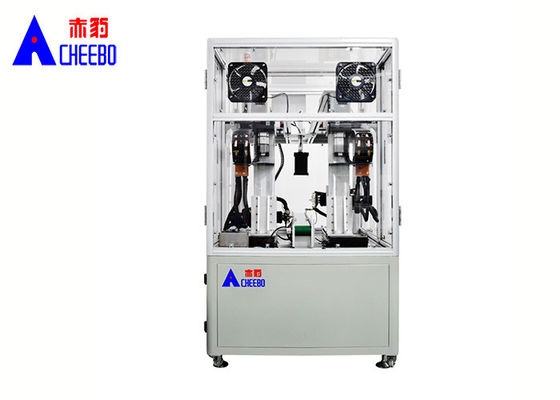

Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided

Cylindrical Automatic Battery Spot Welding Machine 18650 Double Sided

  • High Light

    Cylindrical Automatic Battery Spot Welding Machine

    ,

    Cylindrical 18650 Battery Welding Machine

    ,

    Double Sided 18650 Battery Welding Machine

  • Main Selling Point
    Easy To Operate, Automatic Double-sided Welding, Special Shape Nickel Sheet Welding
  • Be Applicable To
    Mass Welding Of Cylindrical Battery, Special Shape Nickel Sheet Welding
  • Location Of Exhibition Hall
    Shenzhen,China
  • After Sale
    Provide Online, Video Technology Services
  • Mechanical Test Report
    Provide
  • Core Component Warranty
    1 Year
  • Welding Thickness
    0.02-0.3(depending On Power Supply Selection)
  • Production Efficiency
    3600PCS/H
  • Place of Origin
    Shenzhen,China
  • Brand Name
    Cheebo
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    $16500/ set-$20350/ set
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

Cylindrical Automatic Battery Spot Welding Machine 18650 Double Sided

Cylindrical Automatic Battery Spot Welding Machine 18650 Double Sided

Equipment features:

  • An automatic double-sided welding equipment developed to improve production efficiency can weld 3600 cells in one hour.
  • Welding head can be 135° rotating welding, double platform independent operation, suitable for all kinds of special shape nickel sheet.
  • Blast welding, welding equipment automatic alarm, manual adjustment of automatic area repair welding, single point repair welding.
  • Hd LCD touch screen, interactive man-machine interface is easy to operate.
  • Manual programming, CAD map, import spot welding path, fast programming. Simple and easy to learn, production line workers can be fully competent.
  • Energy switching function, can store 4 groups of energy mode, automatically switch different materials using different energy welding.
  • Production count function, set production quantity, complete output automatically stop.
  • Welding needle compensation function, set the number of welding needles, after reaching the number of automatic reminding of needle maintenance.
  • Manual debugging function can fine-tune the welding head for each point and save the spot welding parameters (easy to modify the coordinates of the welding spot), and can also use the one-button correction function to adjust.
  • Adopt through-type design structure (can be forward forward or forward after out), can be connected with the production line through the use, after the completion of welding in the pipeline side can be taken out.
  • Aluminum alloy skeleton, imported acrylic shield plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.

Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 0Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 1Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 2

Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 3



Equipment technical parameter
Device name CBWX-5036 eight axis rotating double sided spot welder
Production efficiency 3600PCS/H
Welding thickness 0.02-0.3 (depending on power supply selection)
Power supply specification 220V50/60 Hertz
Power consumption 0.8KW in busy hours and 0.2KW in idle hours
Welding power supply Transistor
Mode of movement Automatic continuity
Cooling mode Forced water circulation cooling
Equipment travel 600*400(mm)
Electrode material Copper alumina
Overall dimension 1400*1000*1680mm
Equipment weight 330KG
Application scenario Cylindrical battery mass welding, special nickel sheet welding



Details and finished product display


Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 4Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 5Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 6

Company profile




    Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 7



Exhibition activity


Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 8



Partial partners


Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 9

Service process


Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 10



Packing and transportation


Cylindrical  Automatic Battery Spot Welding Machine 18650 Double Sided 11

Q&A


1. Who are We?

  We are Shenzhen cheebo Technology Co., LTD., headquartered in Shenzhen, China, is a professional engaged in resistance welding technology and automatic welding equipment research and development, production, sales, service as one of the high-tech enterprises. The company has a strong level of innovation and technology and product development ability, since the establishment of independent research and development of dozens of products, best-selling domestic and foreign markets. The company has a total of 31-50 employees.

2. How can we ensure quality?

  Pre-production of samples prior to mass production, final inspection and video recording before delivery.

3. What can you buy from us?

 Lithium battery automatic production line, battery spot welding machine, pen pad spot welding machine, battery sorter, battery positive electrode paste insulator paper, battery comprehensive tester, battery CCD polarity detection equipment

4. Why should you buy from us instead of other suppliers?

  We have a strong technology research and development team, has more than 20 years of industry research and development, production and service experience. Adopt modular design, customer customized production, to meet the different needs of customers, to provide customers with high-quality, safe, environmental protection, high efficiency, energy saving products and services. The company has a variety of specifications and models of mechanical equipment, a variety of series to choose from.
