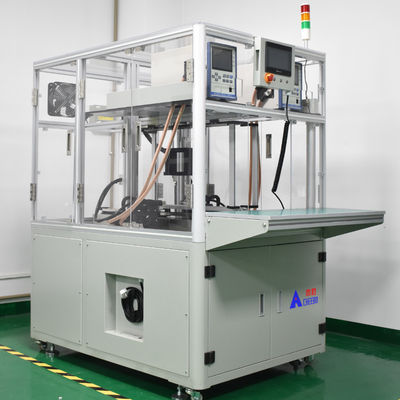

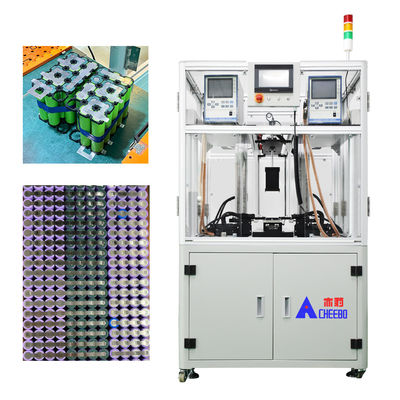

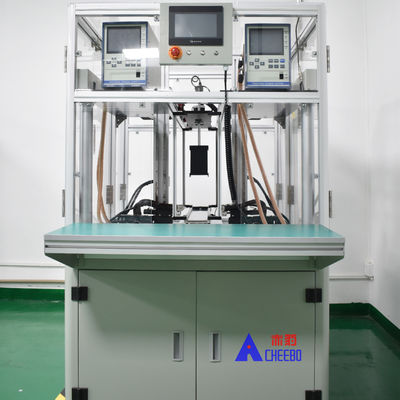

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding

  • Product Name
    5-axis Standard Double-sided Battery Spot Welder
  • Temperature Range
    -10℃-60℃
  • Welding Material
    Copper Alumina
  • Welding Thickness
    0.02-0.3(depending On Power Supply Selection)
  • Production Efficiency / H
    3600P-4000P
  • Core Component Warranty
    3 Year
  • Place of Origin
    Shenzhen.China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN5-6040
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding


Equipment introduction



● The automatic double-sided spot welding machine adopts double-sided spot welding at the same time, the production efficiency is higher without connecting the gas source, and the welding fluctuation caused by the unstable pressure of the gas source is avoided, and the welding speed is fast and the precision is high.


● The battery full-automatic spot welding machine adopts straight-through design structure (can be forward and out).


● The back end is easy to dock with other assembly processes, which makes the battery assembly process easier and faster.


● It is suitable for welding and assembling power battery packs smaller than 0.3MM nickel sheet.


● Lithium battery spot welding machine adopts transistor welding power source, which has the advantages of fast rising current and high welding efficiency.


● Explosion welding virtual welding equipment automatic alarm, manual adjustment of automatic area repair welding, single point repair welding.


● Lithium battery spot welder has the functions of manual programming and CAD drawing.


● The spot welding path can be quickly imported through CAD drawing to realize programming.


● Easy to learn, production line workers can do it.


● The automatic battery spot welding machine adopts high-definition liquid crystal touch screen, and the human-computer interface is easy to operate.


● Independently develop a variety of automatic intelligent systems to facilitate the setting of equipment running status, so that the production capacity is doubled.


● It has energy switching function, production counting function, welding needle compensation function and manual debugging function.


● Panasonic servo motor control, fast response, accurate and efficient control, long service life, not easy to damage.


● Using Taiwan HIWIN module, high precision, low noise, smooth sliding, durable.


● The whole machine adopts imported parts with long service life and low damage rate.


● Aluminum alloy skeleton, imported acrylic shielding board, beautiful and generous sense of science and technology, comprehensive visual operation, improve production safety factor.



Application case



1. Energy storage battery pack       2. Electric bicycle battery pack        3. Power tool battery pack

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding 0     Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding 1      Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding 2



Technical specification
Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation NO Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding



Function Introduction



1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding 3



 2. Electric precision welding head
No need to connect the air source, low noise. The built-in pressure sensor can monitor and control the instantaneous pressure of welding head. Precision welding head, small pressure inertia, soft pressure

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding 4



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Lithium Battery Pack Double-Sided Automatic Spot Welder Battery Welding 5

FAQ

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
