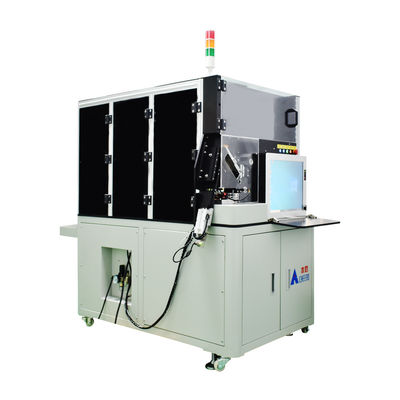

Lithium Cell Sorting Machine  18650

Lithium Cell Sorting Machine 18650

  • High Light

    Lithium Cell Sorting Machine 18650

    ,

    PLC Lithium Cell Sorting Machine

    ,

    Cell Sorter Machine 18650

  • Dimension(L*W*H)
    1280*860*1680(mm)
  • Weight
    150 KG
  • Working Mode
    Automatic
  • Power
    2.5KW
  • Machinery Capacity
    4000±PCS/H
  • Product Name
    Cell Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Lithium Cell Sorting Machine 18650

18650 Battery Cell Sorting Machine Cell Voltage And Internal Resistance Tester


Equipment introduction

● This cell sorting machine is suitable for automatic sorting equipment for cylindrical cell voltage and internal resistance testing of various specifications.


More than 4,000 cylindrical finished cells can be sorted per hour.


Adopt 10+1 gear design, a total of 11 gears. One NG slot and 10 good product stalls are independently set at the back end.


PLC+host computer control mode is adopted, the host computer records and displays the sorting data in real time, and the sorting data can be saved and exported.


It adopts Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design. The mechanical structure design is simple and elegant, and the system performance is stable.


All-in-one industrial-grade computer, human-computer interaction is simple and convenient


The easy-to-operate interface has a one-key generation function. You only need to input the initial voltage internal resistance and the corresponding interval to complete the parameter setting.


With the function of manually modifying parameters, it can be fine-tuned for each gear, and can also be adjusted using the one-key modification function.


Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


Aluminum alloy structure, electrostatic powder spraying process, scratch-resistant, anti-rust, anti-static.



Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Function Introduction



 1. Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

Lithium Cell Sorting Machine  18650 0



 2. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.

Lithium Cell Sorting Machine  18650 1



 3. Italic design

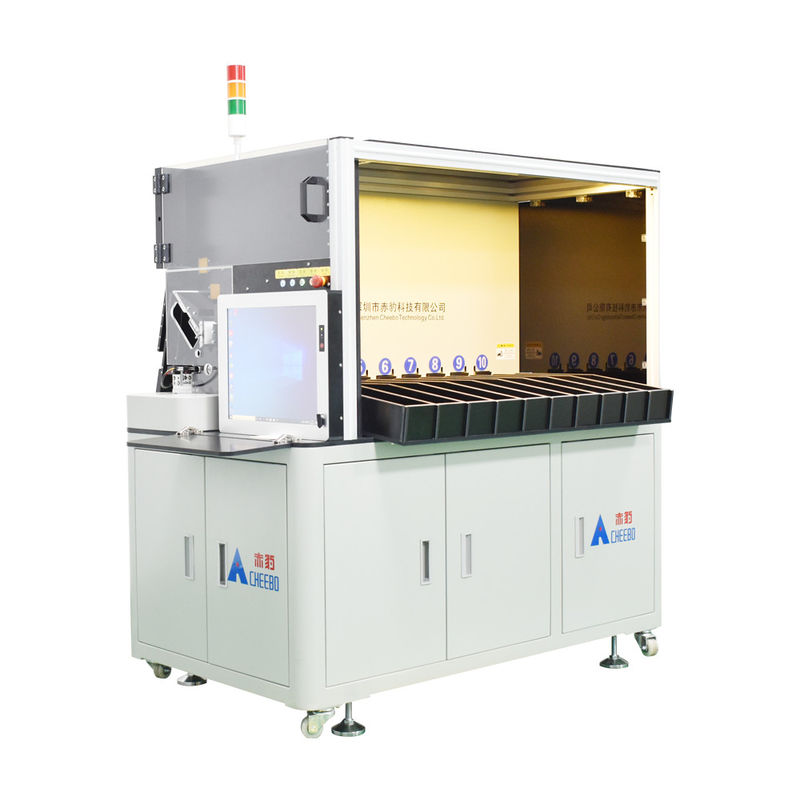

The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.

Lithium Cell Sorting Machine  18650 2



Device action flow description



Place the battery into the silo - Test wheel runs to the testing position - Test cylinder action - Test needle presses onto the battery - Tester reads



data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to the specified gear - Gear



cylinder action pushes the battery out



Equipment analysis diagram

Lithium Cell Sorting Machine  18650 3

1. Battery charging spout 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor
