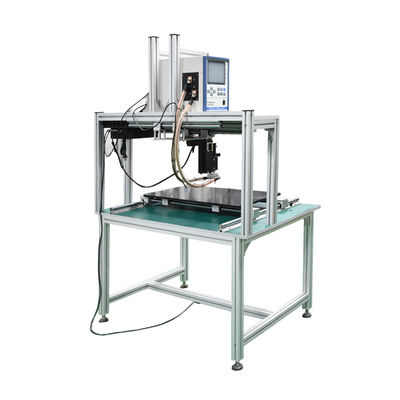

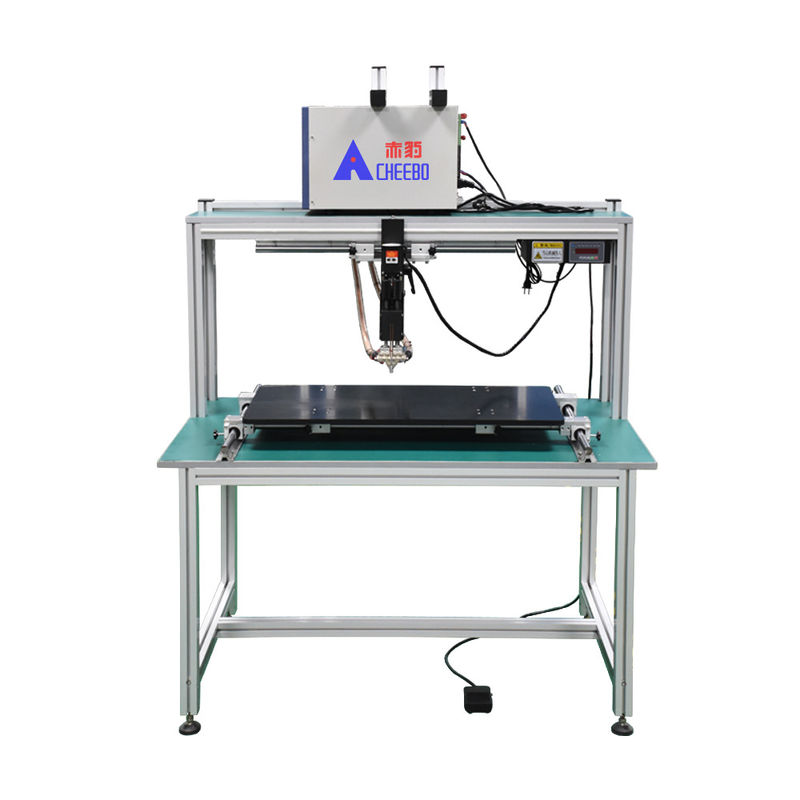

Battery Tab Spot Welding Machine 5000A

Battery Tab Spot Welding Machine 5000A

  • High Light

    Battery Tab Spot Welding Machine 5000A

    ,

    Spot Welder For Battery 5000A

    ,

    Guideway Battery Tab Spot Welding Machine

  • Voltage
    220v
  • Condition
    New
  • Weight
    70kg
  • Max. Welding Thickness
    0.5
  • After-sales Service Provided
    Video Communication
  • Product Name
    Guideway Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Tab Spot Welding Machine 5000A

Rail Platform Model Battery Tab Spot Welding Transistor 5000A Power Supply


Equipment introduction

​​● Pure electric cylinder-less, low noise, fast speed and stable pressure.


​​Double guide rails are thick and thick, and the chassis is stable and firm, and it is not easy to deform. The welding head can move up and down from left to right, and can move according to the size of the battery pack, which is convenient for welding.


​​Independent research and development of precision welding head, accurate pressure adjustment and control.


​​The desktop guide rail can be pushed and pulled left and right, and the stroke is 750*350mm.


​​The guide rail is convenient to move, saving time and labor, greatly shortening the welding time and improving the manual welding speed.


​​There is no need to push the battery pack in the spot welding process, which is labor-saving and fast, and the platform can carry 50KG, which is especially suitable for welding large battery packs.


​​Transistor welding power supply, high current rising speed, short time to achieve high quality welding.


​​There are three welding modes: constant voltage, constant current and constant voltage current.


​​Compact structure, small volume, high power, no need to weld transformer.


​​Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


​​5.7-inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, multiple programs can be pre-stored.


​​Energy saving, environmental protection, stability and high efficiency, and low power consumption of equipment.

Technical specification

Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Driving mode Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

Function Introduction

 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Battery Tab Spot Welding Machine 5000A 0



 2. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.



Battery Tab Spot Welding Machine 5000A 1



 3. Electric control

No additional air source, low noise, fast welding speed, stable pressure.Battery Tab Spot Welding Machine 5000A 2

  1. Welding case

Battery Tab Spot Welding Machine 5000A 3        Battery Tab Spot Welding Machine 5000A 4      Battery Tab Spot Welding Machine 5000A 5

Service process
Pre-sale:
1.  Customers send inquiries and inquiries
2.  Recommend products according to customer needs
3.  Video communication to confirm final requirements
4.  Both parties shall deliver the confirmation of technical specifications
5.  Both parties sign the contract
6.  Place orders and arrange production in the workshop
7.  Arrange delivery
After sale:
1.  Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2.  If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
