High Efficiency Automatic Battery Spot Welding Machine

High Efficiency Automatic Battery Spot Welding Machine

  • High Light

    High Efficiency Automatic Battery Spot Welding Machine

    ,

    High Efficiency 18650 Battery Welding Machine

    ,

    Adjustable Automatic Battery Spot Welding Machine

  • Product Name
    Double Sided Multifunctional Spot Welder
  • Machine Type
    Automatic
  • Welding Time
    Adjustable
  • Function
    Welding Battery Tabs
  • Color
    Silvery White
  • Rated Duty Cycle
    20%
  • Place of Origin
    Guangdong, China
  • Brand Name
    Cheebo Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

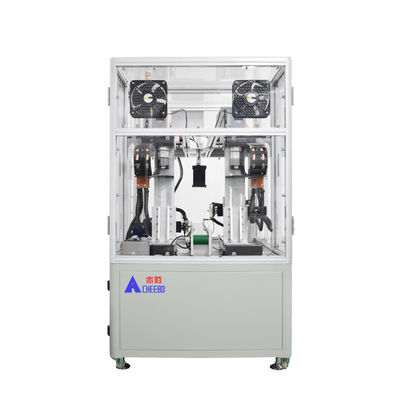

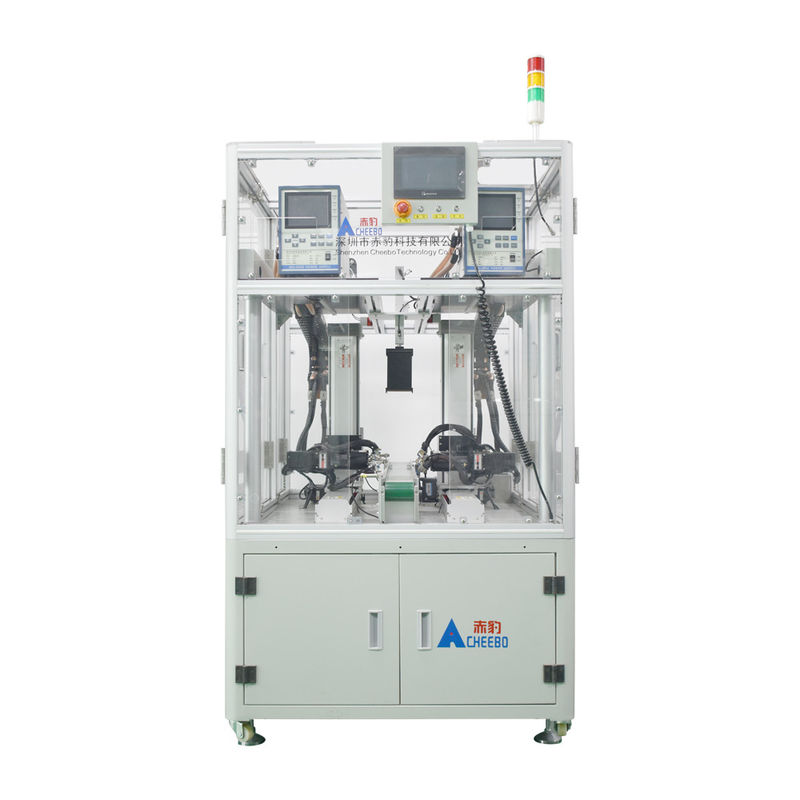

High Efficiency Automatic Battery Spot Welding Machine

CBMN8-5036 Automatic Battery Spot Welding Machine Productive Efficiency


Equipment introduction

​​● Self-developed electric precision rotary welding head can be 135° rotary welding, suitable for all kinds of special-shaped nickel pieces, with anti-sticking needle effect.


​​● The left and right platforms can be operated independently, and the welding paths can be set independently according to different welding requirements.


​​● Blast welding, welding equipment automatic alarm, manual adjustment of automatic area repair welding, single point repair welding.


​​● Using Taiwan silver screw guide module, high precision, low noise, smooth sliding, durable.


​​● Hd LCD touch screen, interactive man-machine interface is easy to operate. Manual programming, CAD map, import spot welding path, fast programming. Simple and easy to learn, ordinary workers can set.


​​● Energy switching function, can store 4 groups of energy mode, different materials automatically switch different welding energy.


​​● Production count function, set production quantity, complete output automatically stop.


​​● Welding needle compensation function, set the number of welding needles, after reaching the number of automatic reminding of needle maintenance.


​​● Manual debugging function can fine-tune the welding head for each point and save the spot welding parameters (easy to modify the coordinates of the welding spot), and can also be adjusted by using the one-key correction function.


​​● Through design structure (can be forward forward and forward after out), can be connected with the production line through the use, after the completion of welding in the pipeline side can be taken out.


​​● Aluminum alloy skeleton, imported acrylic shield plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.

Technical specification

Production efficiency 3600PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 360MM*500MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1400*1000*1680MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Function Introduction

 1. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

High Efficiency Automatic Battery Spot Welding Machine 0



 2. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

High Efficiency Automatic Battery Spot Welding Machine 1



 3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

High Efficiency Automatic Battery Spot Welding Machine 2

Application case

1. Energy storage battery pack       2. Electric bicycle battery pack        3. Power tool battery pack



High Efficiency Automatic Battery Spot Welding Machine 3    High Efficiency Automatic Battery Spot Welding Machine 4     High Efficiency Automatic Battery Spot Welding Machine 5

FAQ

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
