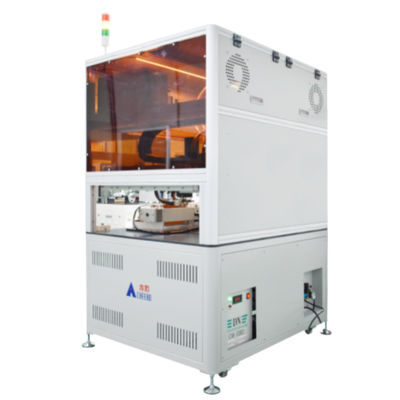

LCD  Automatic Battery Spot Welding Machine

LCD Automatic Battery Spot Welding Machine

  • High Light

    LCD Automatic Battery Spot Welding Machine

    ,

    32700 Automatic Battery Spot Welding Machine

    ,

    LCD Lithium Ion Battery Welding Machine

  • Power Supply Type
    Transistor
  • Product Name
    Multi-function Single Side Double Station Spot Welding Machine
  • Core Components
    Lead Rail Module
  • After-sales Service Provided
    On-site Service Available
  • Welding Thickness
    0.02MM-0.3MM
  • Welding Head Features
    135° Rotation
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMO5-1710
  • Minimum Order Quantity
    1 set
  • Price
    EGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden cases
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

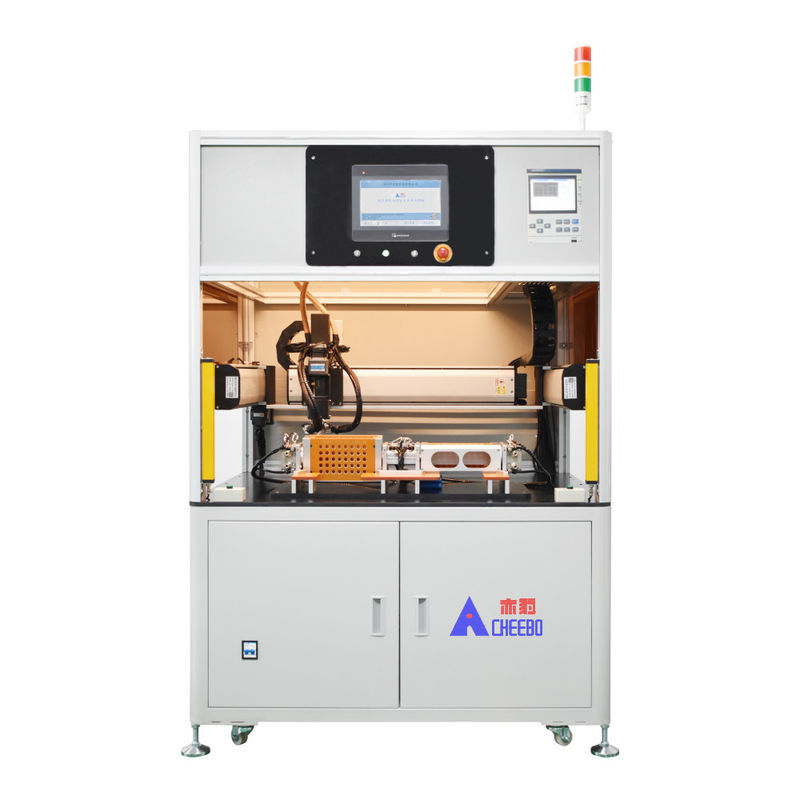

LCD Automatic Battery Spot Welding Machine

CBFZ-5545 Automatic Battery Spot Welding Machine High Quality Spot Welder


Equipment introduction

​​● The welding fixture part of CBFZ-5545 lithium battery spot welder can rotate automatically. After welding, it can automatically turn side A to side B for welding, without manually turning the fixture.


​​● The welding head can be rotated 135°, which is suitable for the welding of special-shaped nickel sheet, and also effectively avoid the phenomenon of sticking needles in the welding process.


​​● Panasonic servo, welding speed, high precision.


​​● Grating protection is installed on both sides to ensure the safe operation of the equipment.


​​● Automatic alarm of virtual welding equipment, manual adjustment of automatic area repair welding, single point repair welding.


​​● Using Taiwan silver screw guide module, high precision, low noise, smooth sliding, durable.


​​● Hd LCD touch screen, interactive man-machine interface is easy to operate.


​​● Manual programming, CAD map, import spot welding path, fast programming. Simple and easy to learn, production line workers can be fully competent.


​​● Independent development of a variety of automatic intelligent systems, easy to set up equipment operation, help improve production efficiency.


​​● With energy switching function, production counting function, welding needle compensation function, manual debugging function.


​​● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, anti-static. Imported acrylic shield plate, beautiful and generous sense of science and technology, visual operation to improve the production safety factor.

Technical specification

Production efficiency 3800PCS/H Welding head rotation Angle 1/CFM
Welding thickness 0.02-0.3MM Relocation accuracy 0.1mm
Simplex welding stroke 170MM*100MM Platform load 35KG
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Welding head rotation Angle 0°-135° Welding pressure 600*900*1420MM
XY shaft welding stroke 360MM*500MM Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding

Application case

1.Energy storage battery pack          2.Electric bicycle battery pack          3.Power tool battery pack



LCD  Automatic Battery Spot Welding Machine 0      LCD  Automatic Battery Spot Welding Machine 1       LCD  Automatic Battery Spot Welding Machine 2

Function Introduction

 1. Hd touch screen



Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

LCD  Automatic Battery Spot Welding Machine 3



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

LCD  Automatic Battery Spot Welding Machine 4

 3. Double station rotating platform

The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.



LCD  Automatic Battery Spot Welding Machine 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
