Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line

Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line

  • High Light

    PLC Battery Pack Assembly Line

    ,

    21700 Battery Pack Assembly Line

    ,

    21700 Lithium Ion Battery Production Line

  • Control System
    PLC
  • Material
    Aluminum Alloy
  • Operating System
    Windows
  • Production Capacity
    High
  • Production Speed
    3000-4000PCS/H
  • Product Name
    Cylindrical Lithium Battery Pack Production Line
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBZD-2540
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    The wooden case
  • Delivery Time
    30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 Set/Sets per Week

Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line

Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line

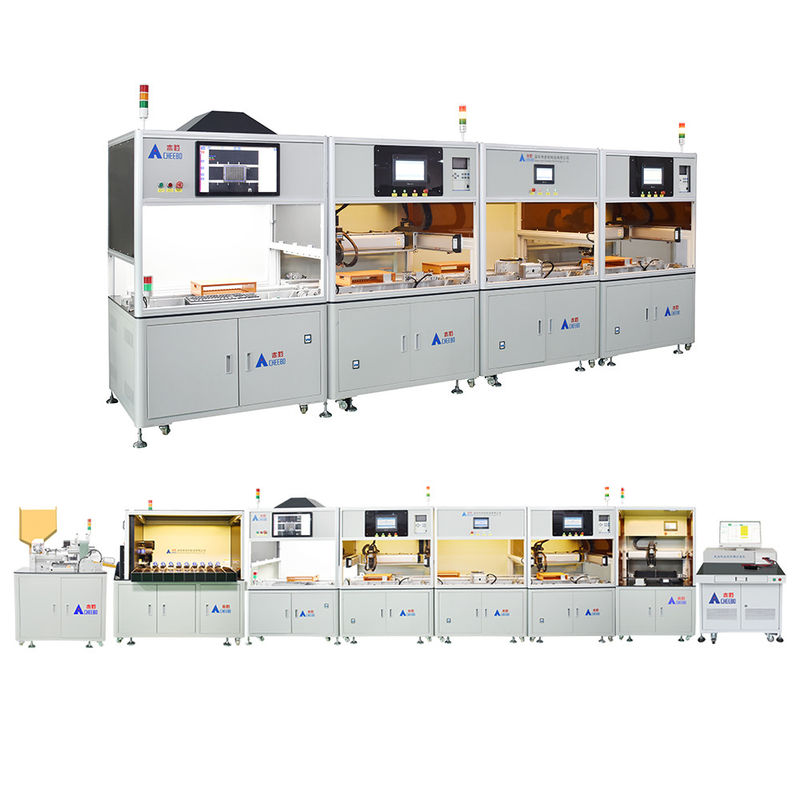

Equipment introduction

● This lithium battery pack production line is suitable for the battery pack assembly production of household appliances/electric bicycles/power tools/garden tools/energy storage power supplies and other products.


● Adopt modular design: each device can be automatically connected to use, can also be used alone, free combination, according to demand.


● Lithium battery production assembly line is a multi-axis motion control system developed by modern automation experts, with precision transmission and motor control of automatic mechanisms, effective real-time control of automated production equipment.


● Lithium battery assembly line Lithium battery assembly line is suitable for 18650, 21700, 26650, 32700 and other cylindrical battery assembly line.


● Cell automatic feeding mechanism: the manipulator automatically grabs the cell and places it on the designated track. It is compatible with 18-21 (diameter), 65-70 (length).


● Core highland barley paper machine: using PLC control stepper motor and cylinder to complete the finished core positive electrode paste highland barley paper. Cylinder drive cutting knife campaign stamping, one time paste 4 cells. The slices are made of high speed steel with high wear resistance.


● Battery sorter: with cell scanning code storage data function. 7 sorting gears. Automatic sorting equipment suitable for cylindrical battery voltage and internal resistance test of various specifications. It is compatible with 18-21 (diameter) and 65-70 (length).


● CCD vision inspection equipment: multi-purpose vision inspection system based on CCD industrial camera and machine vision technology.


● Automatic battery spot welding machine: suitable for cylindrical battery welding of various specifications, using automatic single-side spot welding.


● Fixture rotation system: automatically sensing the fixture to reach the position, the rotating mechanism clamping fixture rotation, so that the fixture reflux to the next program.


● Built-in fixture return track, after the assembly is completed by manually disassembling the fixture, the fixture is placed on the return track, the fixture is automatically returned to the previous station, and the welding track is placed after manual assembly.



Technical specification



Work method

Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker
Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%

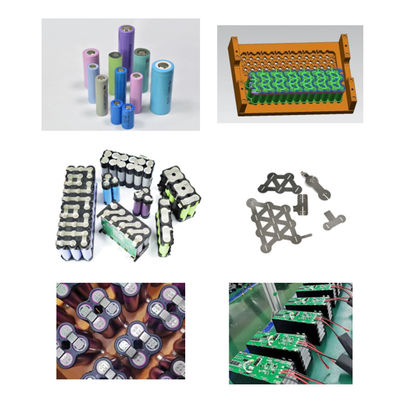

Application case



1. Energy storage battery pack           2. Electric bicycle battery pack                     3. Power tool battery pack

Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line 0         Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line 1                  Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line 2



Process Introduction



The battery is loaded into the hopper of the paper paste machine →→ Automatically paste the positive electrode



pad sticker →→ the battery automatically enters the separator →→ the separator sweeps the test data for archiving →→



The battery is sent into the corresponding receiving tank → The workers take out the loading fixture in groups →



push the CCD automatic polarity detection screen → the unqualified manual correction is automatically sent out →



the workers cover the upper plate of the fixture →→ push the spot welder Automatic spot welding on side A→→



The machine automatically turns over to side B for welding completion →→ Take out the welded battery pack fixture



and return it to the frontto enter the next escape ring →→ Install the BMS board after the battery pack welding



inspection →→Machine or manual welding of the BMS board → Workers line and install auxiliary materials →→



Test the battery pack parameters fail to pass the inspection. →→ Send aging inspection to aging workshop →→



Packaging workshop packing



Production line planning diagram

Battery Pack Assembly Line Cylindrical Cell Lithium Battery Production Line 3

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
