Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine

Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine

  • Highlight

    Square Battery Pack Laser Welded Machine

    ,

    Fully Automatic Metal Laser Welding Machine

    ,

    Square Battery Metal Laser Welding Machine

  • Weight
    500kg
  • Dimensions
    1500*1700*2500mm
  • Max. Welding Thickness
    0.5mm
  • Product Name
    Laser Welder Machine Welding Battery
  • Condition
    New
  • Guiderail Brand
    HIWIN
  • Machinery Test Report
    Provided
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLW-MG
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    15-20 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine

Li Ion Square Battery Pack Laser Welded Machine Manufacturer Sells Fully Automatic Metal Laser Welding Machine

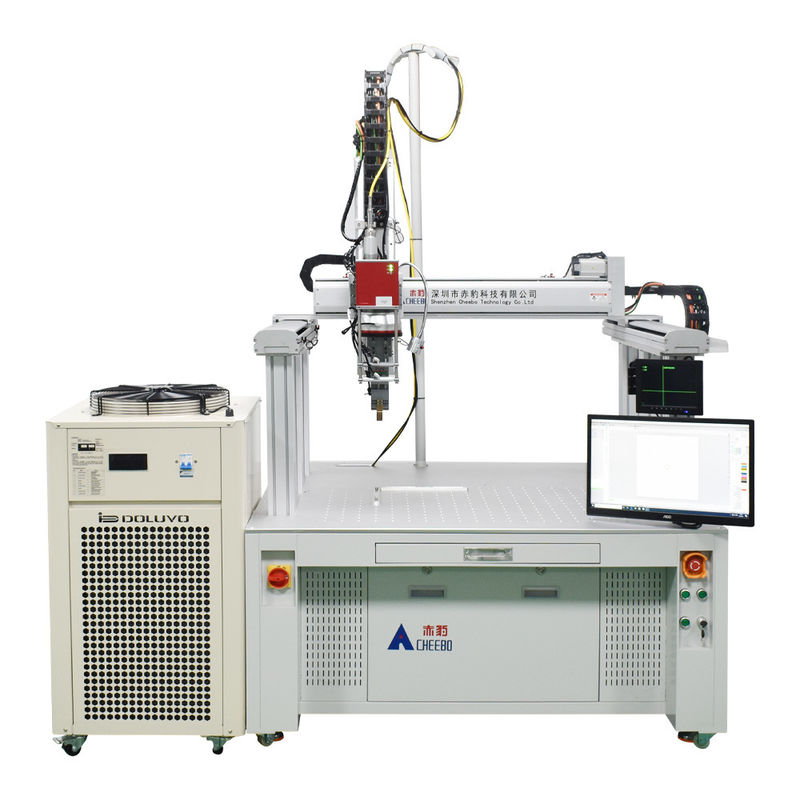

Equipment introduction



Laser welding has excellent quality, fast welding speed, firm and beautiful welds, providing users with efficient and comprehensive welding solutions Industrial PC control, workpieces can move in a planar trajectory, welding points, lines, circles, squares, or any planar shape composed of lines and arcs; High electro-optical conversion rate, low energy consumption, and long-term use can save users a lot of processing costs; This device has high reliability and can continuously and stably process for 24 hours, meeting the needs of industrial batch production and processing; Has strong customization ability and can customize according to customer needs.Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine 0





Application scope of the product



1. The continuous galvanometer laser welding machine uses the most advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum). Combined with our company's independently developed and designed gantry machine tool, it has good rigidity and stability

2. For fast and precise welding, fiber lasers have a series of advantages such as high beam quality, stability and reliability, low operating costs, and small size, making them the preferred equipment for lithium-ion laser welding processing.

3. High lifespan gantry dual drive motion platform cabinet, gantry style motion structure, large surface travel welding range, high photoelectric conversion efficiency, and excellent beam quality.

4. Operated with precision guide rail transmission, equipped with high response servo motors, high precision and fast speed;

5. Laser welding has fine spots, high melting depth, small taper, high precision, and a smooth welding surface without bubbles; Laser welding processing is pollution-free, with a small heat affected area and minimal deformation;

6. PC industrial computer, welding CNC programming system, welding software editing is simple and easy to learn.

7. Adjustable laser power, low power consumption, daily maintenance free

8. Automatic top pressure welding device reduces welding fixture requirements

9. Support adding CCD visual positioning system and automatic focal length measurement system functions





Technical specification



TECHNICIAL PARAMETERS
Model
XW-500W/1000W/1500W/2000W
Maximum Laser Power
500W/1000W/1500W/2000W
The Laser Wavelength
1.06um
Operation Model
Continuity
Laser Welding Depth (stainless steel)
1mm~4.0mm
Positioning System (GPS)
Red light indication
Power Demand
220V 50HZ/60HZ , 380V/50HZ/60HZ
Cooling Mode
Water Cooling
The Whole Machine Consumes Power
<3KW
wobble welding head
Optical
Auto Wire Feeder
Optical
The Whole Machine Size
WLH (1500*1700*2500mm)



Function Introduction



Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:



1. Precise positioning

Optical fiber laser welding machine is equipped with CCD camera monitoring system, which is convenient to observe, and can precisely locate by spot in micro-welding.





Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine 1

2. Uniform weld spot

The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.

Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine 2

3. Suitable for all kinds of weld's screams

Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 1mm. It has fast welding speed, large depth and small deformation.

Li Ion Square Battery Pack Laser Welded Machine , Fully Automatic Metal Laser Welding Machine 3



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
