Good price online

products details

Home > Products >
Battery Laser Welding Machine
>
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs
All Category

Battery Spot Welding Machine

Battery Pack Assembly Line

Battery Laser Welding Machine

Battery Sorting Machine

Battery Sticker Machine

Battery Test Machine

Cell Testing Machine

CCD Tester

Battery Accessories
Contact Us
Ms. Naomi Zhang
cheebo@126.com
+86 199 2880 7536
Contact Now
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

Brand Name: CHEEO
MOQ: 1
Price: $10,000-11,000
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Laser Wavelength:
1080
Regulating Frequency:
30-5KHZ
Adjustable Power:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Speed:
1000mm/sec(XYaxis), 500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Power Consumption:
3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall Dimension:
L1343xW1454xH22235mm
Highlight:

6000W Fiber Laser Welding Machine

,

High Precision Battery Laser Welding Machine

,

Gantry Motion Structure Laser Welding Equipment

Product Description

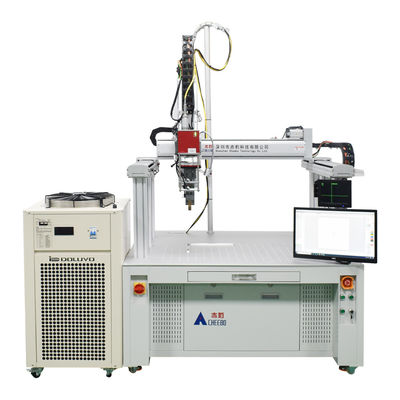

New Fiber Laser Welding Machine - Fully Automatic Square Li-Ion Battery Pack Laser Welding System
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 0

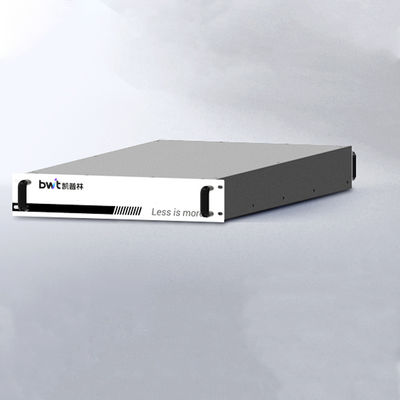

This advanced fiber laser welding system integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of performing precise welding of any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly optimized for lithium battery applications.
Key Features:
  • Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)
  • Proprietary gantry machine tool design ensures exceptional rigidity and stability
  • High beam quality, reliability, and low operating costs make it ideal for lithium-ion welding
  • Long-life gantry dual-drive motion platform with large welding range
  • Precision guide rail transmission with high-response servo motors for accuracy and speed
  • Produces fine weld spots with deep penetration, minimal taper, and smooth surfaces
  • User-friendly PC industrial computer with intuitive CNC programming system
  • Adjustable laser power with low energy consumption and minimal maintenance
  • Optional CCD visual positioning and automatic focal length measurement systems
Technical Specifications:
Laser Power 1500W/2000W/3000W/4000W/6000W Welding Speed 10-100mm/s
Position Accuracy ±0.05mm Laser Wavelength 1080
Regulating Frequency 30-5KHZ Adjustable Power Range 10-100%
Repositioning Accuracy ±0.01mm Rapid Positioning Speed 1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System External water cooling Operating Mode Continuous/Modulation
Beam Quality <1.4㎡ Power Stability ≦3%
Laser Output Mode CW/PWM Maximum Machining Size 800*600mm/1000*800mm
Laser Focusing Focal Length F=180mm CCD Positioning Accuracy 0.01mm (Optional)
Fiber Core 20um/50pm/100pm (Optional) Overall Power Consumption 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions L1343xW1454xH22235mm Machine Weight Approx. 500KG
Product Details
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 1

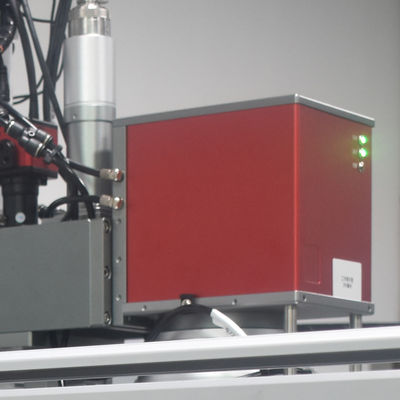

Welding Point Monitoring & Autofocus System
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 2

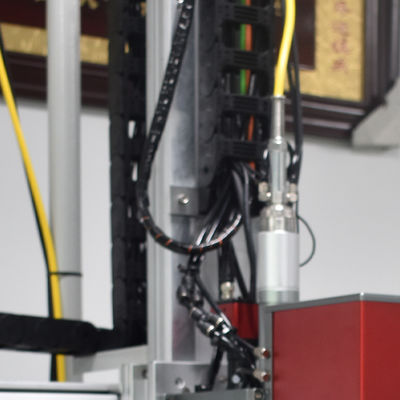

High Precision Welding Joint of Vibrating Mirror
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 3

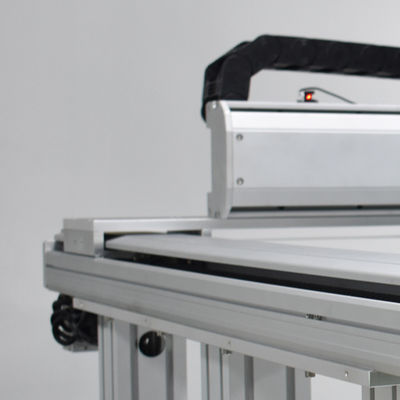

Rail Module
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 4
Welding Product Diagram
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 5 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 6 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 7
Frequently Asked Questions
Q: How do I know which model is right for my application?
A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the optimal solution.
Q: What is required for machine installation and operation?
A: Our technicians pre-install all major components before shipping. We provide detailed training videos and manuals for minor assembly. 95% of customers successfully self-install.
Q: Is there a minimum order quantity?
A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.
Q: How is quality controlled in your factory?
A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance before shipment.
Q: What if I encounter technical issues?
A: Contact us immediately - do not attempt repairs. We guarantee 24-hour response to resolve any issues.
6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 8 6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs 9
