Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding

Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding

  • Highlight

    Professional Battery Pack Welding Machine

    ,

    Automated Battery Pack Welding Machine

    ,

    Fiber Laser Battery Pack Welding Machine

  • Weight
    500kg
  • Dimensions
    1500*1700*2500mm
  • Product Name
    Laser Welder Machine Welding Battery
  • Regulating Frequency
    30-50KHZ
  • Coolant System
    External Water Cooling
  • CCD Positioning Accuracy
    0.01mm(Optional)
  • Ambient Temperature
    5-45°C
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLW-MG
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    15-20 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

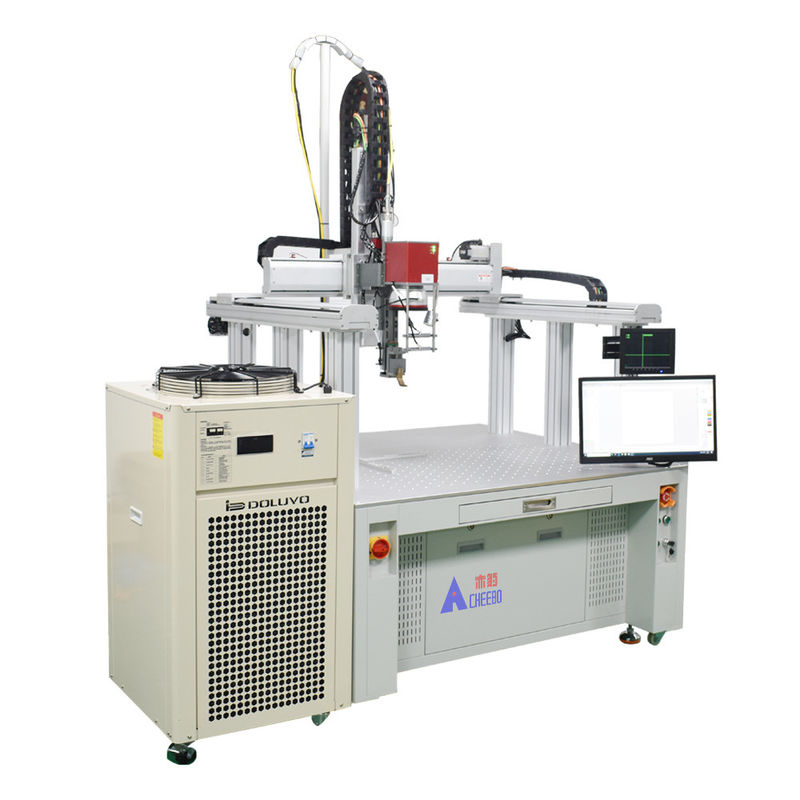

Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding

Automated Laser Welding Machine Professional Battery Pack Welding Fiber Laser Welding Machine




Equipment introduction



The Longmen type battery laser welding machine welds the battery connection plate, ensuring a secure coal connection and fast forming speed, avoiding virtual connections. At the same time, it can also weld various materials such as battery aluminum shells. Laser welding machine, also known as laser welding machine or laser welding machine, is a type of laser welding machine used for material processing.
1. Intelligent operation

2. No experience required

3. Efficient and accurate

4. Stable performance

Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding 0





Application scope of the product



1. The continuous galvanometer laser welding machine uses the most advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum). Combined with our company's independently developed and designed gantry machine tool, it has good rigidity and stability

2. For fast and precise welding, fiber lasers have a series of advantages such as high beam quality, stability and reliability, low operating costs, and small size, making them the preferred equipment for lithium-ion laser welding processing.

3. High lifespan gantry dual drive motion platform cabinet, gantry style motion structure, large surface travel welding range, high photoelectric conversion efficiency, and excellent beam quality.

4. Operated with precision guide rail transmission, equipped with high response servo motors, high precision and fast speed;

5. Laser welding has fine spots, high melting depth, small taper, high precision, and a smooth welding surface without bubbles; Laser welding processing is pollution-free, with a small heat affected area and minimal deformation;

6. PC industrial computer, welding CNC programming system, welding software editing is simple and easy to learn.

7. Adjustable laser power, low power consumption, daily maintenance free

8. Automatic top pressure welding device reduces welding fixture requirements

9. Support adding CCD visual positioning system and automatic focal length measurement system functions





Technical specification



TECHNICIAL PARAMETERS
Laser Wavelength
1080
Adjustable power range
10-100%
Welding speed
10-100mm/s
Regulating frequency
30-5KHZ
Operating made
Continous/Modulation
Positioning System (GPS)
Red light indication
Power Demand
220V 50HZ/60HZ , 380V/50HZ/60HZ
Cooling Mode
Water Cooling
The Whole Machine Consumes Power
<3KW
wobble welding head
Optical
Auto Wire Feeder
Optical
The Whole Machine Size
WLH (1500*1700*2500mm)



Function Introduction



Laser welding is the process of applying a high-energy density laser beam onto two parts of a material, causing localized heating and melting, followed by cooling and solidification to form a cohesive body. Compared with traditional welding techniques, laser welding has the following advantages:



1. Precise positioning

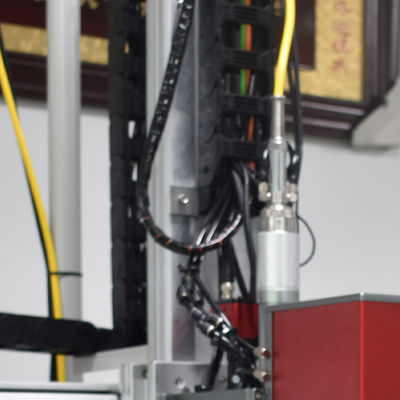

Optical fiber laser welding machine is equipped with CCD camera monitoring system, which is convenient to observe, and can precisely locate by spot in micro-welding.





Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding 1

2. Uniform weld spot

The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.

Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding 2

3. Suitable for all kinds of weld's screams

Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 1mm. It has fast welding speed, large depth and small deformation.

Professional Battery Pack Welding Fiber Laser Welding Machine for Automated Welding 3



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
