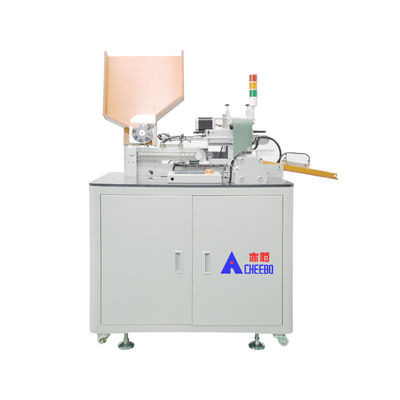

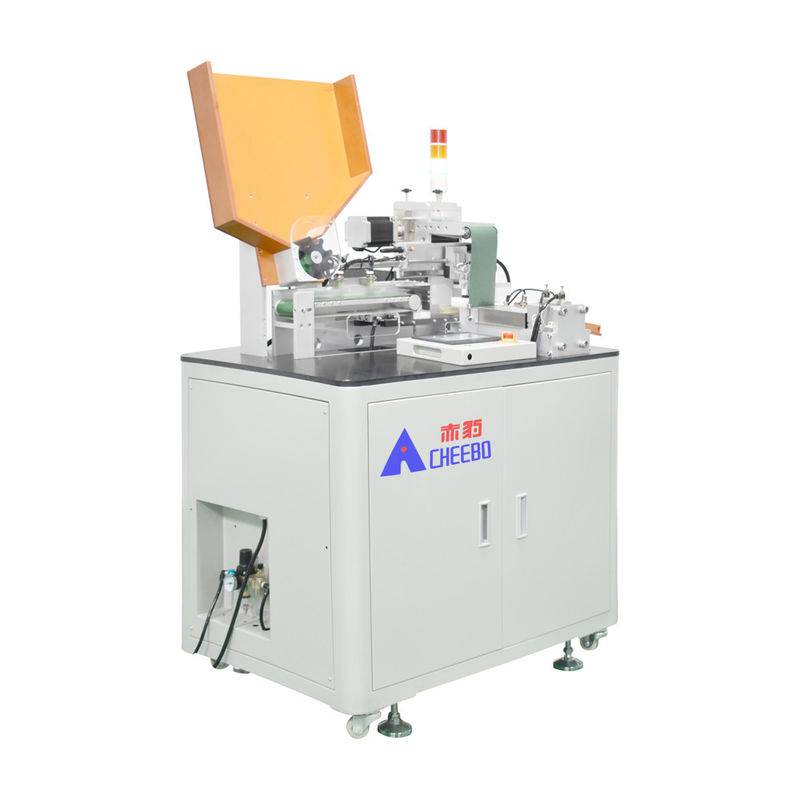

● This sticker machine is controlled by PLC and is designed to apply high-barley insulation paper to the positive electrodes of 18650/21700/21650 finished batteries.
● It can complete the sticker application for approximately 4,000 cylindrical finished batteries per hour.
● Equipped with a 7-inch high-definition touch screen, it allows for real-time monitoring of the machine's operational status.
● The machine utilizes a cylinder-driven cutter for stamping, enabling stamping of four batteries at once. The blades are made of high-speed steel, offering excellent wear resistance, high-quality finished products, and efficient production.
● The stamping process is stable, ensuring consistent placement of stickers and low defect rates.
● It is equipped with a fault information reminder function, including audible and visual alarms, enabling quick fault diagnosis.
● The machine is equipped with a tailing clearing function, allowing for one-key emptying of tailings.
● Compatible materials include high-barley paper, fast-bonding paper, glutinous rice paper, RET protective stickers, and more.
● The mechanical structure design is simple and elegant, with stable system performance. Constructed with an aluminum alloy structure and electrostatic powder spraying process, it is scratch-resistant, rust-proof, and anti-static.
| Production efficiency | 60-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | 18650/21700/21650 | Pass rate | ≥95% |
| Sticker efficiency | ≥60PPM | Transmission mode | Mechanical hand |
| Compatible material | Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc | Maximum impact speed | 99.99% |
| Work method | Stepper motor + pneumatic | Machine Dimensions | 1275*860*1524MM |
| structural material | aluminium alloy | Machine Weight | 150KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical cell sticker |
Manually load the battery into the hopper -- the wave wheel rotates out of the battery -- the belt moves the battery -- the cylinder pushes out the
battery team -- the battery positioning and pressing -- the stepping battery drives the whole roll of highland barley paper to move -- the cylinder
paste highland barley paper -- the waste recycling -- the finished battery to the feeding tank -- the operating parameters of the human tool box can
1. Hd touch screen
7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.
2. Large hopper
Large feeding hopper, slope type hopper, suitable for the whole box feeding, feeding convenient. One-time 300PCS18650 battery cell.
3.High speed steel cutter
The stamping die is non-adhesive and firmly pasted. The paste position is consistent and does not affect the subsequent welding procedure. Paste 4 cells at one time, high production efficiency
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery type do you want to be compatible with?
3) Paste materials.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
