Automatic Sticking Machine For Lithium Battery PLC Control High Precision

Automatic Sticking Machine For Lithium Battery PLC Control High Precision

  • High Light

    Paper Sticking Machine For Lithium Battery

    ,

    PLC Paper Sticking Machine

    ,

    Adhesive Automatic Labeling Machine

  • Transmission Mode
    Mechanical Gripper
  • Driving Mode
    Pneumatic
  • Control Mode
    PLC
  • Product Name
    Paste Positive Insulator Paper Paste Machine
  • Hopper Material
    Bakelite
  • Air Source Specification
    1/CFM
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBTZ-1821
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Automatic Sticking Machine For Lithium Battery PLC Control High Precision

Automatic Sticking Machine For Lithium Battery PLC Control High Precision

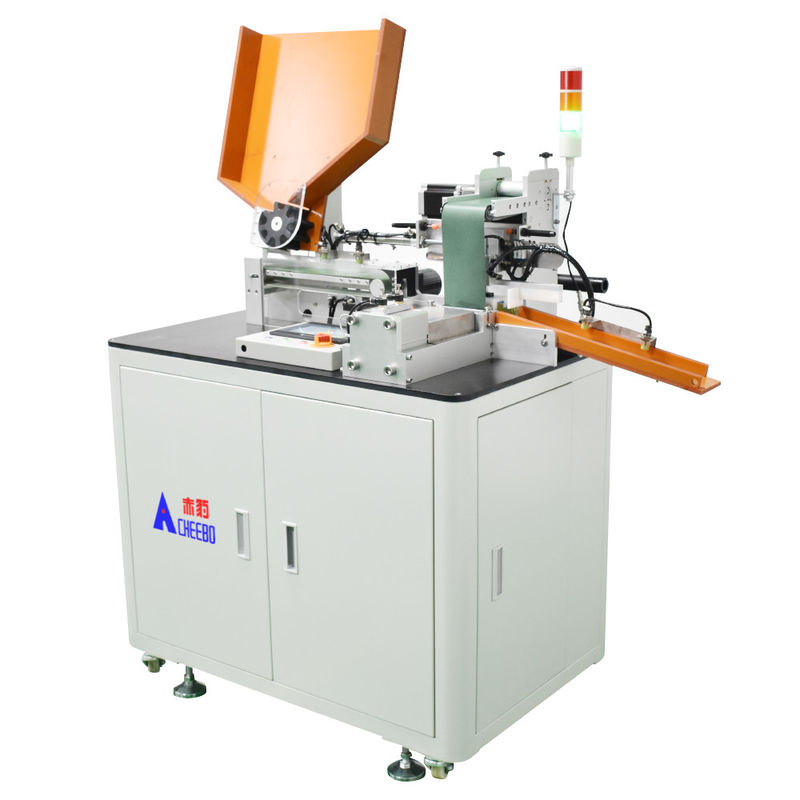

Equipment introduction



● This machine is controlled by PLC with stepper motor and cylinder etc. to complete the function of applying barley insulating paper to the positive electrode of 18650/21700/21650 finished battery cells.


● The number of finished cylindrical battery cores can be completed around 4000 per hour.


● Adopt 7 inch high definition touch screen to monitor the machine running status in real time.


● Adopt cylinder-driven cutter for stamping, 4 cores are stamped at a time, the slices are made of high speed steel, with high anti-wear strength, good quality of finished products and high production efficiency.


● Stable sticker and stamping, high consistency in placement and low defect rate.


● Fault message reminding function, sound and light alarm, can quickly diagnose the fault.


● With the function of clearing the end material, you can empty the end material with one key.


● Compatible materials: barley paper, fast bar paper, glutinous rice paper, RET protection stickers, etc.


● Simple and elegant mechanical design, stable system performance.



Debugging project
  1.  Wear highland barley paper steps
  2.  Adjust the press cutter
  3.  Adjustable center position
  4.  Loading step demonstration
  5.  On-line debugging
  6.  Replace stamping tool debugging
Technical specification



Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker



Function Introduction



 1.Large hopper

Large feeding hopper, slope type hopper, suitable for the whole box feeding, feeding convenient. One-time 300PCS18650 battery cell.





Automatic Sticking Machine For Lithium Battery PLC Control High Precision 0

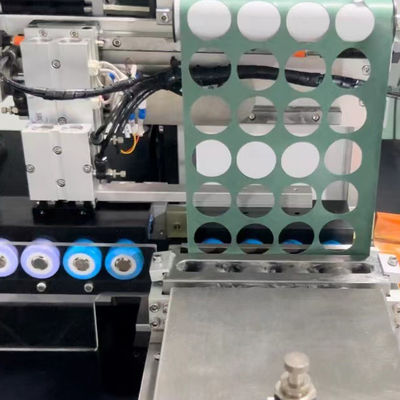

 2.High speed steel cutter

The stamping die is non-adhesive and firmly pasted. The paste position is consistent and does not affect the subsequent welding procedure. Paste 4 cells at one time, high production efficiency



Automatic Sticking Machine For Lithium Battery PLC Control High Precision 1



 3.Hd touch screen

7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.



Automatic Sticking Machine For Lithium Battery PLC Control High Precision 2



Matters needing attention
  1.  Do not touch any operating components during the operation of the equipment
  2.  Automatic highland barley paper pasting machine applies positive pole insulation protection paper to the battery cell, and places the   battery according to the requirements
  3.  Timely cleaning of punching and pasting waste materials
  4.  Regular maintenance of stamping tools
  5.  Regularly discharge the water stored in the oil water filter
  6.  Avoid stamping foreign objects with stamping tools, which may cause tool jamming
FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information

1) Battery type?

2) Which battery type do you want to be compatible with?

3) Paste materials.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
