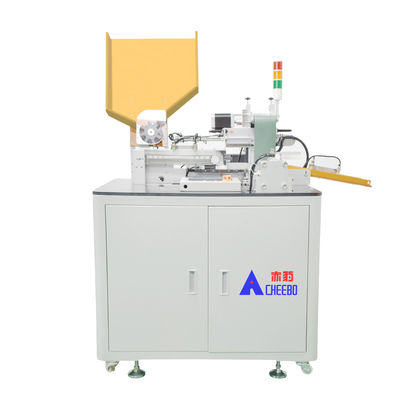

18650 Lithium Battery Cell Sticker Machine Compatible With Patented Product

18650 Lithium Battery Cell Sticker Machine Compatible With Patented Product

  • High Light

    Patented Product Cell Sticker Machine


    18650 Lithium Battery Sticker Machine

  • Working Air Source
  • Voltage
  • Name
    Lithium Battery Fully Automatic Sticker Machine
  • Dimensions
  • Condition
  • Maximum Impact Speed
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

18650 Lithium Battery Cell Sticker Machine Compatible With Patented Product

18650 Lithium Battery Compatible With Patented Product Cell Sticker Machine

Equipment introduction

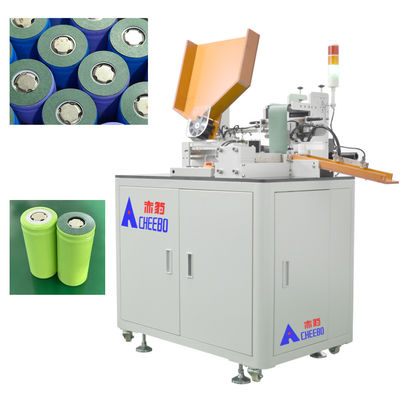

● This sticker machine is controlled by PLC and is designed to apply high-barley insulation paper to the positive electrodes of 18650/21700/21650 finished batteries.

● It can complete the sticker application for approximately 4,000 cylindrical finished batteries per hour.

● Equipped with a 7-inch high-definition touch screen, it allows for real-time monitoring of the machine's operational status.

● The machine utilizes a cylinder-driven cutter for stamping, enabling stamping of four batteries at once. The blades are made of high-speed steel, offering excellent wear resistance, high-quality finished products, and efficient production.

● The stamping process is stable, ensuring consistent placement of stickers and low defect rates.

● It is equipped with a fault information reminder function, including audible and visual alarms, enabling quick fault diagnosis.

● The machine is equipped with a tailing clearing function, allowing for one-key emptying of tailings.

● Compatible materials include high-barley paper, fast-bonding paper, glutinous rice paper, RET protective stickers, and more.

● The mechanical structure design is simple and elegant, with stable system performance. Constructed with an aluminum alloy structure and electrostatic powder spraying process, it is scratch-resistant, rust-proof, and anti-static.


Technical specification
Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker


Device action flow description


Manually load the battery into the hopper -- the wave wheel rotates out of the battery -- the belt moves the battery -- the cylinder pushes out the


battery team -- the battery positioning and pressing -- the stepping battery drives the whole roll of highland barley paper to move -- the cylinder


paste highland barley paper -- the waste recycling -- the finished battery to the feeding tank -- the operating parameters of the human tool box can


Function Introduction


1. Hd touch screen

7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.


18650 Lithium Battery Cell Sticker Machine Compatible With Patented Product 0


2. High speed steel cutter

The stamping die is not sticky and adheres firmly. Consistent pasting positions do not affect subsequent welding processes. Pasting 4 cells at once, high production efficiency.

18650 Lithium Battery Cell Sticker Machine Compatible With Patented Product 1


3.Large hopper

The feeding hopper is large and inclined, suitable for whole box feeding and convenient feeding. Disposable 300PCS 18650 batteries.


18650 Lithium Battery Cell Sticker Machine Compatible With Patented Product 2


Matters needing attention
  1. Wear highland barley paper steps
  2. Adjust the press cutter
  3. Adjustable center position
  4. Loading step demonstration
  5. On-line debugging
  6. Replace stamping tool debugging


Q: I don't know which one is right for me?
A: Please tell us the following information

1) Battery type?

2) Which battery type do you want to be compatible with?

3) Paste materials.


Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.


Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.


Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.


Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.


Service process


1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery


After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.


Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
