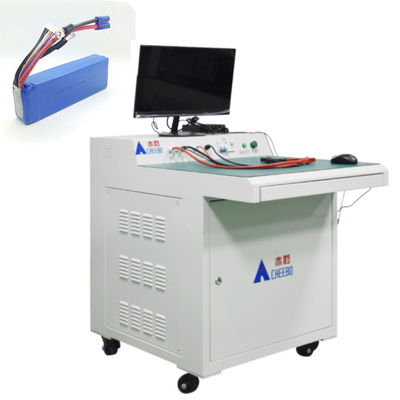

18650 Lithium Battery Cylindrical Cell Voltage Tester With Power 0-300A Charging Current

18650 Lithium Battery Cylindrical Cell Voltage Tester With Power 0-300A Charging Current

  • High Light

    Cylindrical Cell Voltage Tester

    ,

    300A Charging Current Voltage Tester

    ,

    18650 Lithium Battery Voltage Tester

  • Related Industry
    Lithium Ion Battery,Lithium Battery Tester
  • Name
    Battery Testing Machine
  • Internal Resistance Range
    0-2000MQ
  • Weight
    200kg
  • Input Power
    1500W
  • Charging Current
    0-300A
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBCT-100/120
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

18650 Lithium Battery Cylindrical Cell Voltage Tester With Power 0-300A Charging Current

18650 Lithium Battery Finished Cylindrical Professional Cell Voltage Tester



Equipment introduction

The tester mainly has two functions, namely battery production testing mode and calibration mode. Therefore, the device can be used as an electronic load and a comprehensive testing instrument.

The specific testing items include: testing the open circuit voltage of the battery, AC internal resistance of the battery, continuous charging current, continuous charging voltage, continuous discharge current, continuous discharge voltage, charging overcurrent protection current, discharge overcurrent protection voltage, short circuit protection time, overcurrent delay time, and voltage after testing. The device uses an infrared scanner barcode input (SN) to initiate testing, or automatically initiates testing when voltage is detected.


Scope of application: Suitable for lithium-ion batteries equipped with (CH+P+CH-P -) and a full range of power batteries.



Test item
Open circuit battery voltage Battery AC internal resistance Continuous charging current
Overcurrent delay time Continuous discharge voltage Continuous discharge current
Short-circuit protection time Discharge overcurrent protects the current
Post-test voltage Charging current Protects the current



Technical specification
Voltage range :0-100V Resolution :1mV Accuracy :0.1%RD+0.1FS
Internal resistance range :0-2000MQ Resolution :0.001MQ Accuracy :0.1%RD+0.1FS
Charging current :0-300A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Discharge current :0-500A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Overcurrent delay time :0-30S Resolution :2mS Accuracy :0.1%RD+0.1FS
Short circuit time :0-2000uS Resolution :1uS Accuracy :0.1%RD+0.1FS
NTC range :0-100K R1 range :0-100K Equipment operating voltage :AC200V-240V
Maximum working power :5000W(maximum current charge) Maximum working power :5000W(maximum current charge)

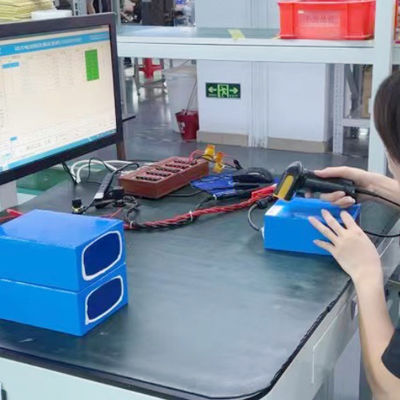

Device operation process description

Battery pack welding completed BMS -- comprehensive tester select the correct test template -- Connect P+/C+/P-/C -- Special crocodile clamp for testing -- Connect NTC special crocodile clamp -- Click Start test



Equipment detail drawing

18650 Lithium Battery Cylindrical Cell Voltage Tester With Power 0-300A Charging Current 018650 Lithium Battery Cylindrical Cell Voltage Tester With Power 0-300A Charging Current 118650 Lithium Battery Cylindrical Cell Voltage Tester With Power 0-300A Charging Current 2
