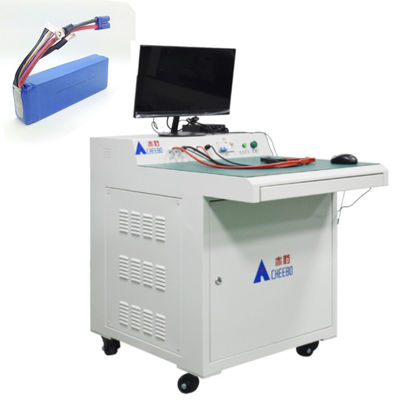

Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment

Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment

  • High Light

    18650 Cell Battery Pack Testing Machine

    ,

    18650 Cell Precision Test Equipment

    ,

    Precision Battery Pack Testing Machine

  • Power
    15KW
  • Internal Resistance Range
    0-2000MQ
  • Weight
    200kg
  • Charging Current
    0-300A
  • Short Circuit Time
    0-2000uS
  • Name
    Battery Testing Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBCT-100/120
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment

Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment



Equipment introduction

The testing instrument has two main functions, namely battery production testing mode and calibration mode. Therefore, this device can be used as an electronic load and a comprehensive testing instrument.

The specific testing items are: testing the battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharge current, continuous discharge voltage, charging over current protection current, discharge over current protection current, short circuit protection time, over current delay time, and voltage after testing. The device uses an infrared scanning gun bar code input (SN) to start the test or automatically starts the test when voltage is detected.

Scope of application: For lithium-ion batteries equipped with (CH+P+CH - P -), all series of power batterie



Test item
Open circuit battery voltage Battery AC internal resistance Continuous charging current
Overcurrent delay time Continuous discharge voltage Continuous discharge current
Short-circuit protection time Discharge overcurrent protects the current
Post-test voltage Charging current Protects the current



Technical specification
Voltage range :0-100V Resolution :1mV Accuracy :0.1%RD+0.1FS
Internal resistance range :0-2000MQ Resolution :0.001MQ Accuracy :0.1%RD+0.1FS
Charging current :0-300A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Discharge current :0-500A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Overcurrent delay time :0-30S Resolution :2mS Accuracy :0.1%RD+0.1FS
Short circuit time :0-2000uS Resolution :1uS Accuracy :0.1%RD+0.1FS
NTC range :0-100K R1 range :0-100K Equipment operating voltage :AC200V-240V
Maximum working power :5000W(maximum current charge) Maximum working power :5000W(maximum current charge)




Device operation process description

Battery pack welding completed BMS -- comprehensive tester select the correct test template -- Connect P+/C+/P-/C -- Special crocodile clamp for testing -- Connect NTC special crocodile clamp -- Click Start test

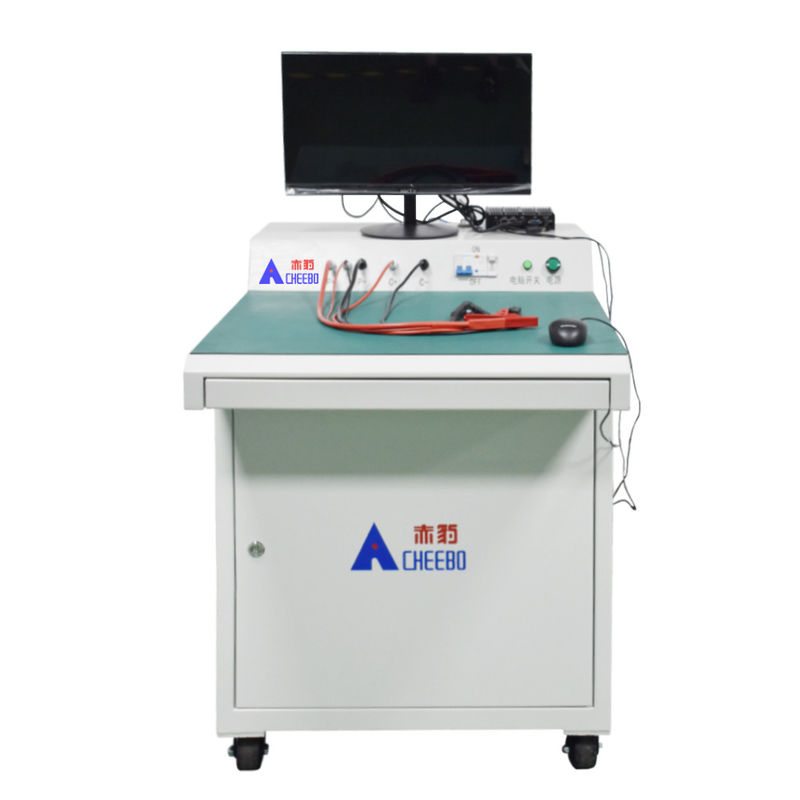

Equipment detail drawing

Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment 0Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment 1Battery Pack Testing Machine Finished 18650 Cell Precision Test Equipment 2
