Battery Pack Testing Machine High Precision And Rapid Test BMS Tester

Battery Pack Testing Machine High Precision And Rapid Test BMS Tester

  • High Light

    High Precision Battery Pack Testing Machine

    ,

    Rapid Test BMS Tester

  • Dimension
    1195mm*990mm*670mm
  • Weight
    145KG
  • Ac Internal Resistance
    0-999mr
  • Voltage Range
    0-150V
  • Type
    Digital
  • Power
    700W
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBZH
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Month

Battery Pack Testing Machine High Precision And Rapid Test BMS Tester

Battery Pack Testing Machine High Precision And Rapid Test Bms Tester



Scope of application

◇ Suitable for safety testing of lithium battery protection boards, testing whether the various functional indicators of the protection board are within a reasonable parameter range, providing a set of testing standards for staff, which is conducive to improving production efficiency, facilitating quality control, and compatible with common types of protection boards on the market, including positive pole strap (split), negative pole strap (split), positive pole charging, negative pole release protection, etc. The product is mainly used for production testing, incoming material testing, quality control, research and development testing, etc.


◇ Performance testing of electric bicycles/motorcycles/steam batteries, electric forklift batteries, robot batteries, electric boat batteries, military batteries, back power batteries, and electric tool batteries.


◇ Support battery capacity testing, battery voltage testing, battery charging and discharging testing, and battery internal resistance testing.

Battery Pack Testing Machine High Precision And Rapid Test BMS Tester 0



Product feature

Data input: It can be initiated through infrared scanning gun input (SN), and the test data is automatically saved to the computer.


Function mode: ① DC electronic load mode; ② Fast mode for battery production testing; ③ Calibration method


Customizable: ① Battery pack temperature sampling function; ② Single stage pressure sampling function of battery pack; ③ Frequency output function; ④ Switch action function; ⑤ MES system connection function ⑥ Step test mode



Function Introduction

The power battery protection board tester has a high degree of automation, a friendly Chinese interface, fast testing speed, and high testing accuracy.


It has 13 performance indicators, including overcharging, overcharging recovery, over discharging, over current (overcharging current and over discharging current), internal resistance, self consumption, short circuit protection, overcharging protection time, over current protection time, over discharging protection time, balanced current, and balanced voltage.


It can meet the testing requirements of ternary lithium batteries, lithium iron phosphate batteries, and cobalt acid battery protection boards in the current market, and has a gear switching function for testing ternary lithium batteries, iron lithium batteries, and cobalt acid batteries.


The instrument requires connection to the computer, and the computer hardware configuration requires a general-purpose office computer. The system generally requires an XP system, and the instrument and computer use the industry standard 232 interface.



Technical specification
Voltage/current resolution 1mV,1mA Equipment operating temperature 0~35℃



Size


1195mm*990mm*670mm Voltage range 0-150V

Weight

145KG Range of internal resistance

0-2000mΩ,
precision 0.01mΩ

Input power AC220V±15% Overcharge current 0-250A,    accuracy ±0.1%
Ambient humidity 0-90%RH Overdischarge current 0-1000A,  accuracy ±0.1%
bient temperature 1-50℃ Short-circuit time 0-2mS,     accuracy ±0.1%.

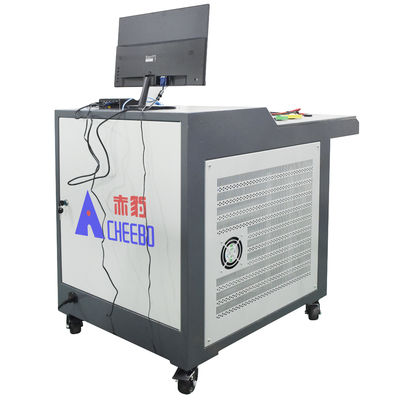

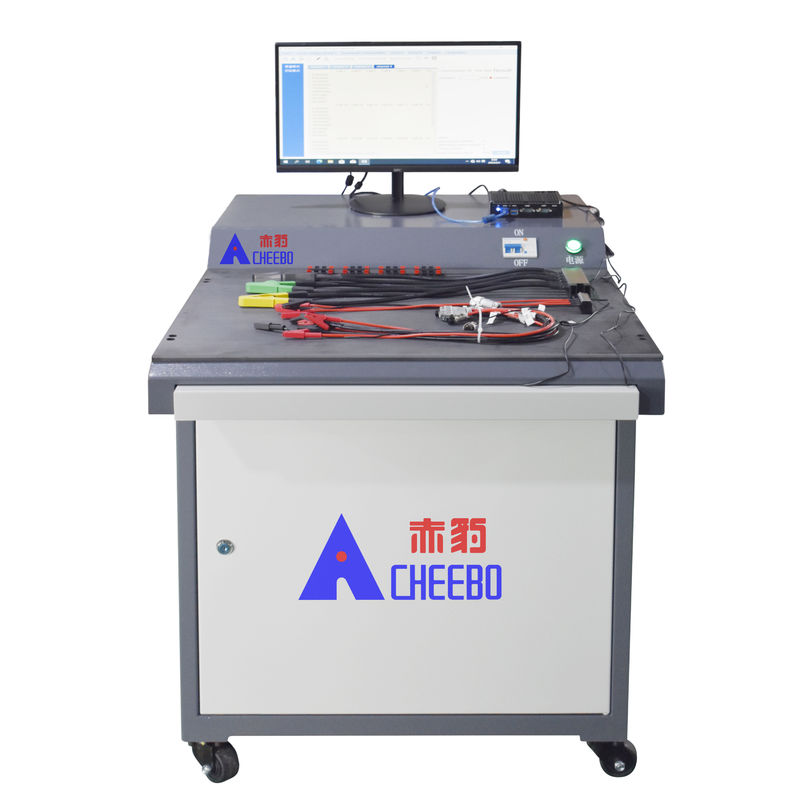

Equipment photo

Battery Pack Testing Machine High Precision And Rapid Test BMS Tester 1

Battery Pack Testing Machine High Precision And Rapid Test BMS Tester 2

Battery Pack Testing Machine High Precision And Rapid Test BMS Tester 3
