Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester

Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester

  • High Light

    Battery Pack Testing Machine 700W

    ,

    Short Circuit Battery BMS Tester

  • Power
    700W
  • Charge/discharge Voltage
    5000mV ~102000mV
  • Current Accuracy
    ±(0.1%FS+0.1%RD)
  • Voltage Accuracy
    ±(0.1%FS+0.1%RD)
  • Size
    800*1100*960mm
  • Weight
    200KG
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBZH
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Month

Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester

Battery Pack Testing Machine Power Battery BMS Tester Short Circuit Test


Scope of application

◇ Applied to the safety test of lithium battery protection board, detect whether the functional indicators of the protection board are within a reasonable parameter range, provide a set of testing standards for the staff, which is conducive to improving production efficiency, convenient quality control, compatible with the common types of protection board on the market, positive electrode with the port (split), negative electrode with the port (split), positive electrode charge and negative electrode release protection, etc. The product is mainly used in production testing, incoming material testing, quality control, R & D test and so on.

◇ Electric bicycle/motorcycle/steam battery, electric forklift battery, robot battery, electric boat battery, military battery, back power battery, power tool battery performance test.
◇ Support battery capacity test, battery voltage test, battery charge and discharge test and battery internal resistance test.
Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester 0


Product feature

Data input: It can be started by infrared scanning gun input (SN), and the test data is automatically saved to the computer.
Function mode: ① DC electronic load mode; ② Battery production test fast mode; ③ Correction mode
Customizable: ① battery pack temperature sampling function; ② battery pack single section pressure sampling function; ③ frequency output function; ④ switch action function; ⑤MES system connection function ⑥ step test mode


Function Introduction

Power battery protection board tester, high degree of automation, friendly Chinese interface, fast test speed, high test accuracy.

It has 13 performance of over charge, over charge recovery, over discharge, over discharge recovery, over current (over charge current and over discharge current), internal resistance, self-consumption, short circuit protection, over charge protection time, over current protection time, over discharge protection time, balanced current and balanced voltage.

It can meet the test of ternary lithium battery, lithium iron phosphate battery and cobalt acid battery protection board on the market at present, and has the test gear switching function of ternary lithium battery, lithium iron battery and cobalt acid battery.

The instrument is required to be connected to a computer, and the computer hardware configuration is required to be a general office computer, the system is generally required to be an XP system, and the instrument and computer adopt the 232 interface of the industry standard.


Technical specification
Voltage/current resolution1mV,1mAEquipment operating temperature0~35℃



Size


1195mm*990mm*670mmVoltage range0-150V

Weight

145KGRange of internal resistance

0-2000mΩ,
precision 0.01mΩ

Input powerAC220V±15%Overcharge current0-250A,    accuracy ±0.1%
Ambient humidity0-90%RHOverdischarge current0-1000A,  accuracy ±0.1%
bient temperature1-50℃Short-circuit time0-2mS,     accuracy ±0.1%.

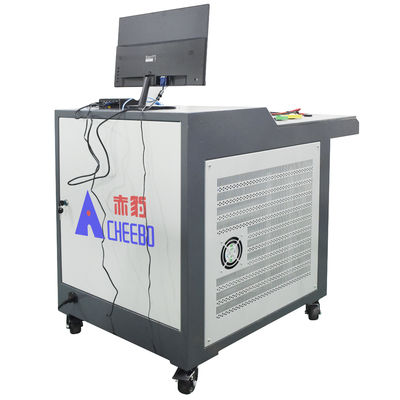

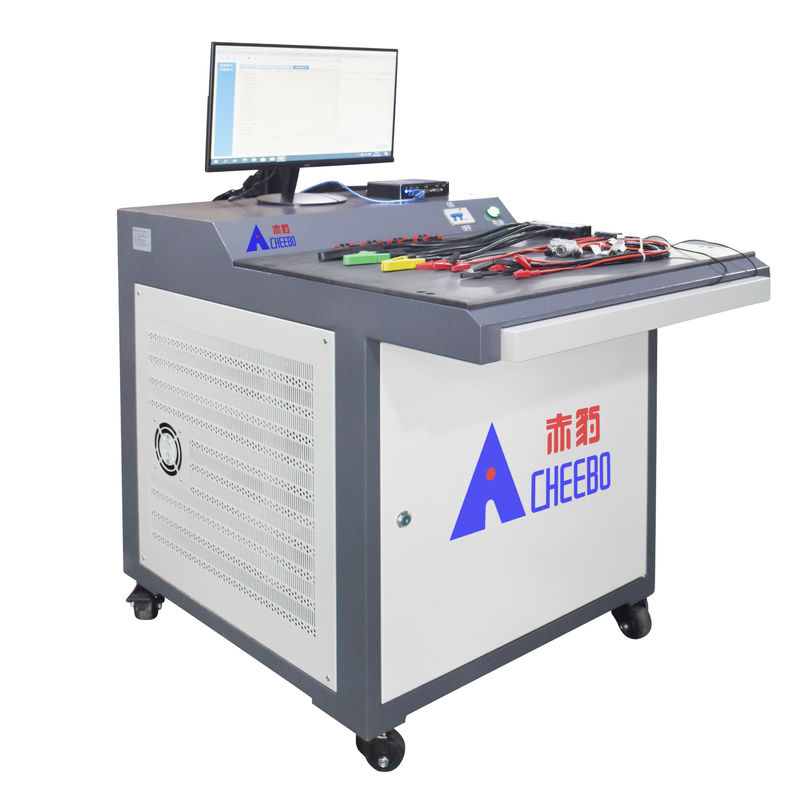

Equipment photo
Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester 1
Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester 2
Battery Pack Testing Machine 700W Power Short Circuit Battery BMS Tester 3
