Battery Test Machine
>
Multifunction Lithium Battery Comprehensive Tester Battery Pack Testing Machine

Multifunction Lithium Battery Comprehensive Tester Battery Pack Testing Machine

Brand Name: CHEEBO Technology
Model Number: CBCS
MOQ: 1 set
Price: NEGOTIABLE
Packaging Details: Marine moisture-proof wooden case
Detail Information
Place of Origin:
China
Certification:
CE certification
Place Of Origin:
Guangdong, China
Product Name:
Finished Battery Performance Tester
Open Circuit Voltage:
10-100V
AC Internal Resistance Test:
0-1000mΩ
Discharge Starting Voltage:
0-100V
Discharge Time:
0-60S
Supply Ability:
50 Set/Sets per Month
Highlight:

Lithium Battery Comprehensive Tester

,

Multifunction Battery Pack Testing Machine

Product Description

Multifunction Lithium Battery Comprehensive Tester Battery Pack Testing Machine



Application scope of the product



Suitable for finished battery pack test, finished battery comprehensive test equipment is a fast and accurate test of finished battery performance



equipment. The main test items are: open circuit voltage, AC internal resistance, discharge test, discharge overcurrent test, short circuit protection



test, charging test, charging protection test.



Equipment introduction

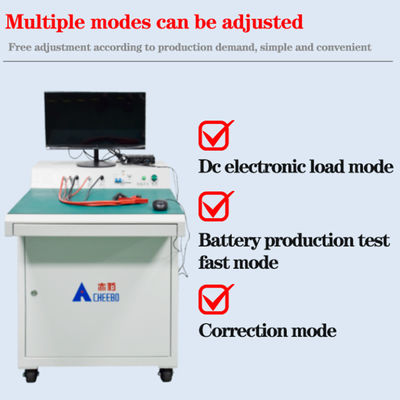

The function of this test instrument is divided into two parts, which are battery production test mode and calibration mode. Therefore, the device can be used as an electronic load and comprehensive test instrument.

The specific test items are: test battery open circuit voltage, battery AC internal resistance, continuous charge current, continuous charge voltage, continuous discharge current, continuous discharge voltage, charging overcurrent protection current, discharging overcurrent protection current, short circuit protection time, overcurrent delay time, and test voltage. The equipment uses the infrared scanning gun bar code input (SN) to start the test or automatically starts the test when the voltage is detected.



Scope of application: For lithium-ion batteries equipped with (CH+ P+ CH-P -), all series of power batteries.

Technical specification



Technical parameters of tester
Voltage range :0-100V Resolution :1mV Accuracy :0.1%RD+0.1FS
Internal resistance range :0-2000MQ Resolution :0.001MQ Accuracy :0.1%RD+0.1FS
Charging current :0-300A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Discharge current :0-500A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Overcurrent delay time :0-30S Resolution :2mS Accuracy :0.1%RD+0.1FS
Short circuit time :0-2000uS Resolution :1uS Accuracy :0.1%RD+0.1FS
NTC range :0-100K R1 range :0-100K Equipment operating voltage :AC200V-240V
Maximum working power :5000W(maximum current charge) Maximum working power :5000W(maximum current charge)

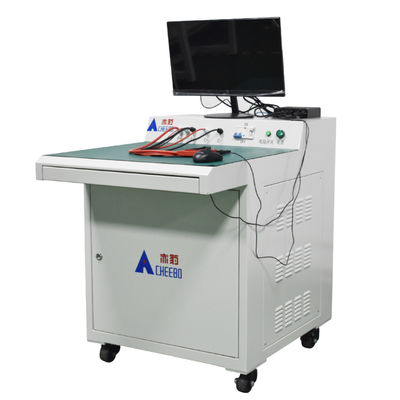

Multifunction Lithium Battery Comprehensive Tester Battery Pack Testing Machine 0

Multifunction Lithium Battery Comprehensive Tester Battery Pack Testing Machine 1



Equipment operation process description



The battery pack is welded to complete the protection plate -- Select the correct test template for the comprehensive tester -- Connect the



P+/C+/P-/ C-test special alligator clip -- Connect the NTC special alligator clip -- click to start the test
