CE Battery Pack Testing Machine Lithium Battery Function Comprehensive Tester

CE Battery Pack Testing Machine Lithium Battery Function Comprehensive Tester

  • High Light

    CE Battery Pack Testing Machine

    ,

    Lithium Battery Function Comprehensive Tester

  • Product Name
    Battery Comprehensive Tester
  • Color
    Grey
  • Type
    Digital
  • Communication Mode Of Upper Computer
    Serial Port
  • No-load Voltage Measurement Range
    10-100V
  • Equipment Size
    1050mm*450mm*980mm
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBCS
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

CE Battery Pack Testing Machine Lithium Battery Function Comprehensive Tester

Battery Pack Testing Machine Lithium Battery Function test Comprehensive Tester





Application scope of the product



Suitable for testing finished battery packs, the comprehensive testing equipment for finished batteries is a device that quickly and accurately tests



the performance of finished batteries. The main testing items include: open circuit voltage, AC internal resistance, discharge test, discharge



overcurrent test, short circuit protection test, charging test, and charging protection test.



Equipment introduction

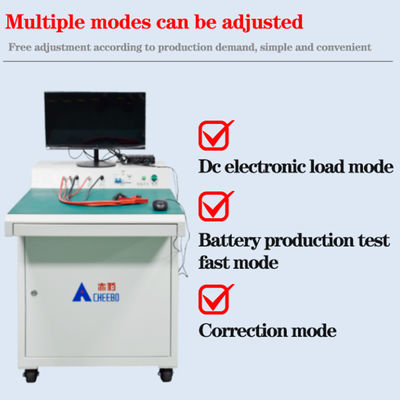

● The testing instrument has two main functions, namely battery production testing mode and calibration mode. Therefore, this device can be used as an electronic load and a comprehensive testing instrument.


● The specific testing items are: testing the battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharge current, continuous discharge voltage, charging overcurrent protection current, discharge overcurrent protection current, short circuit protection time, overcurrent delay time, and voltage after testing. The device uses an infrared scanning gun barcode input (SN) to start the test or automatically starts the test when voltage is detected.


● Scope of application: For lithium-ion batteries equipped with (CH+P+CH - P -), all series of power batteries.



Technical specification



Technical parameters of tester
Voltage range :0-100V Resolution :1mV Accuracy :0.1%RD+0.1FS
Internal resistance range :0-2000MQ Resolution :0.001MQ Accuracy :0.1%RD+0.1FS
Charging current :0-300A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Discharge current :0-500A Resolution :0.001A Accuracy :0.1%RD+0.1FS
Overcurrent delay time :0-30S Resolution :2mS Accuracy :0.1%RD+0.1FS
Short circuit time :0-2000uS Resolution :1uS Accuracy :0.1%RD+0.1FS
NTC range :0-100K R1 range :0-100K Equipment operating voltage :AC200V-240V
Maximum working power :5000W(maximum current charge) Maximum working power :5000W(maximum current charge)



Equipment operation process description



The battery pack is welded to complete the protection plate -- Select the correct test template for the comprehensive tester -- Connect the



P+/C+/P-/ C-test special alligator clip -- Connect the NTC special alligator clip -- click to start the test

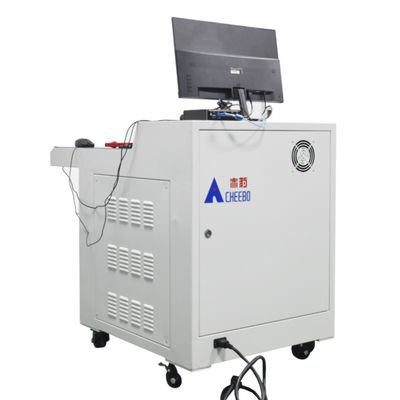

CE Battery Pack Testing Machine Lithium Battery Function Comprehensive Tester 0

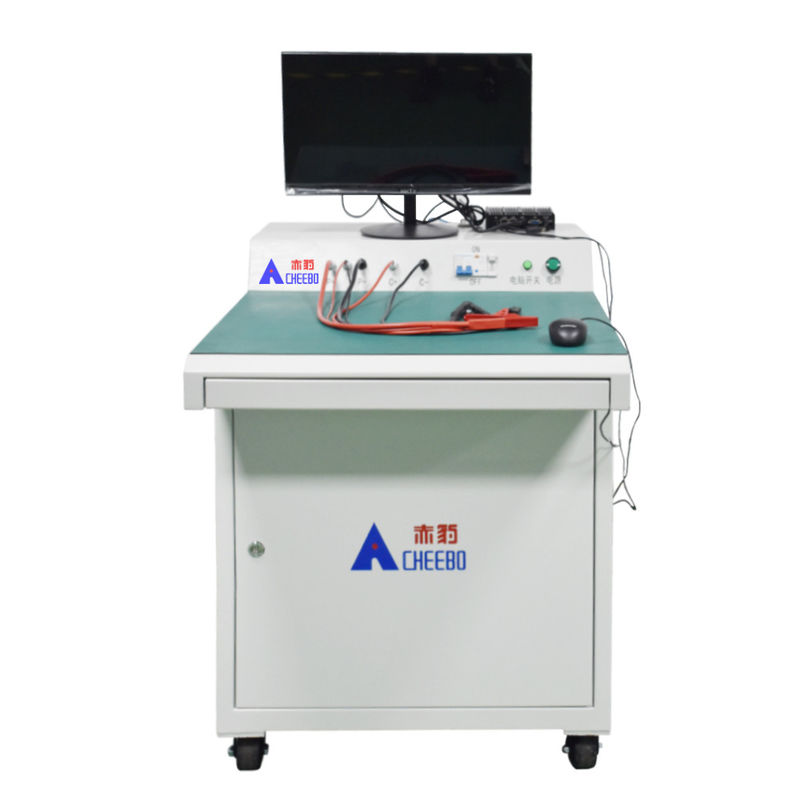

CE Battery Pack Testing Machine Lithium Battery Function Comprehensive Tester 1
