Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine

Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine

  • High Light

    Battery Labeling Machine Assembly

    ,

    21700 Battery Labeling Machine

    ,

    21700 Battery Paper Sticking Machine

  • Compatible Model
    18650/21700
  • Control Mode
    Upper Computer
  • Working Mode
    Automatic Continuous
  • Mechanical Size
    1275*860*1524MM
  • Mechanical Weight
    150KG
  • Product Name
    Paste Positive Insulator Paper Paste Machine
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBTZ-1821
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine

Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine


Equipment introduction



● This sticker machine is controlled by PLC, stepper motor and cylinder to complete the function of 18650/21700/21650 finished battery cell cathode sticking barley insulation paper.


● The number of cylindrical finished cells can be completed per hour about 4,000.


● It adopts 7-inch high-definition touch screen to monitor the running status of the machine in real time.


● The cylinder drive cutter is used for stamping, 4 cells are punched at a time, and the slices are made of high-speed steel, which has high wear resistance, good quality and high production efficiency.


● Sticker and stamping are stable, the placement consistency is high, and the defective rate is low.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


● With the function of clearing tailings, you can empty tailings with one click.


● Compatible materials: barley paper, fast bus paper, glutinous rice paper, RET protective sticker, etc.


● The mechanical structure design is simple and generous, and the system performance is stable.



Technical specification



Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker




Debugging project
  1.  Wear highland barley paper steps
  2.  Adjust the press cutter
  3.  Adjustable center position
  4.  Loading step demonstration
  5.  On-line debugging
  6.  Replace stamping tool debugging
Function Introduction



 1.Loading mechanism

Ensure that the adhesive material is not affected by the environment. The loading operation is simple.



Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine 0

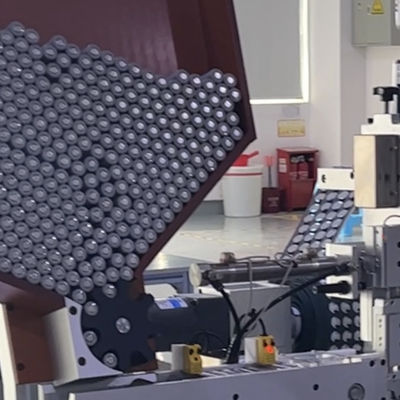

 2.Large hopper

Large feeding hopper, slope type hopper, suitable for the whole box feeding, feeding convenient. One-time 300PCS18650 battery cell.



Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine 1



 3.Hd touch screen



7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.



Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine 2

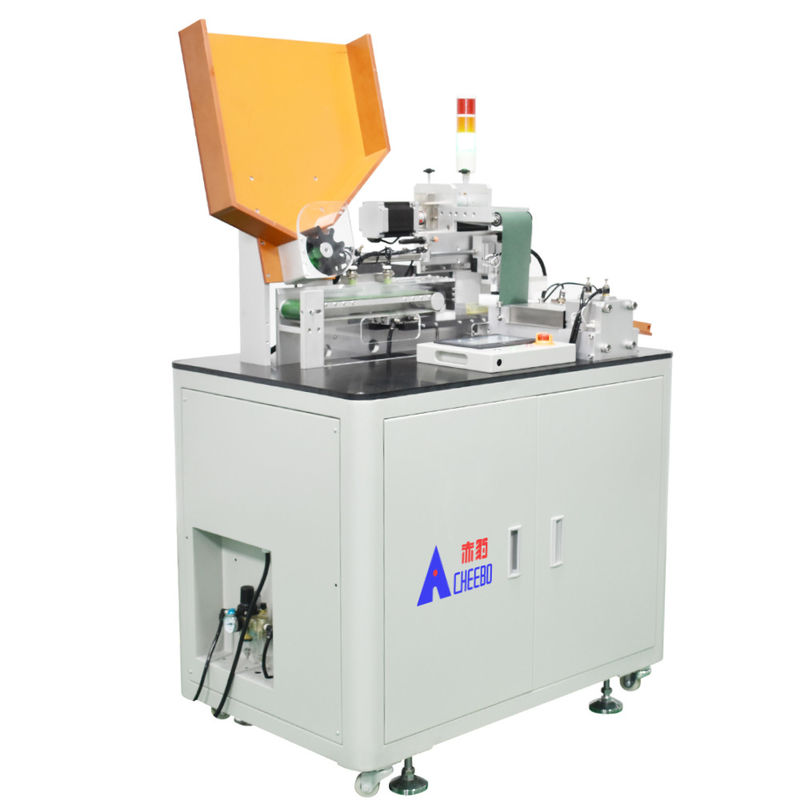

Appearance structure

Battery Labeling Machine Battery Pack Assembly 18650 Sticker Machine 3

FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information

1) Battery type?

2) Which battery type do you want to be compatible with?

3) Paste materials.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
