High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly

High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly

  • High Light

    High Consistency Lithium Battery Testing Machine

    ,

    High Consistency Battery Sorting Machine

    ,

    Insulation Use Battery Sorting Machine

  • Hopper Material
    Bakelite
  • Control Mode
    PLC+ Host Computer
  • Working Mode
    Stepper Motor + Pneumatic
  • Transmission Mode
    Mechanical Clamping
  • Applicable Size
    18-21(Diameter)
  • Product Name
    Cell Sticker Machine
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBTZ-1821
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly

High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly


Equipment introduction



● This sticker machine uses PLC to control the stepper motor and cylinder to complete the function of pasting highland barley insulating paper on the positive pole of 18650/21700 and other finished cells.


● The number of finished cylindrical cells is about 4000 per hour.


● The 7-inch HD touch screen is used to monitor the running status of the machine in real time.


● The cylinder-driven cutter is used for stamping, four cells are stamped at one time, and the slices are made of high-speed steel, with high wear resistance, good quality of finished products and high production efficiency.


● The sticker and stamping are stable, the position consistency of the patch is high and the defect rate is low.


● Fault information reminder function, fault acousto-optic alarm, rapid fault diagnosis.


● It has the function of cleaning tailings, which can be emptied with one button.


● Compatible materials: highland barley paper, fast bar paper, glutinous rice paper, RET protective paste, etc.


● The mechanical structure design is simple and generous, and the performance of the system is stable.



Appearance structure

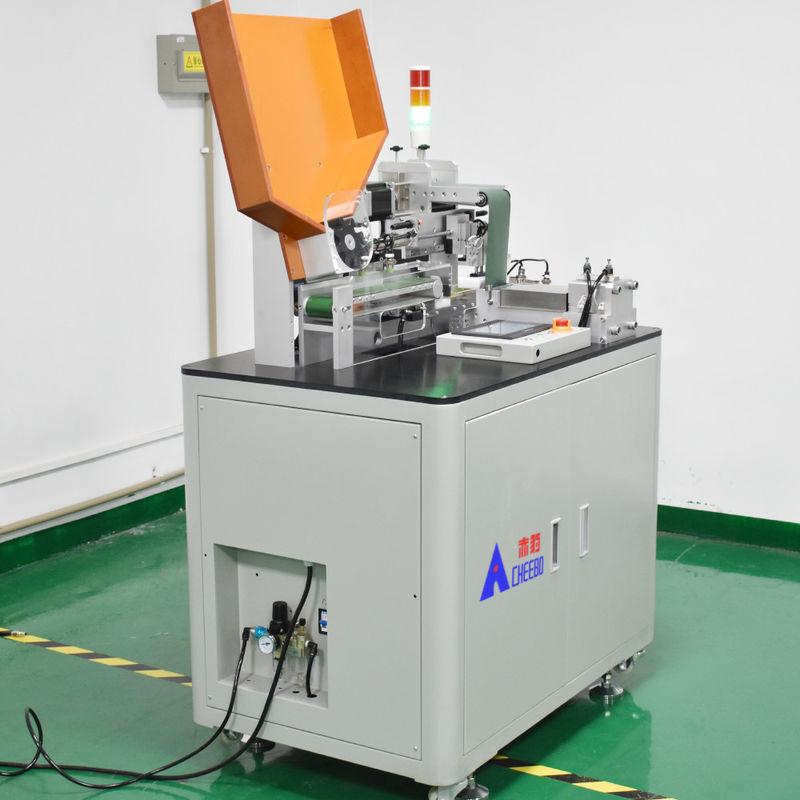

High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly 0

Technical specification



Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker




Function Introduction

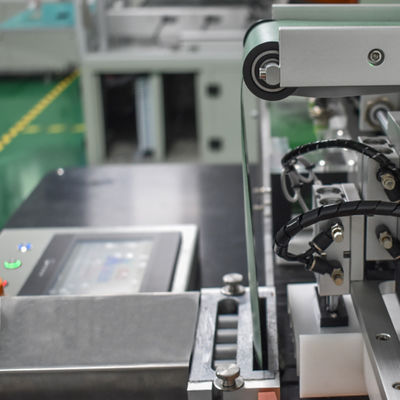

 1.High speed steel cutter

The stamping die is non-adhesive and firmly pasted. The paste position is consistent and does not affect the subsequent welding procedure. Paste 4 cells at one time, high production efficiency



High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly 1



 2.Loading mechanism

Ensure that the adhesive material is not affected by the environment. The loading operation is simple.





High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly 2



 2.Hd touch screen

7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.



High Consistency Lithium Battery Labeling Machine Cylindrical Cell Assembly 3



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information

1) Battery type?

2) Which battery type do you want to be compatible with?

3) Paste materials.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
