Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type

Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type

  • High Light

    Battery Labeling Machine 21650

    ,

    Sticker Type Battery Labeling Machine

    ,

    Vertical Labeling Machine 21650

  • Key Selling Points
    Productive Efficiency
  • Packaging Material
    Marine Wooden Case
  • Utilization Rate
    ≥90%
  • Cutting Material
    High Speed Steel
  • Receiving System
    Automatic
  • Product Name
    Paste Positive Insulator Paper Paste Machine
  • Place of Origin
    China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBTZ-1821
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type

Automation Equipment Cylindrical Battery Insulation Paper Sticker


Equipment introduction



● This sticker machine is controlled by a PLC to complete the function of applying highland barley insulation paper to the positive electrode of 18650/21700/21650 finished battery cells, such as stepper motors and cylinders.


● Approximately 4000 finished cylindrical cells can be completed per hour.


● Adopting a 7-inch high-definition touch screen, real-time monitoring of machine operation status.


● Using a cylinder driven cutting knife for stamping, four battery cells are punched at once, and the slices are made of high-speed steel material, with high wear resistance, good product quality, and high production efficiency.


● Sticker and stamping are stable, with high consistency in placement and low defect rate.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


● With the function of clearing tailings, it can clear tailings with one click.


● Compatible materials: highland barley paper, express paper, Oblaat, RET protective sticker, etc.


● The mechanical structure design is simple and generous, and the system performance is stable.



Technical specification



Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker

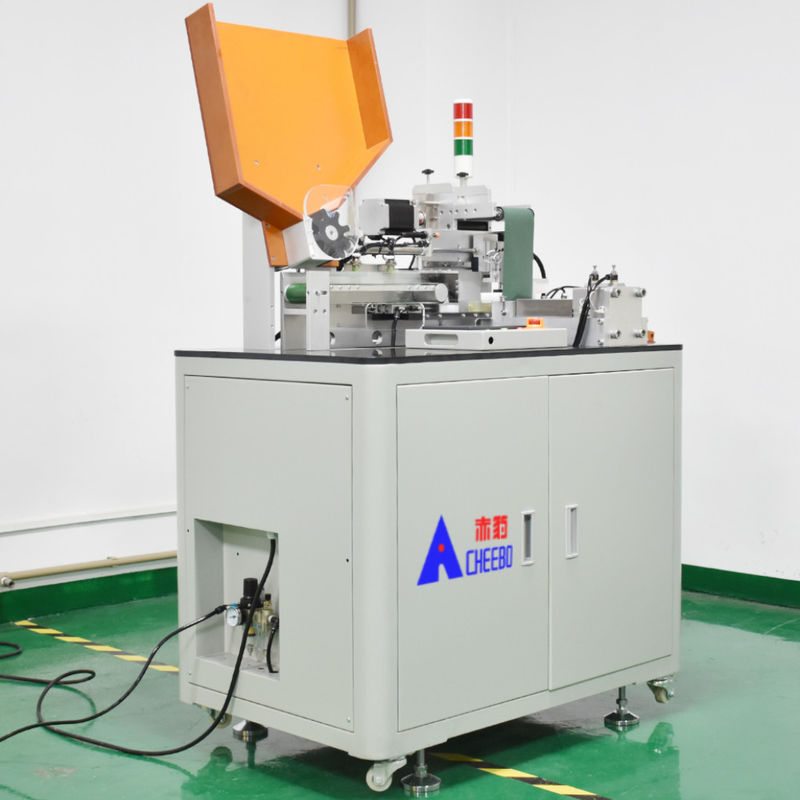

Appearance structure

Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type 0

Debugging project
  1.  Wear highland barley paper steps
  2.  Adjust the press cutter
  3.  Adjustable center position
  4.  Loading step demonstration
  5.  On-line debugging
  6.  Replace stamping tool debugging
Device action flow description



Manually load the battery into the hopper - the wave wheel rotates out of the battery - the belt moves the battery - the cylinder launches the battery



team - the battery positioning and pressing - the stepping battery drives the whole roll of highland barley paper to move - the cylinder paste



highland barley paper - waste recycling - the finished battery to the feeding tank - the human tooling box



(Operating parameters can be freely set according to actual requirements)



Function Introduction



1.Hd touch screen

7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.



Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type 1



2.High speed steel cutter

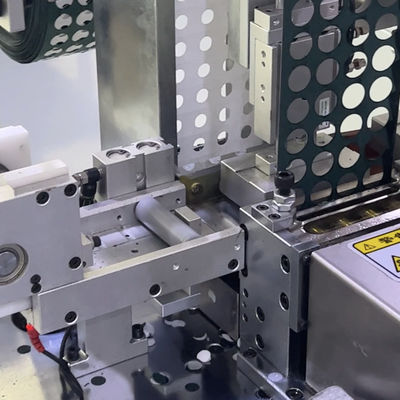

The stamping die is non-adhesive and firmly pasted. The paste position is consistent and does not affect the subsequent welding procedure. Paste 4 cells at one time, high production efficiency



Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type 2



3.Large hopper

Large feeding hopper, slope type hopper, suitable for the whole box feeding, feeding convenient. One-time 300PCS18650 battery cell.



Vertical Automatic Battery Labeling Machine 21650 Cylindrical Sticker Type 3
