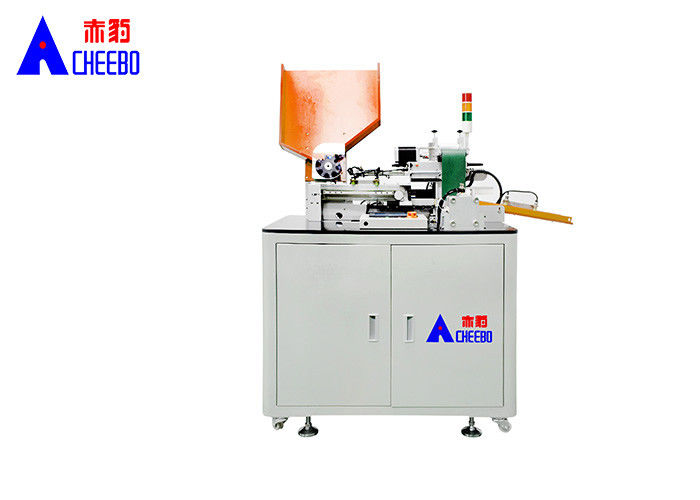

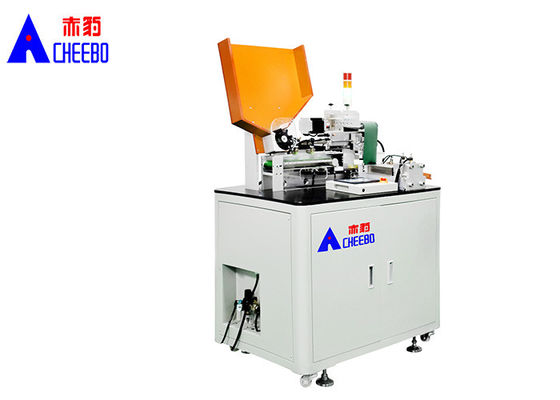

Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency

Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency

  • High Light

    Insulating Battery Labeling Machine

    ,

    Battery Labeling Machine 70PPM

    ,

    Paper Pasting Machine 70PPM

  • Product Name
    Paste Positive Insulator Paper Paste Machine
  • Applicable Battery Specifications
    18650/21700/21650
  • Production Efficiency
    60-70PPM
  • Maximum Impact Speed
    99.99%
  • Working Air Source
    0.5-0.8Mpa
  • Place of Origin
    Shenzhen,China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBTZ-1821
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency

Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency


Equipment introduction

● This paper paste machine is controlled by PLC stepper motor and cylinder to complete the function of 18650/21700/21650 finished core positive electrode paste highland barley insulation paper.


● The number of finished cylindrical cells can be completed about 4000 units per hour.


● 7 inch HD touch screen is used to monitor the machine running status in real time.


● The cylinder is used to drive the cutting knife for stamping, and 4 electric cells are stamped at one time. The slice is made of high-speed steel material, which has high wear resistance, good quality and high production efficiency.


● Sticker, stamping stable, patch position consistency is high, low defect rate.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


● With the function of clearing the end material, you can empty the end material with one key.


● Compatible materials: highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc.


● The mechanical structure design is simple and elegant, and the system performance is stable.



Technical specification
Production efficiency 60-70PPM Air source specification 1/CFM
Applicable battery specifications 18650/21700/21650 Pass rate ≥95%
Sticker efficiency ≥60PPM Transmission mode Mechanical hand
Compatible material Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc Maximum impact speed 99.99%
Work method Stepper motor + pneumatic Machine Dimensions 1275*860*1524MM
structural material aluminium alloy Machine Weight 150KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical cell sticker



Function Introduction



 1. High speed steel cutter

The stamping die is non-adhesive and firmly pasted. The paste position is consistent and does not affect the subsequent welding procedure. Paste 4 cells at one time, high production efficiency



Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency 0



 2. Hd touch screen

7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.



Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency 1



 3. Induction device

Automatically sensing the location of the battery cell, such as the detection of the battery cell does not reach or other conditions, the equipment automatically alarms and stops running.Manual adjustment can continue production.



Battery Labeling Machine 18650/21700 Positive Sticker 60PPM Efficiency 2



Device action flow description



Manually load the battery into the hopper -- the wave wheel rotates out of the battery -- the belt moves the battery -- the cylinder pushes out the



battery team -- the battery positioning and pressing -- the stepping battery drives the whole roll of highland barley paper to move -- the cylinder



paste highland barley paper -- the waste recycling -- the finished battery to the feeding tank -- the operating parameters of the human tool box can



be freely set according to the actual requirements of customers



Matters needing attention
  1.  Wear highland barley paper steps
  2.  Adjust the press cutter
  3.  Adjustable center position
  4.  Loading step demonstration
  5.  On-line debugging
  6.  Replace stamping tool debugging
Service process



Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery



After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information

1) Battery type?

2) Which battery type do you want to be compatible with?

3) Paste materials.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
