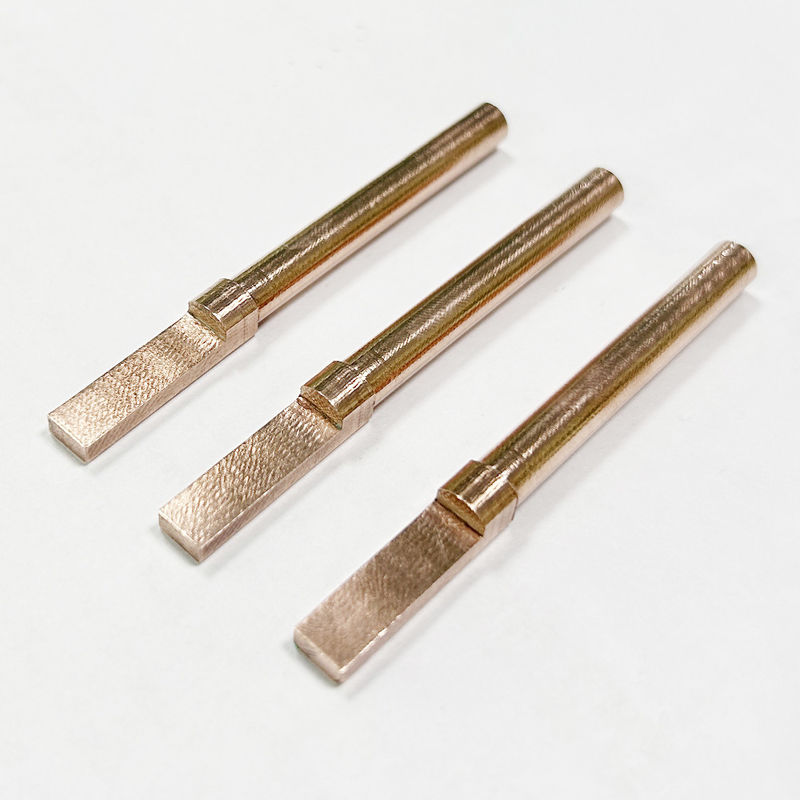

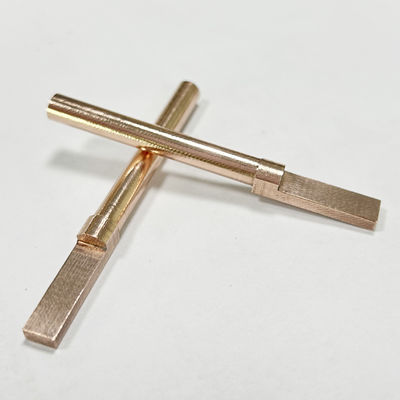

Welding Needle With Square Head

Welding Needle With Square Head

  • High Light

    Welding Needle With Square Head

    ,

    Raised Point Welding Needle

    ,

    Spot Welding Rods With Square Head

  • Needle Type
    Raised Point
  • Product Name
    Spot Welding Needle
  • Diameter
    6.0MM (customizable)
  • Length
    80/100/120MM
  • Conductivity
    80% LACS
  • Containing Al2O3
    1.1wt%
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    C15760
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Foam and cardboard boxes
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 PCS per day

Welding Needle With Square Head

6.0*80*2.0MM Square Head Convex Spot Welding Needle Battery Welding Accessories


Product introduction

● Product Name: Aluminum Oxide Copper Spot Soldering Pin, Touch Soldering Pin


● Material: Domestic material, Taiwan material, Japanese material, American material.


● Needle type: Off-center flat head, Off-center ball head, Same-center ball head, Straight baseball head, Straight bar, Other customized
All of our soldering pins are made of aluminum oxide copper.


● Resistance welding material--Nanometer alumina diffusion strengthened copper (aluminum oxide copper)


● Resistance welding material expert nano alumina diffusion reinforced copper referred to as (alumina copper) alumina copper - designed for spot welding of galvanized steel, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass, etc.


● Alumina copper material has the advantages of anti-softening, ablation resistance, long service life, and high number of spot welds.


● Electrode life is more than 5 times that of ordinary chrome zirconium copper, reducing electrode downtime and grinding time.


● Battery spot welder adopts alumina copper material welding needle, which improves the efficiency of automatic welding production line, and does not bond the electrode when welding coated metal, which provides a terminal solution for welding galvanized steel, and is an indispensable electrode material for welding galvanized steel, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass and so on.


● The softening temperature is up to 930°C, which is relatively high among copper alloys, but lower than tungsten copper (1000°C)


● Aluminum oxide copper brazing pins have an electrical conductivity of up to 85% IACS, with heat dissipation performance between tungsten copper (220 W/m-k) and pure copper (390 W/m-k).


● Alumina brazing pins are suitable for spot welding between nickel strips, nickel-permeable steel plates, coated steel strips and other materials in battery production. It is used in the production of batteries such as nickel gas batteries, nickel pot batteries, polymer batteries, lithium batteries, etc., spot welding of connectors, cores and extractors.



Product specification



Place of origin Guangdong, China Processing customization Yes
Operating temperature 25℃ Type Through/Eccentric/convex (optional)
Model number C15760 Length 100MM (customizable)
Melting point 930℃ Diameter 1.7MM (customizable)
Material Aluminum oxide copper Scope of application Metal welding



Features
  1.  Avoid sticky electrode phenomenon
  2.  No yellowing of the welding area, beautiful welding joints
  3.  Avoid the occurrence of false welding phenomenon
  4.  Reduce the phenomenon of welding sparks
  5.  Excellent electrical and thermal conductivity and good high temperature performance
  6.  Passed the EU ROHS environmental certification standard
Product Parameter



Model Al2O3 content(wt%) HRB Electrical conductivity(%lACS) Strength of extension(MPa)
C15715 0.3 65 94 480
C15740 0.6 74 85 540
C15760 1.1 85 80 620



Function Introduction

 1.  Seiko Production
Deep processing, smooth surface, stable welding point without virtual welding, solid welding point
Welding Needle With Square Head 0

 2.  High quality material
imported alumina copper material is more wear resistant to burning, longer service life
Welding Needle With Square Head 1

 3.  Professional customization
Years of processing experience combined with the actual situation of customers to meet customer customization requirements
Welding Needle With Square Head 2
